Integrating webhooks in growth scenarios

Introduction

Webhook is a function that can send events about users passing a specific node in the Growth Scenario to the customers server.Through this function, customers can also receive data about users passing through specific nodes within the Growth Scenario.

Webhook settings

To set up webhooks

1. Setting rules when webhook request fails
2. Webhook Template Creation and Settings

You need to go through 2 steps:

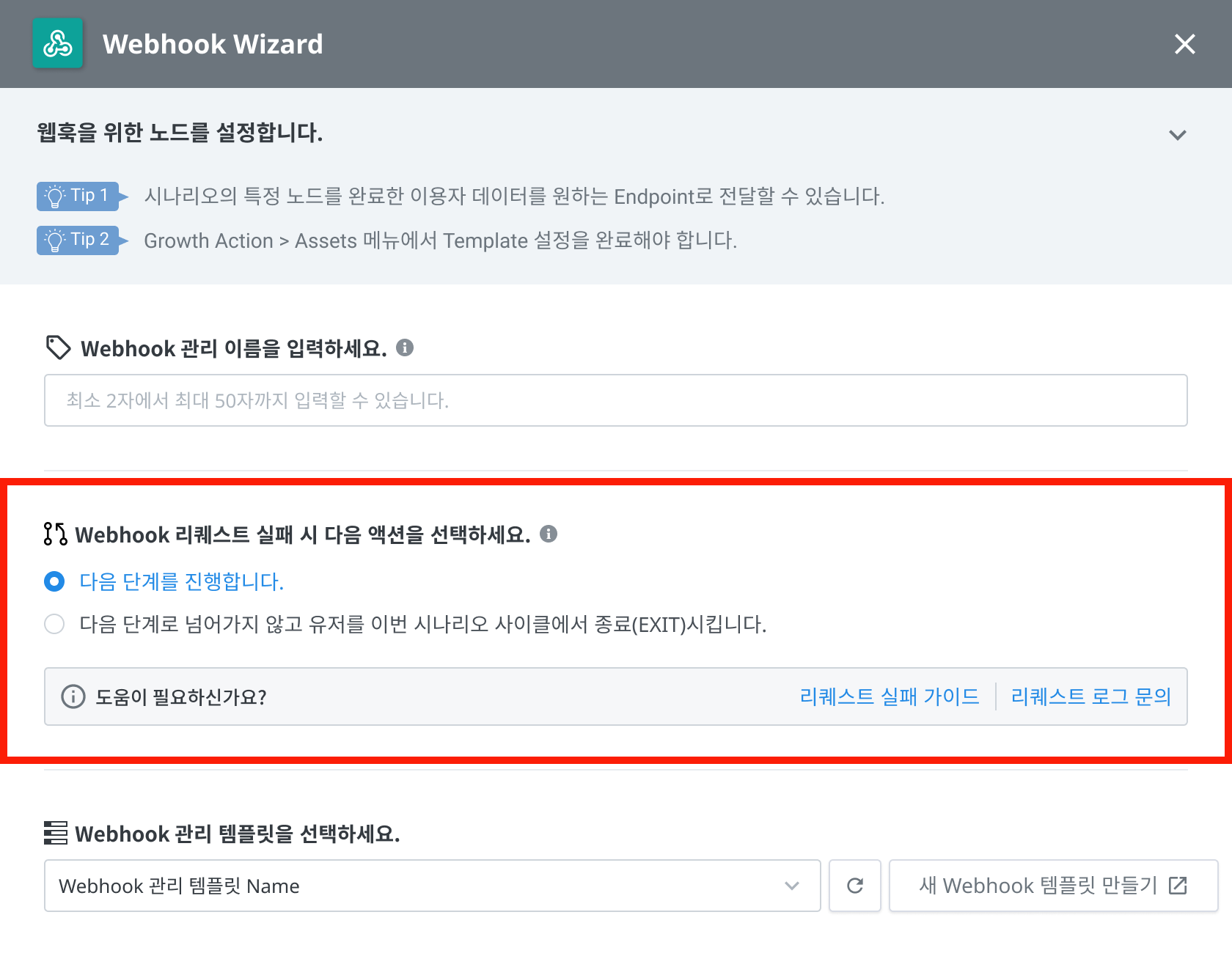

Setting rules when webhook request fails

When a webhook request fails, set whether the failed user can participate in the next step.

• Proceed to the next step.
  • Users whose webhook request fails are moved to the next step.
• Exit the user from this scenario cycle without moving on to the next step.
  • Users whose webhook request fails are terminated without moving to the next step.
  After exiting, the user can re-enter the scenario.

Failure and retry are determined depending on the response code returned by the server when WebHook.

Retries are attempted up to 3 times at 30 second intervals.

Retry policy after request failure

Response Code	Received or not	Retry?
20x (success)	Yes	-
30x (redirection)	No
408 (request timeout)	No	Yes
429 (rate limited)	No	Yes
Other 4xx (client error)	No
5xx (server error)	No	Yes

Webhook Template Creation and Settings

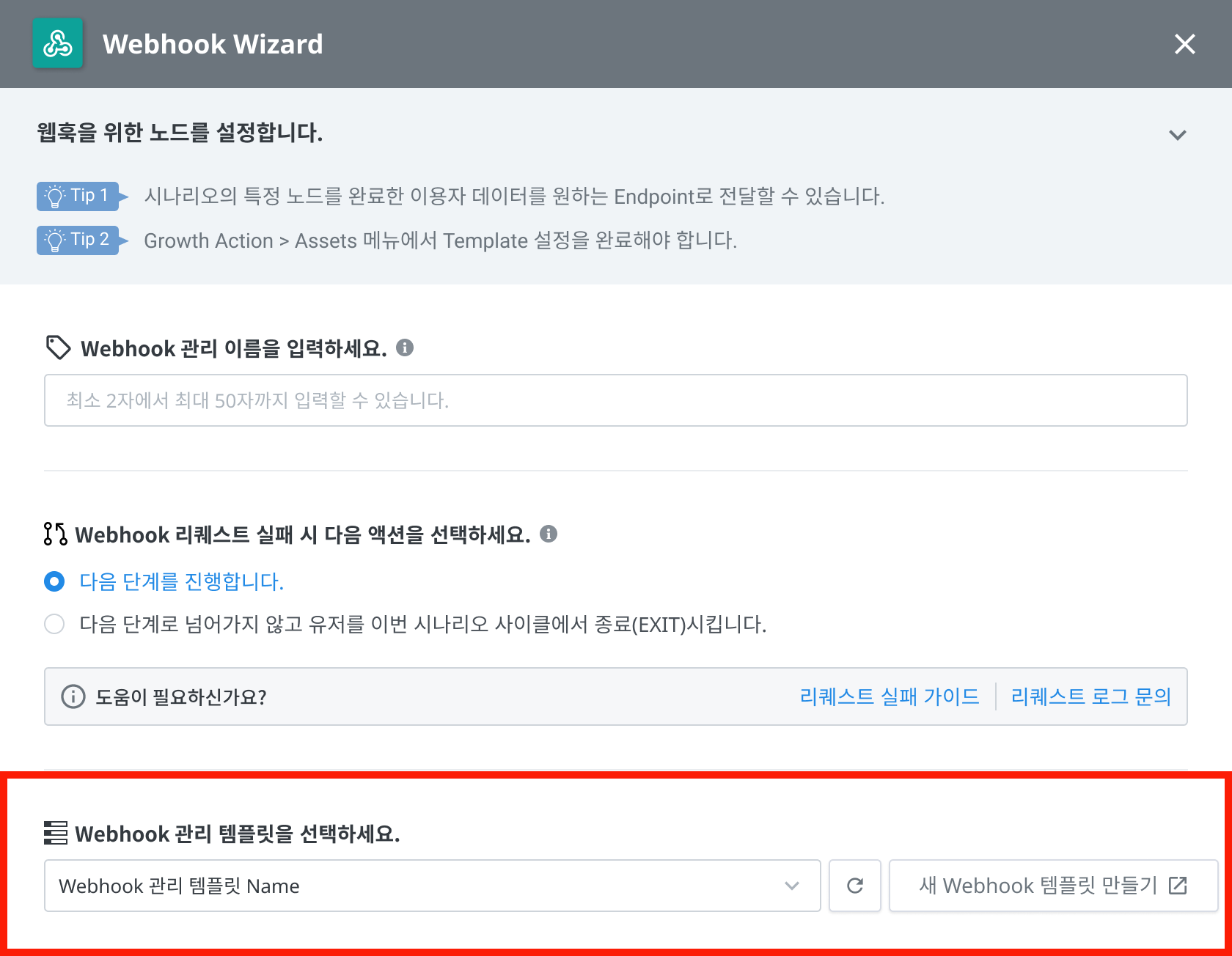

To create a webhook template, select Create a new webhook template in the Webhook Wizard.

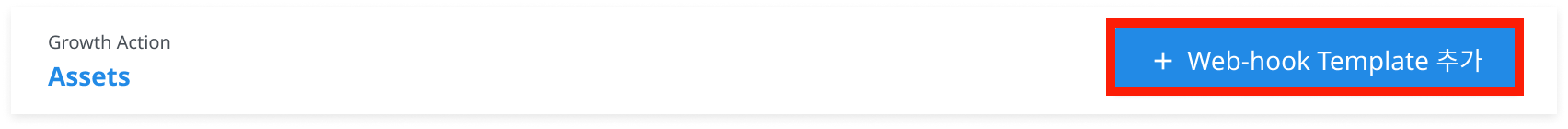

Click the “Add Webhook Template” button in the upper right corner of the Webhook Template list screen.

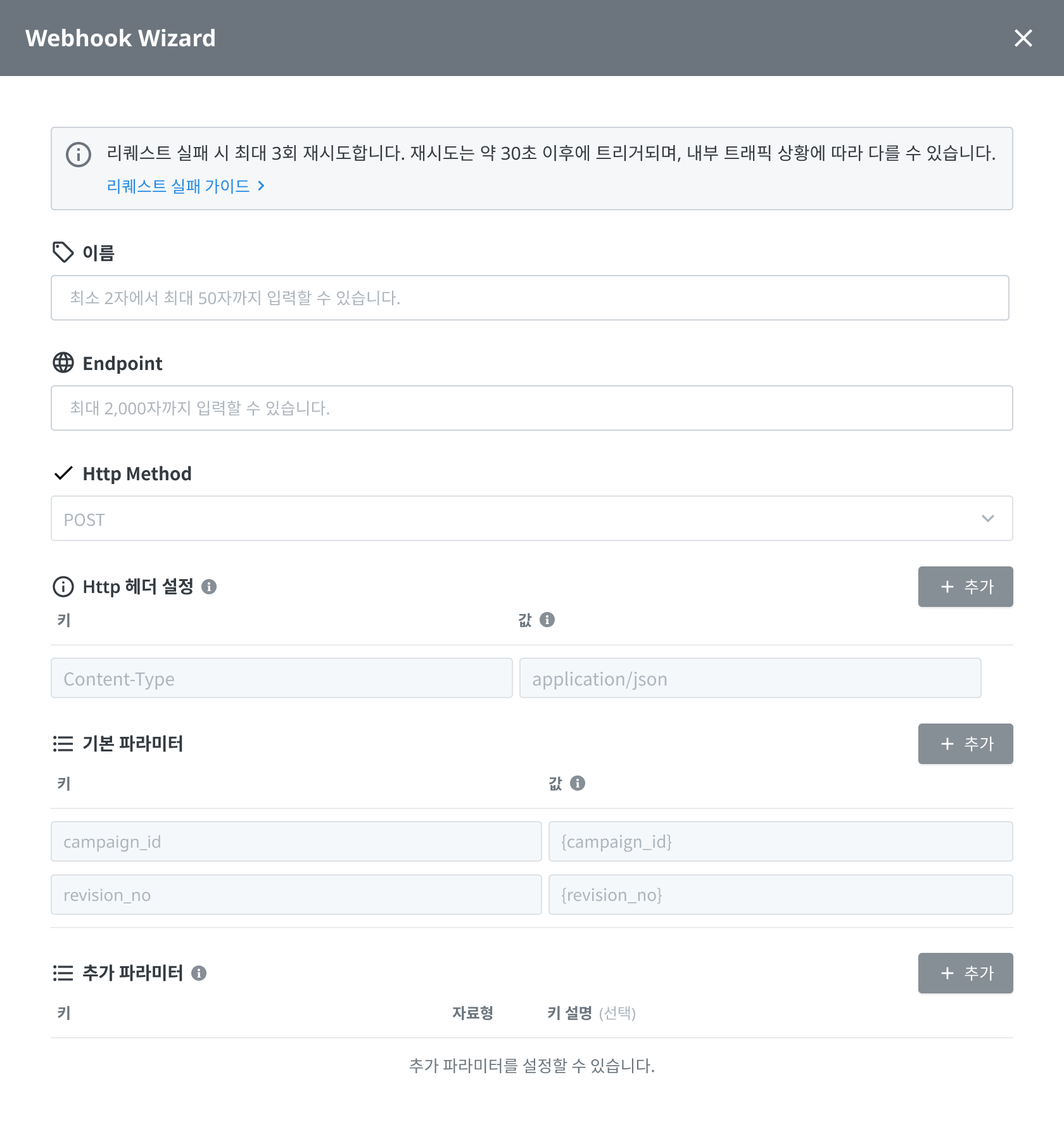

Afterwards, enter the required information for the WebHook Template.

name

Set the administrative name of the webhook.

Endpoint

Enter the server URL address to receive webhook data.

Http Method

Set the data transmission type. Type supports GET / POST type.

Http Header

Set the Header to be included in the webhook request.

basic parameters

Set the data to be delivered when webhooking. In Growth Action Webhook, the two parameters below must be transmitted by default.

• campaign_id: Growth Action campaign ID
• revision_no: Corresponding Growth Action campaign version

If you wish to receive additional data in addition to the parameters above, you can receive information about the user's device through a webhook through the definition macro list below.

This is a macro preset in DFINERY.When you enter the macro, the value is automatically filled in and sent based on the users information.

macro name	Type	explanation	Example
adi	string	Google Advertising ID or Apple Advertising Identifier or Web Cookie ID	0fa27c1e-9378-4d1c-8f01-118e094240e5
idfv	string	Apple Vendor ID	DE4BF1F6-0D95-4F94-A56C-B94E30EB73FE
ad_id_opt_out	bool	Whether to limit ad tracking	FALSE
is_push_enable	bool	Whether push is enabled or not	TRUE
is_push_enable_os	bool	Whether the OS has push enabled or not	TRUE
os	string	Device OS version	7
model	string	Device model name	LG-F800L
vendor	string	device manufacturer	LGE
resolution	string	Device resolution (width x height)	800x600
is_portrait	bool	Device orientation	FALSE
network	string	Device network type	network
platform	enum	device platform	1
carrier	string	device carrier	SK Telecom
language	string	device language	kr
country	string	device country	en

Additional parameters

In addition to the macros provided by DFINERY, you can add Custom Macros.

• Key: Enter the key value for Custom Macro. Only strings can be used.
• Type: Select the type corresponding to the Value of the Custom Macro. Types support String, Number, and Boolean.
• Description: Enter a description for the macro.

How to use Custom Macro

Custom macros are macros set directly by the customer. This custom macro can be used as follows:

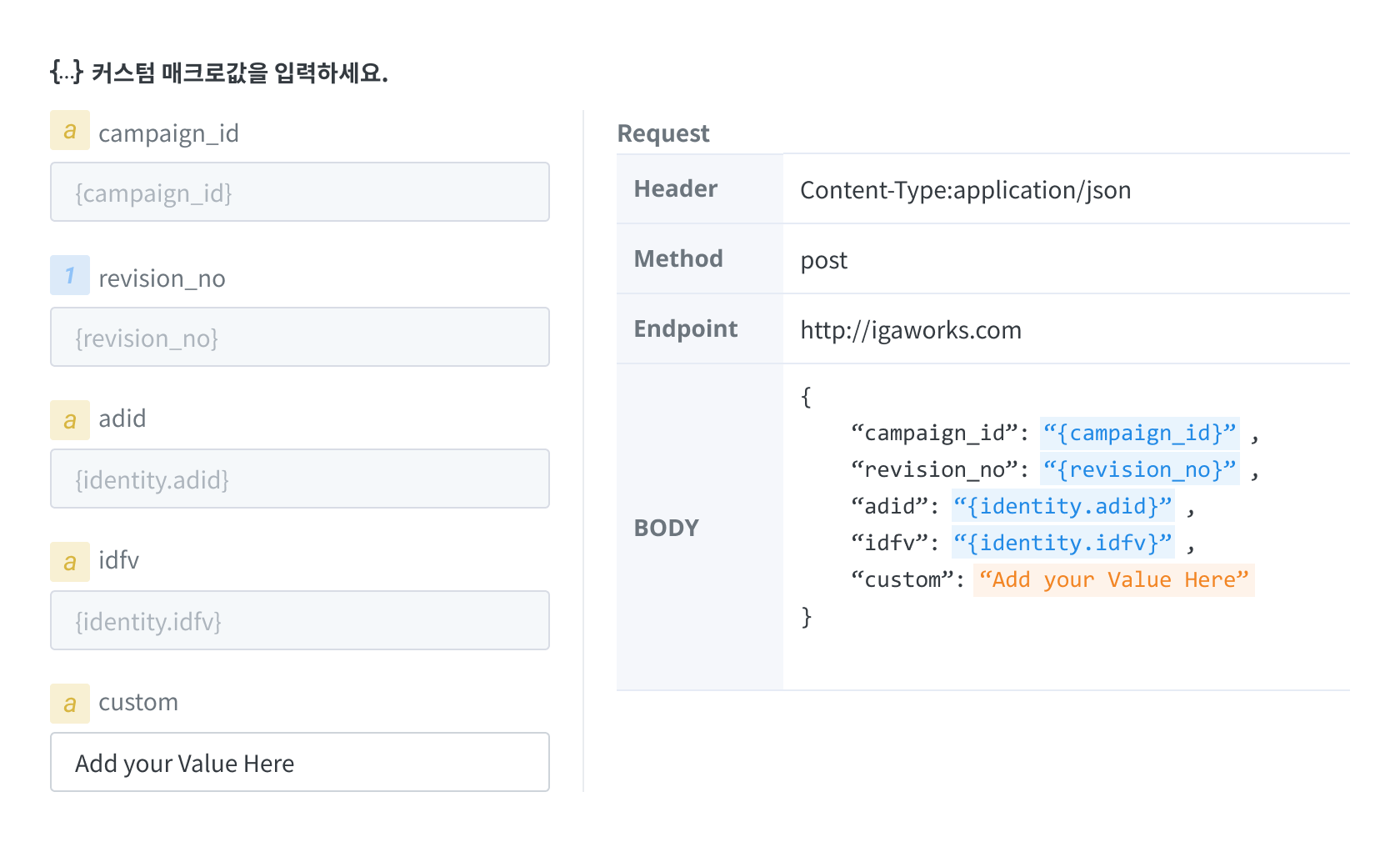

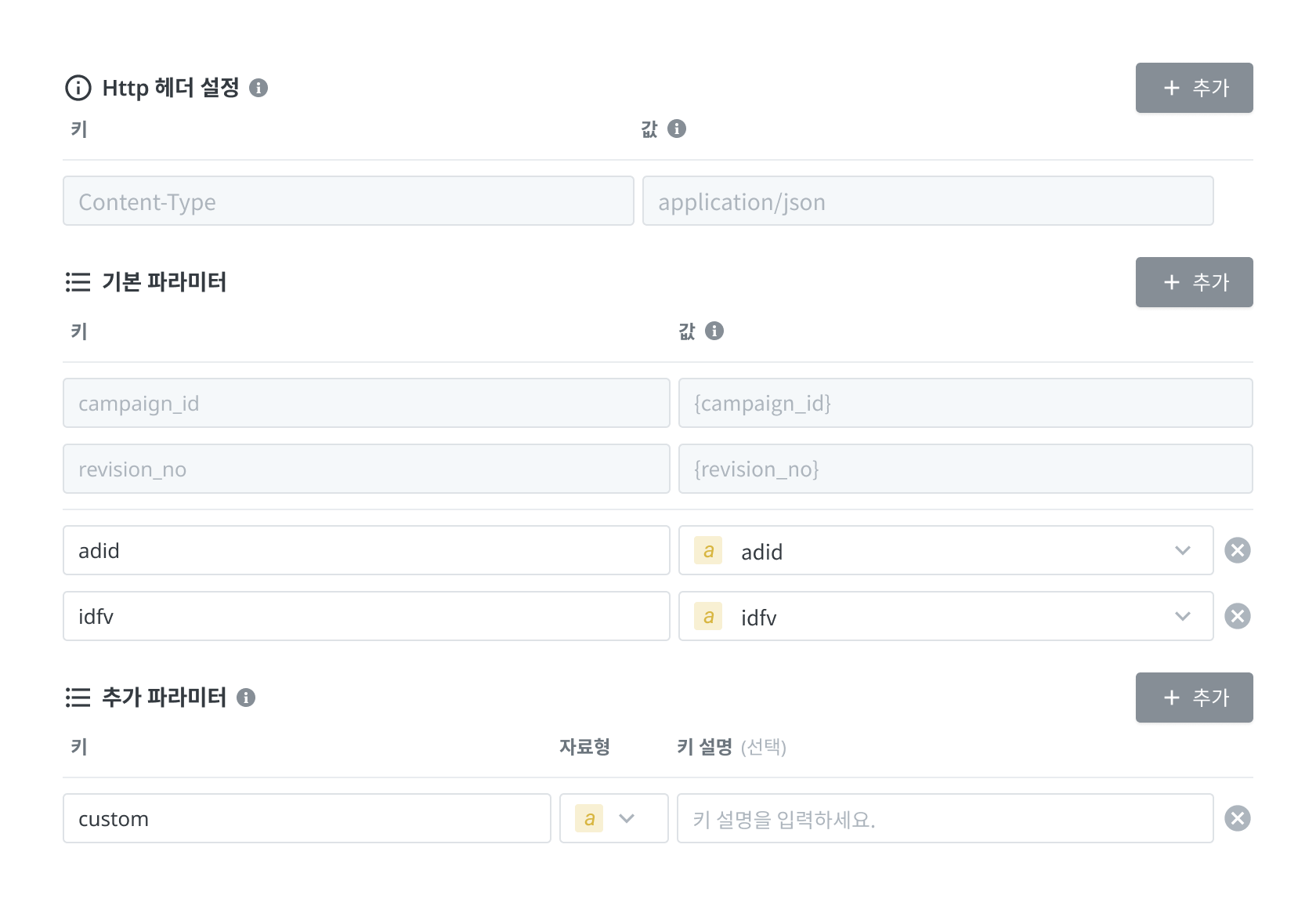

Example: When a user sets a Custom Macro named “custom” as shown in the screenshot below.

In the Webhook settings within the Growth Scenario, enter the value appropriate for the specific node and transmit the value to the Webhook.
