[APP] App push message layout

Android app push settings

[Basic screen creation area]

1. Title (main screen)
   제한 30자, 이모지 및 개인화 지원


2. main text (default screen)
   제한 35자, 이모지 및 개인화 지원


3. Image (main screen)
   1:1 ratio / 1M or less (Upload), 5M or less (URL) / png, jpg, jpeg types allowed / 256x256 1:1 ratio / 1M or less (Upload), 5M or less (URL) / png, jpg, jpeg types allowed / 256x256


4. Summary
   제한 20자, 이모지 및 개인화 지원

[Expanded screen writing area]

1. Title (expanded screen)
   제한 30자, 이모지 및 개인화 지원


2. Body (expanded screen)
   제한 440자, 이모지 및 개인화 지원


3. Image (main screen)
   1:1 ratio / 1M or less (Upload), 5M or less (URL) / png, jpg, jpeg types allowed / 256x256 1:1 ratio / 1M or less (Upload), 5M or less (URL) / png, jpg, jpeg types allowed / 256x256


4. Image (expanded screen)
   2:1 비율 / 1M 이하(Upload), 5M 이하(URL) / png, jpg, jpeg 타입 허용 / 600 300 ~ 1038 x 519


5. Summary
   제한 20자, 이모지 및 개인화 지원

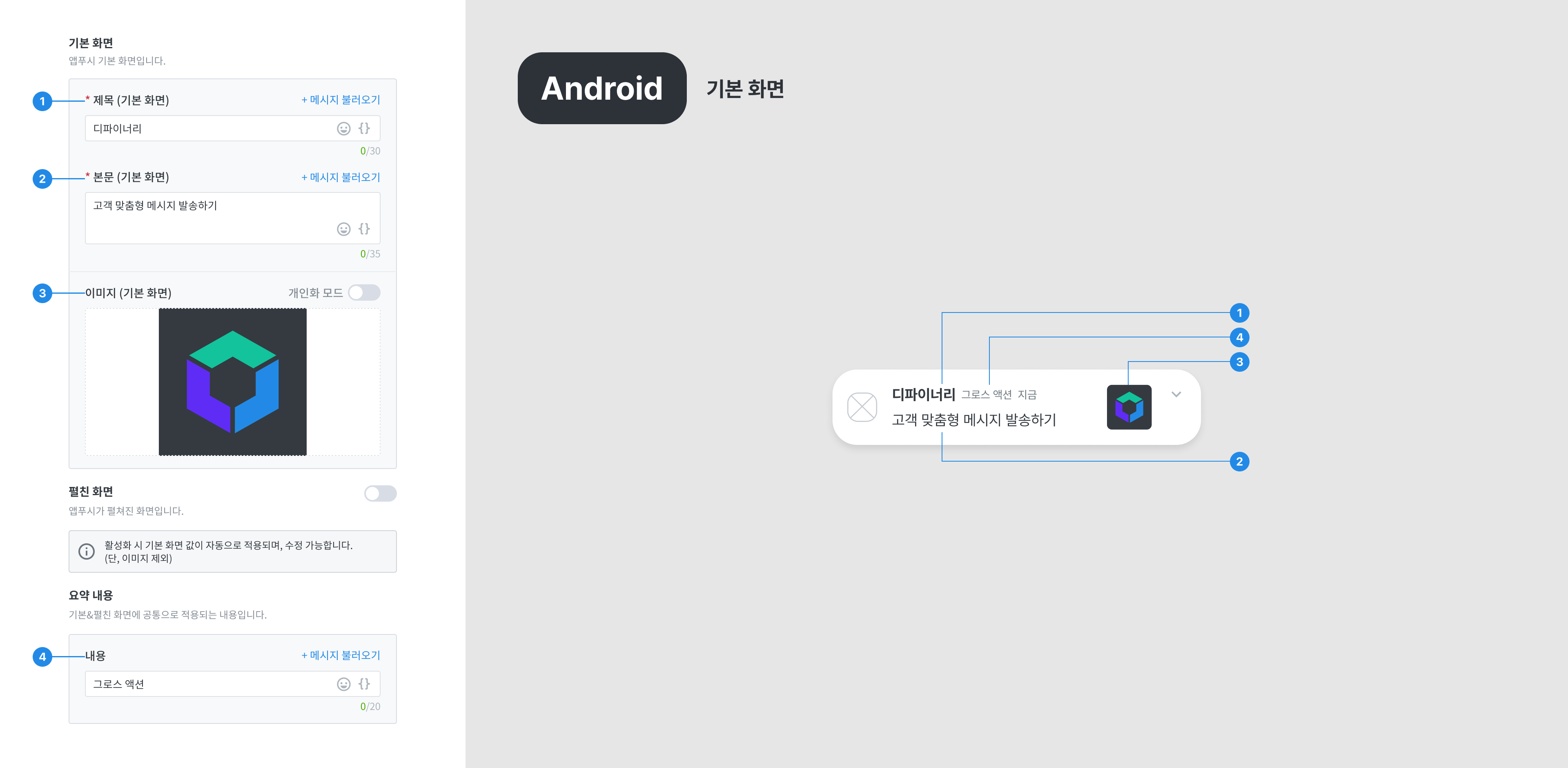

Android main screen

When sending a push message, the default push form is displayed without an expansion option.

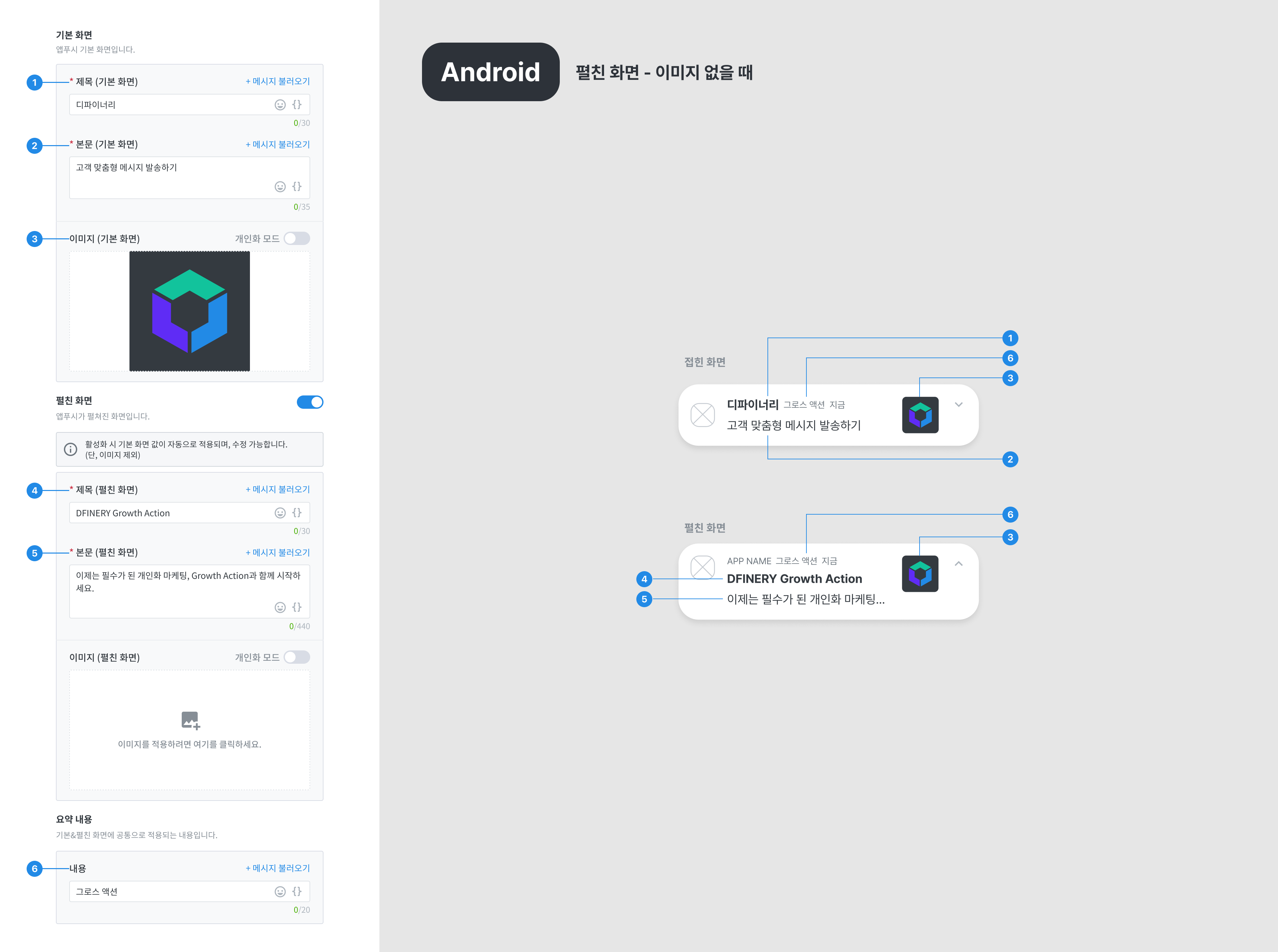

Android expanded screen (when no image)

When sending a push message, an expansion option within the basic push is created, and when you click the basic push, the expanded push screen is displayed.
※ This is a screen where no image (expanded screen) has been registered, and the image (default screen) is automatically exposed.

[[Quote:Warning:Small]] Precautions
When the expanded screen option is activated , the title (default screen) and text (default screen) values ​​are automatically applied, and the applied text can be modified.

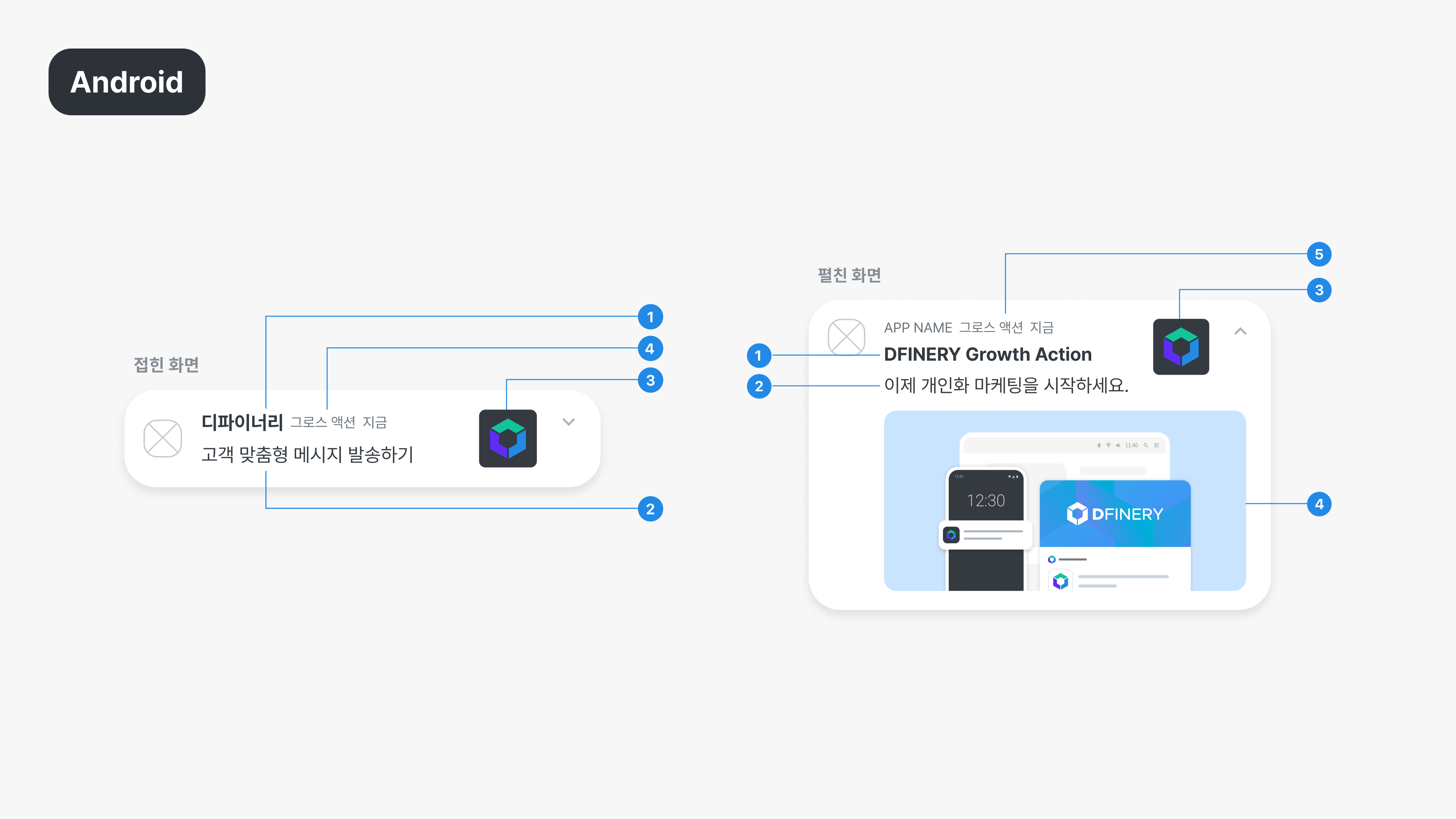

Android expanded screen (when there is an image)

When sending a push message, an expansion option within the basic push is created, and when you click the basic push, the expanded push screen is displayed.
※ This is a screen where an image (expanded screen) is registered, and additional images (expanded screen) are exposed.

[[Quote:Warning:Small]] Precautions
- Regardless of whether the main text (expanded screen) is written or not, the content written in the main text (basic screen) is applied.
- When writing a summary, the content is unconditionally reflected in the main text (opened screen) .

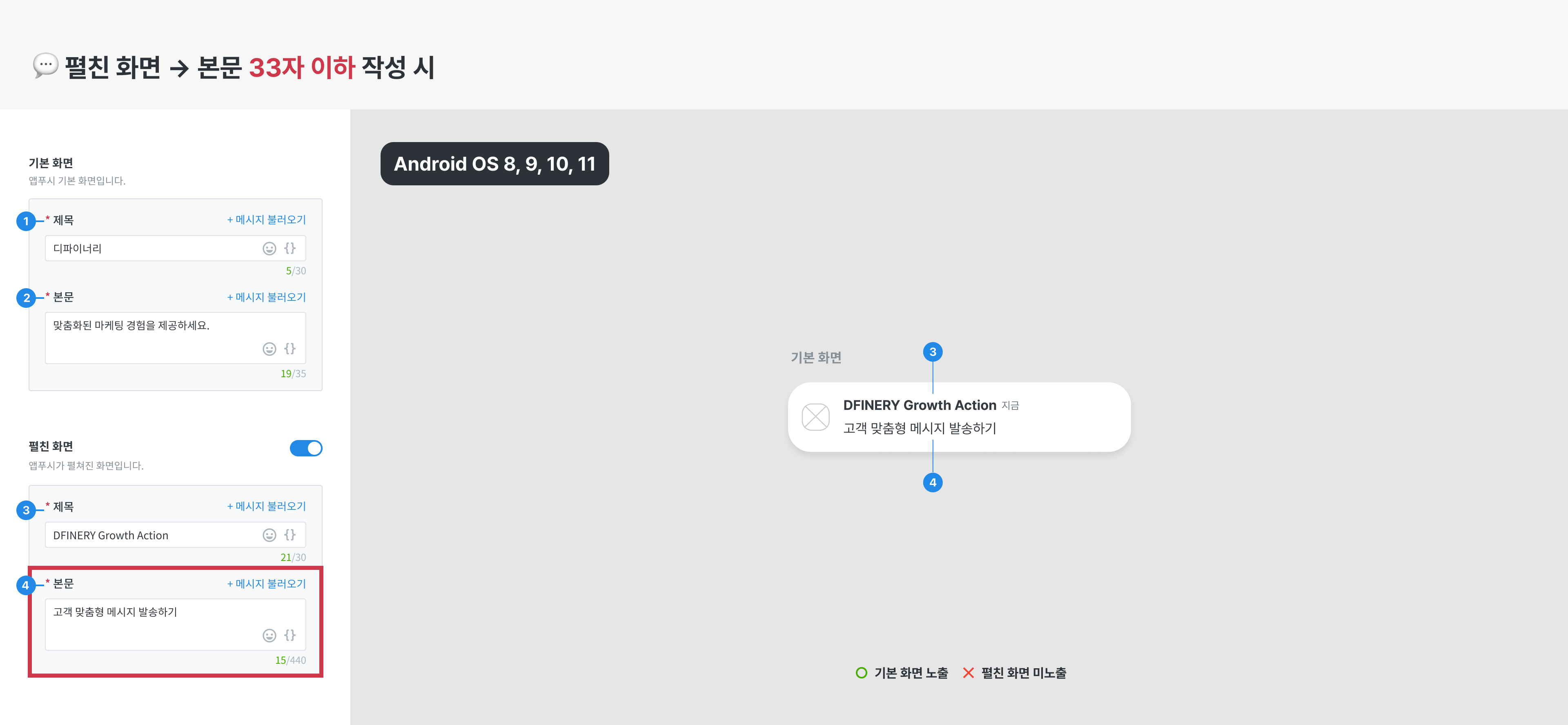

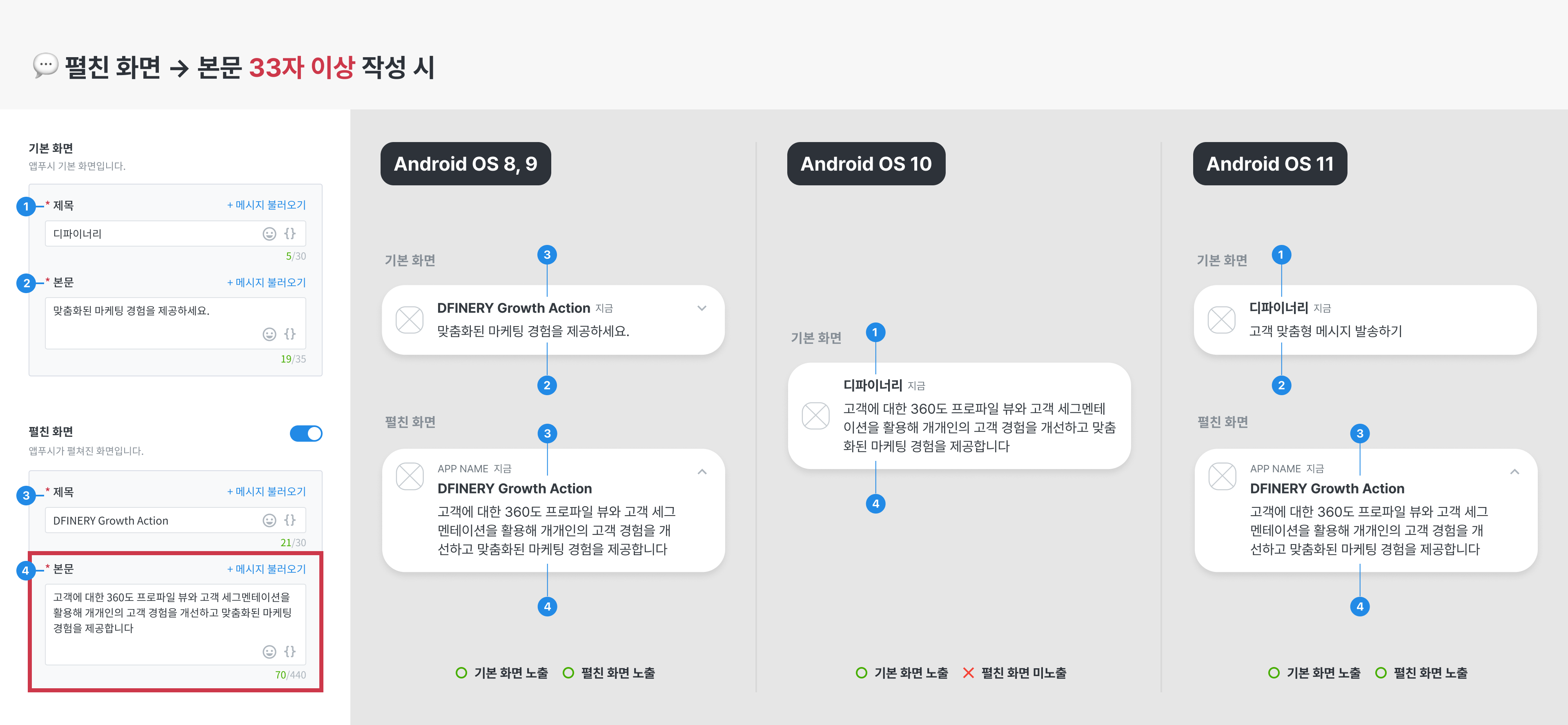

Precautions for using the ‘expanded screen’ option based on OS version

In certain versions and below, when using the ' Expanded Screen ' option, the actual push message is displayed differently depending on the number of ' Body (Expanded Screen) ' characters . Please check the standard table below and check the OS version when writing a message.

※ 2 bytes for Korean, 1 byte for English & spacing

※ For Android OS 12 or higher, basic & expanded screens can be used without any additional conditions.

When using Android OS 8 ‘Expanded Screen’ option

condition situation	title (default screen)	main text (default screen)	title (Expanded screen)	main text (Expanded screen)	note
Body (open screen) 33 characters or less	X		O		Expand option (v) not exposed
When writing the body (expanded screen) of 33 characters or more	X	O			Expand Options (v) Exposure

When using Android OS 9 ‘Expanded Screen’ option

condition situation	title (default screen)	main text (default screen)	title (Expanded screen)	main text (Expanded screen)	note
Body (open screen) 33 characters or less	X		O		Expand option (v) not exposed
When writing the body (expanded screen) of 33 characters or more	X	O			Expand Options (v) Exposure

When using Android OS 10 ‘Expanded Screen’ option

condition situation	title (default screen)	main text (default screen)	title (Expanded screen)	main text (Expanded screen)	note
Body (open screen) 33 characters or less	X		O		Expand option (v) not exposed
When writing the body (expanded screen) of 33 characters or more	O	X		O	Expand option (v) not exposed

When using Android OS 11 ‘Expanded Screen’ option

condition situation	title (default screen)	main text (default screen)	title (Expanded screen)	main text (Expanded screen)	note
Body (open screen) 33 characters or less	X		O		Expand option (v) not exposed
When writing the body (expanded screen) of 33 characters or more	O				Expand Options (v) Exposure

Condition situation standard example screen

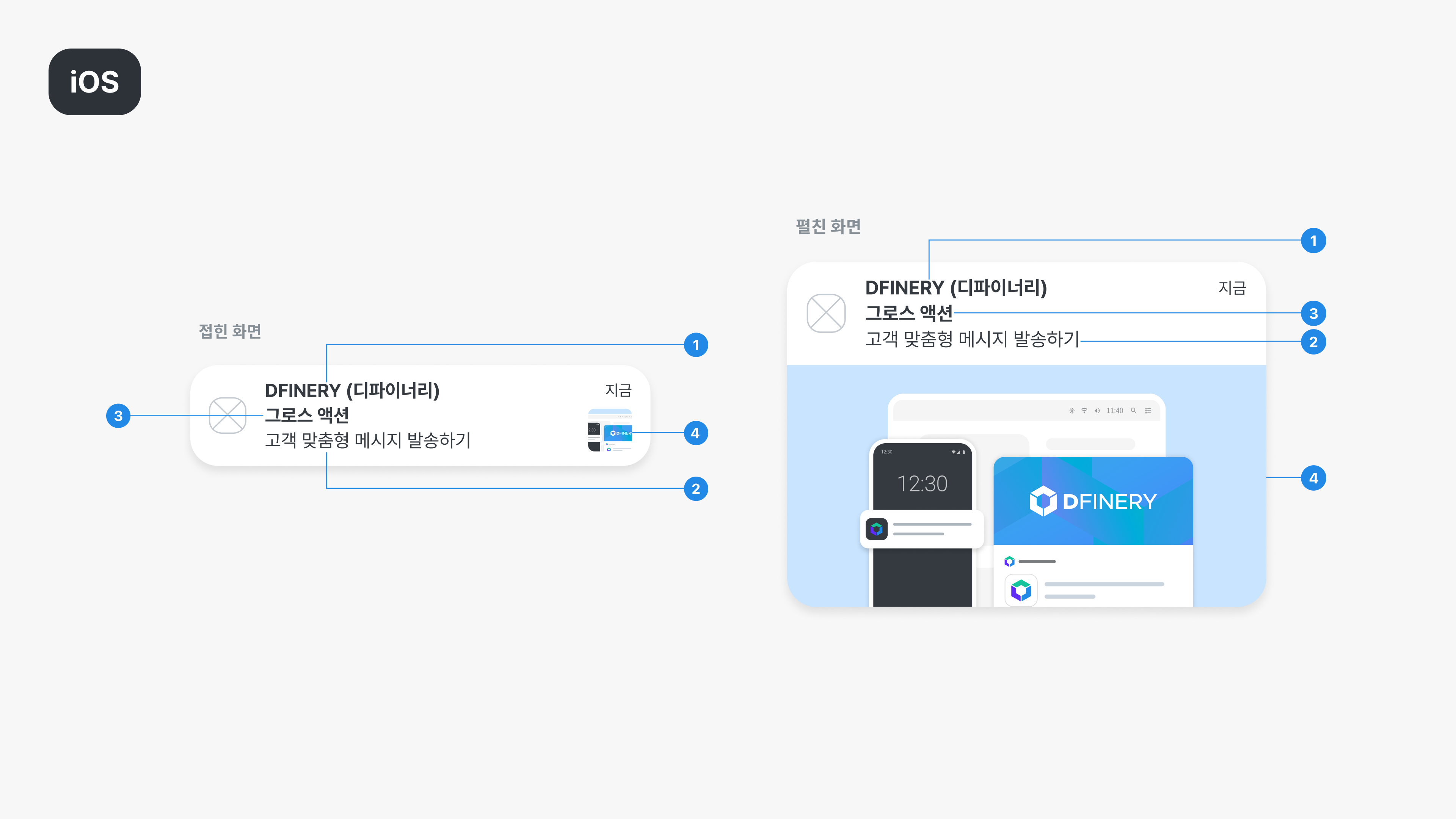

iOS app push settings

1. title
   제한 30자, 이모지 및 개인화 지원


2. main text
   제한 300자, 이모지 및 개인화 지원


3. image
   2:1 ratio / 1M or less (Upload), 5M or less (URL) / png, jpg, jpeg types allowed / 600x300 ~ 1038x519


4. Subtitle (Content)
   제한 60자, 이모지 및 개인화 지원

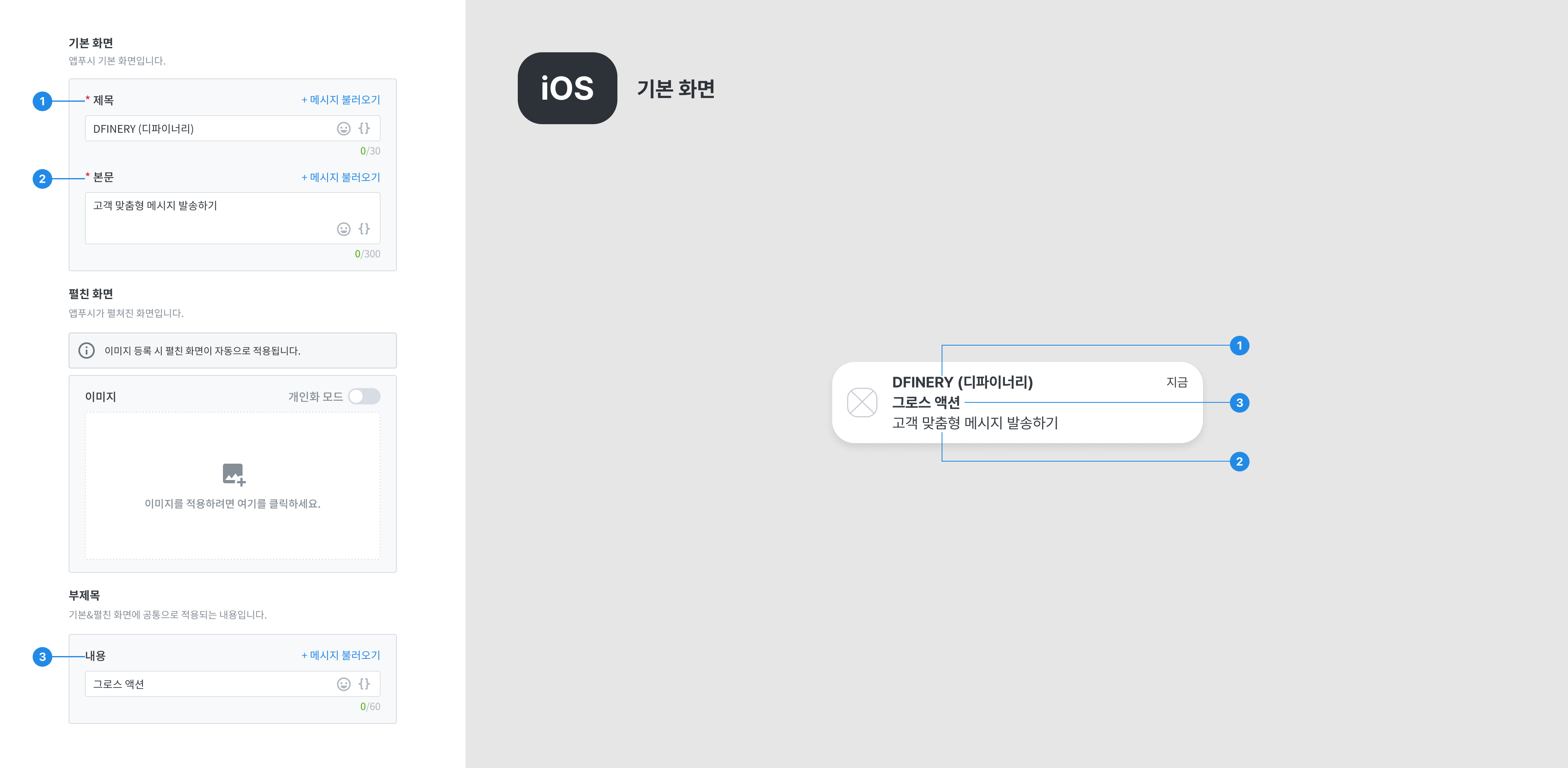

iOS default screen

When sending a push message, the default push form is displayed without an expansion option.

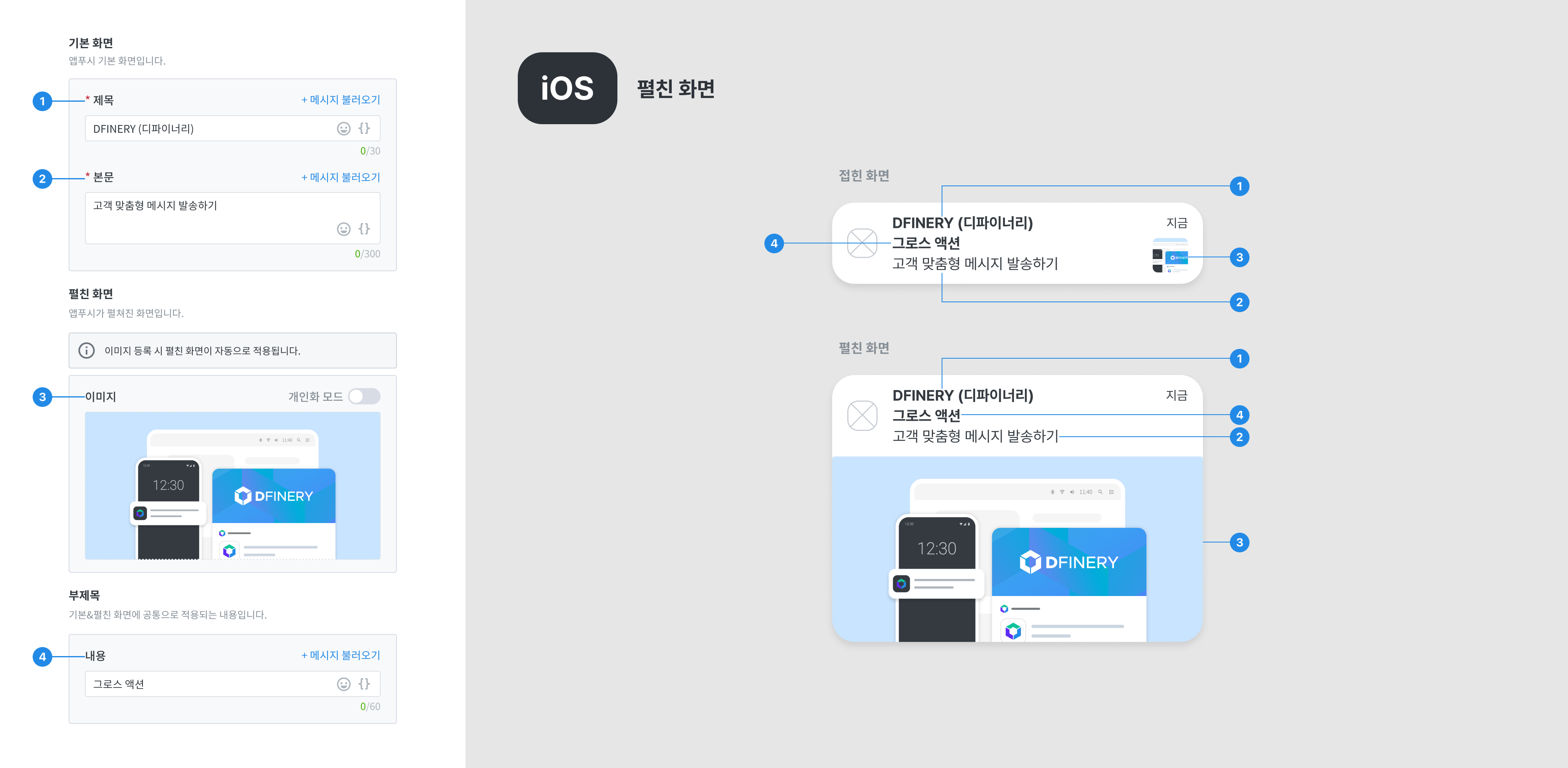

iOS expanded screen

When sending a push message, an expansion option within the basic push is created, and when you click the basic push, the expanded push screen is displayed.
※ This is the screen where the image is registered.
