Segment creation example
Follow
outline
This document provides examples of creating each type of segment in Definary Audience.
For more information on creating and combining audiences, see
Audience Studio
and
Combining Segments
.
Example of creating a segment
[[Quote:Guide:Small]] This audience creation example assumes that all necessary events are linked. Please refer to the guide below.
Definition and Understanding of Definary Events
/
3 Principles for Designing App Analytics Events
/
Definary SDK Integration Guide
segment type | NO | Creation example | link | |
event data | #1 | Users who purchase a specific product through a specific advertising medium | [Shortcuts] | |
#2 | Users who have a history of running the app but have not registered as members | [Shortcuts] | ||
#3 | Users with a repurchase history in n+1 month | [Shortcuts] | ||
#4 | Dormant users (users who have not run the app for more than n days after installing the app) | [Shortcuts] | ||
User profile data | #5 | Users with a specific membership level | [Shortcuts] | |
#6 | Married male user in his 30s | [Shortcuts] | ||
data table | #7 | Users participating in offline campaigns | [Shortcuts] | |
Defined Audience | #8 | Among the dormant users defined in #4, users who have completed membership registration | [Shortcuts] | |
push message | #9 | Users who opened a specific push message but did not make a purchase | [Shortcuts] | |
pop-up message | #10 | AOS users who clicked the A button on a specific pop-up message | [Shortcuts] |
Event data
#1. Users who purchased a specific product through a specific advertising medium

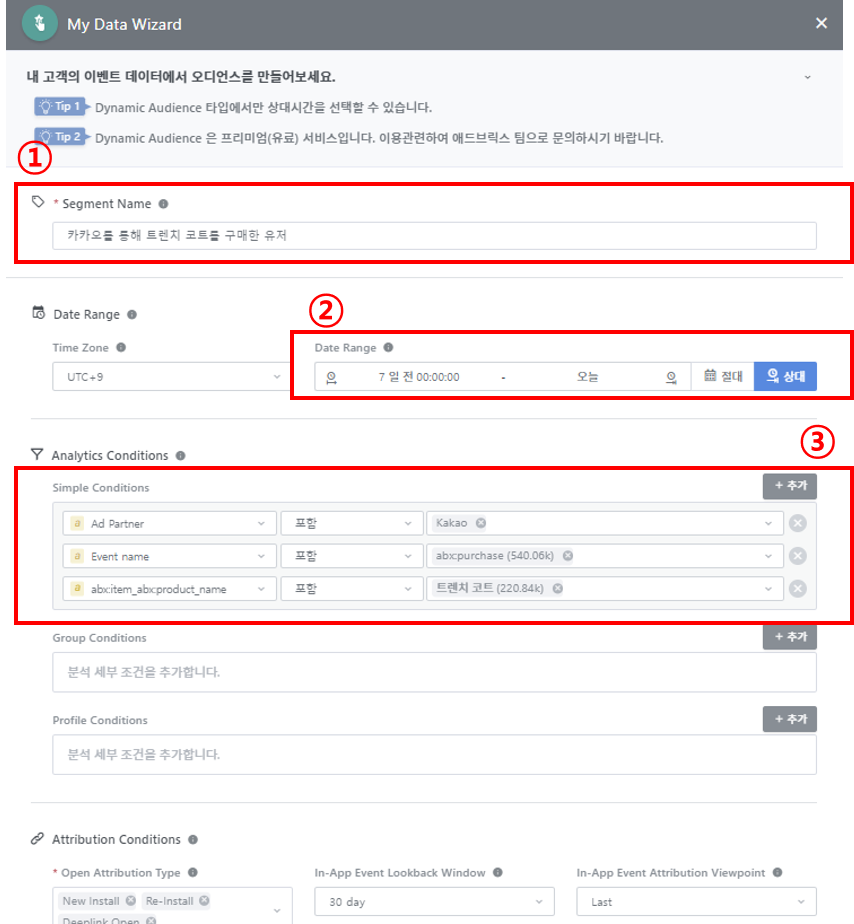

STEP 1. Create a segment
item | explanation |
① Segment Name | Set segment name |
② Date Range | Set audience extraction period |
③ Simple Conditions |
Ad Partner > Include > Kakao: Includes only performance generated through Kakao media Event Name > Include > abx:purchase: Include only the results that resulted in a purchase event. abx:item_abx:product_name > Include > Trench Coat : Include only outcomes that resulted in the Trench Coat product. |
[[Quote: Guide: Small]] To set “Date Range - Relative Time”, you must select the Dynamic audience type.
If you wish to use it, please contact the DFINERY representative.

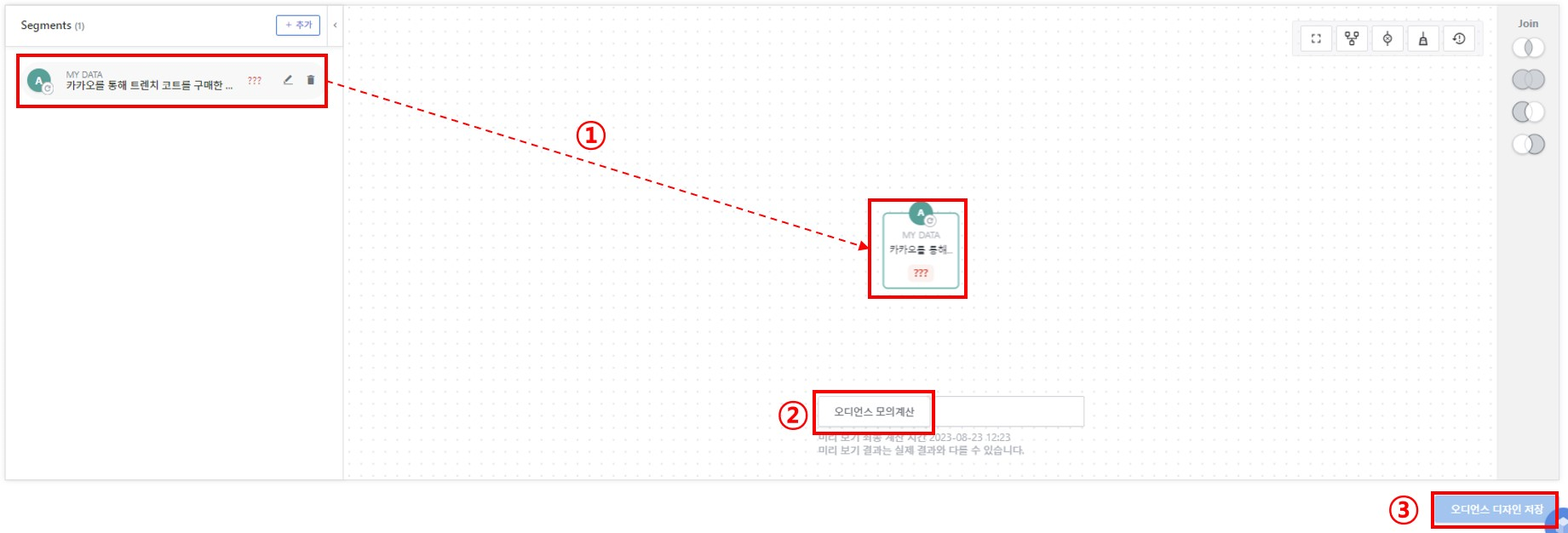

STEP 2. Segment Combination
Combination order |
① Drag & drop the segment created on the left onto the canvas. |
② Click the ‘Audience Mock Calculation’ button |
③ Click the ‘Save Audience Design’ button at the bottom right. |
#2. Users who have run the app but have not registered as members

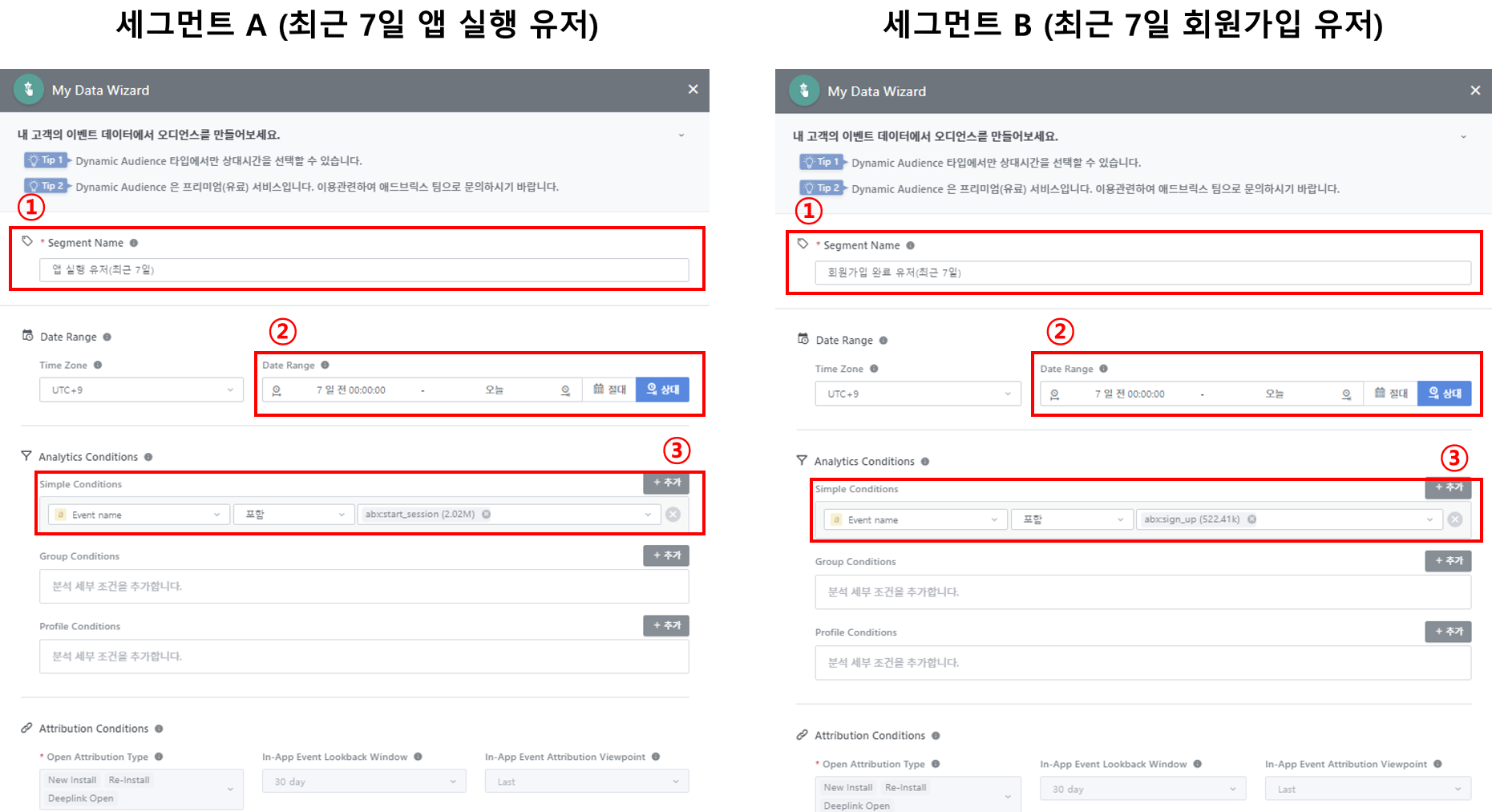

STEP 1. Create a segment
item | explanation |
① Segment Name | Set segment name |
② Date Range | Set audience extraction period |
③ Simple Conditions |
Event Name > Include > abx:start_session: Includes only the results where the app launch event occurred. Event Name > Include > abx:sign_up : Include only the results of the member sign-up event |
[[Quote:Guide:Small]] To set "Date Range - Relative Time", you must select the Dynamic audience type.
If you wish to use it, please contact the DFINERY representative.

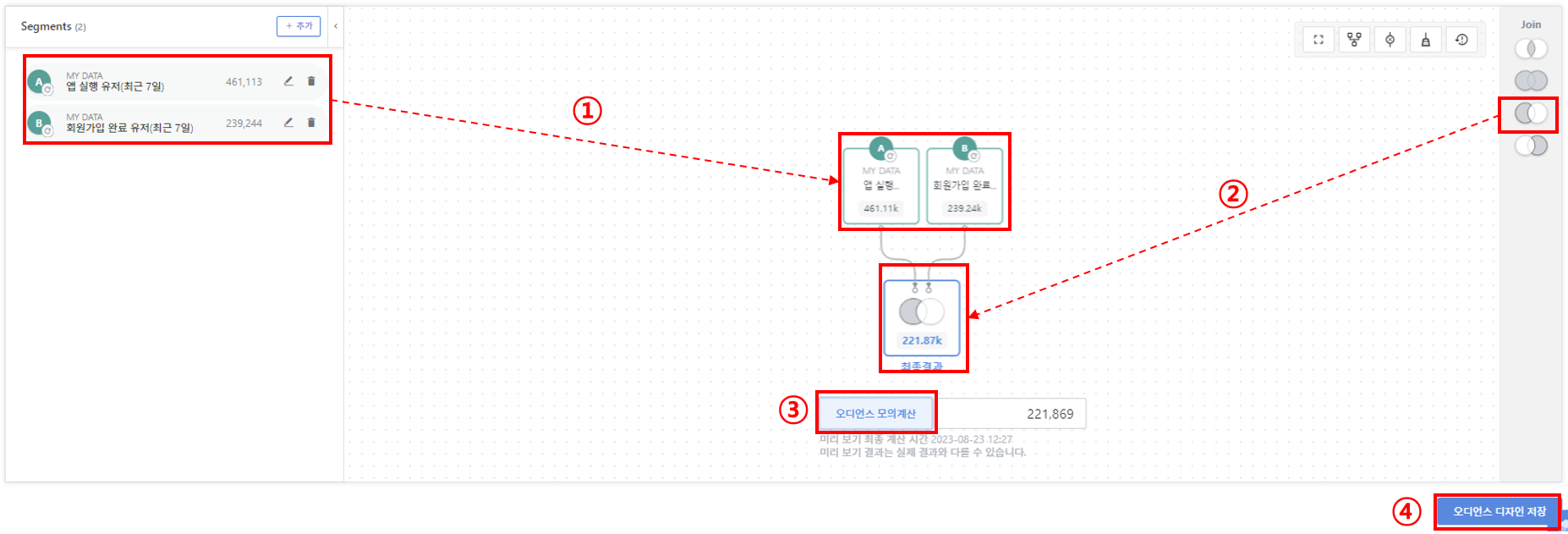

STEP 2. Segment Combination
Combination order |
① Drag & drop the segment created on the left onto the canvas. |
② Drag & drop ‘Difference’ from the JOIN conditions on the right to the canvas. |
③ Click the ‘Audience Mock Calculation’ button |
④ Click the ‘Save Audience Design’ button at the bottom right. |
#3. Users who have made a repeat purchase in n+1 months

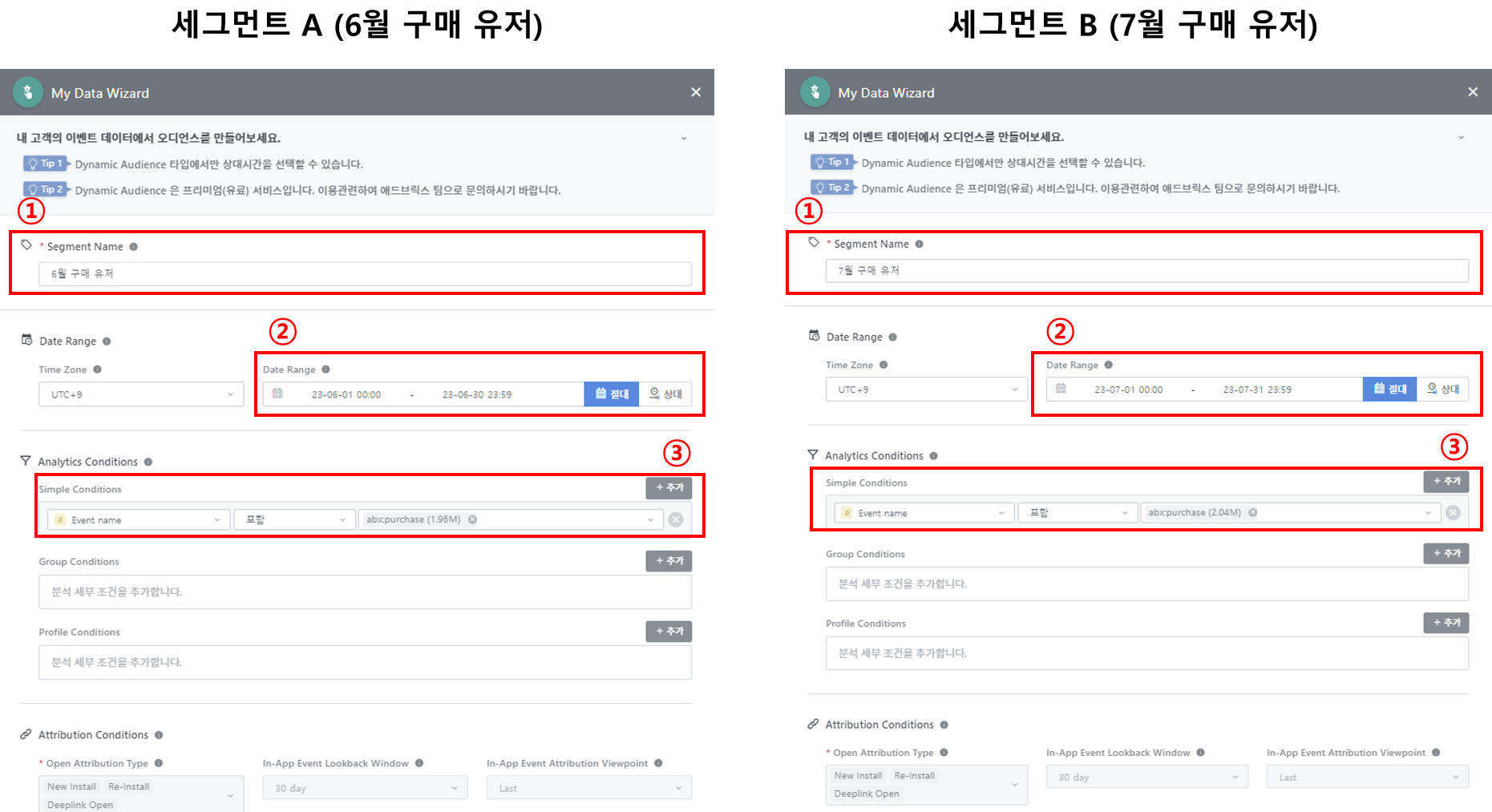

STEP 1. Create a segment
item | explanation |
① Segment Name | Set segment name |
② Date Range | Set audience extraction period |
③ Simple Conditions |
Event Name > Include > abx:purchase: Include only the results that resulted in a purchase event. |

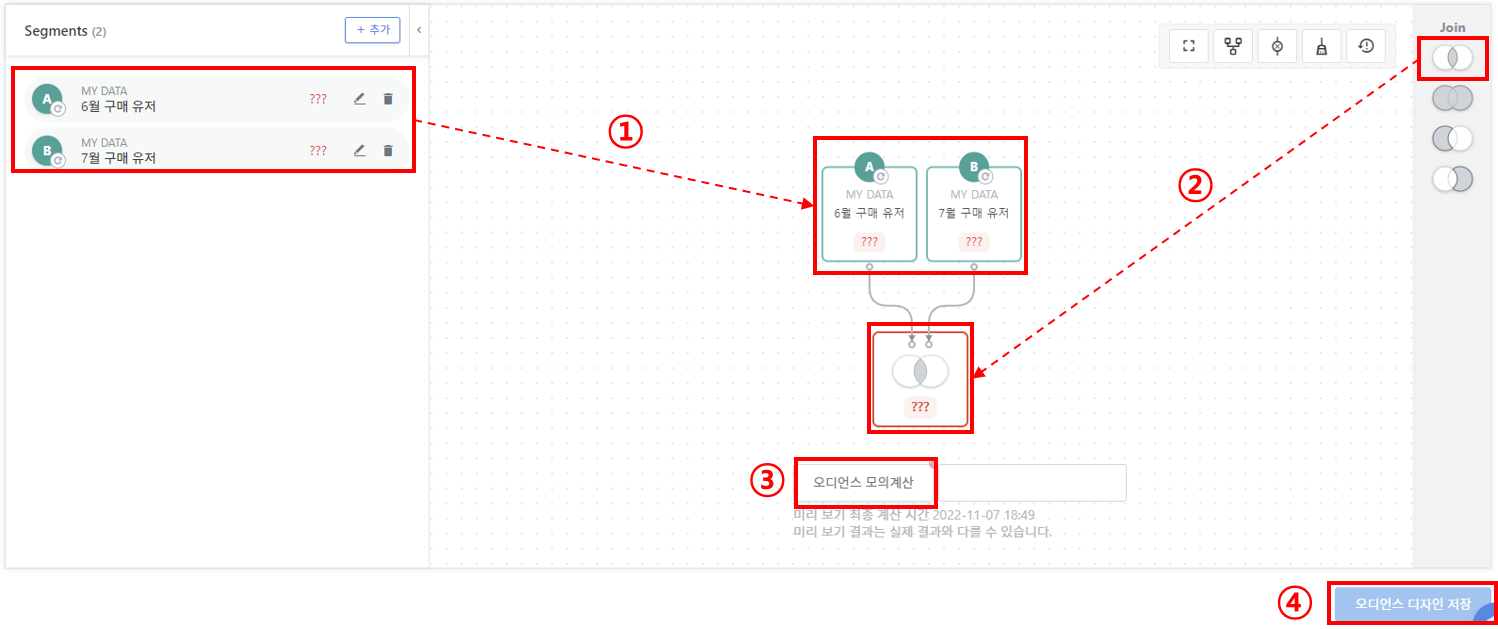

STEP 2. Segment Combination
Combination order |
① Drag & drop the segment created on the left onto the canvas. |
② Drag & drop ‘Difference’ from the JOIN conditions on the right to the canvas. |
③ Click the ‘Audience Mock Calculation’ button |
④ Click the ‘Save Audience Design’ button at the bottom right. |
#4. Inactive users (users who have not run the app for more than n days after installing the app)

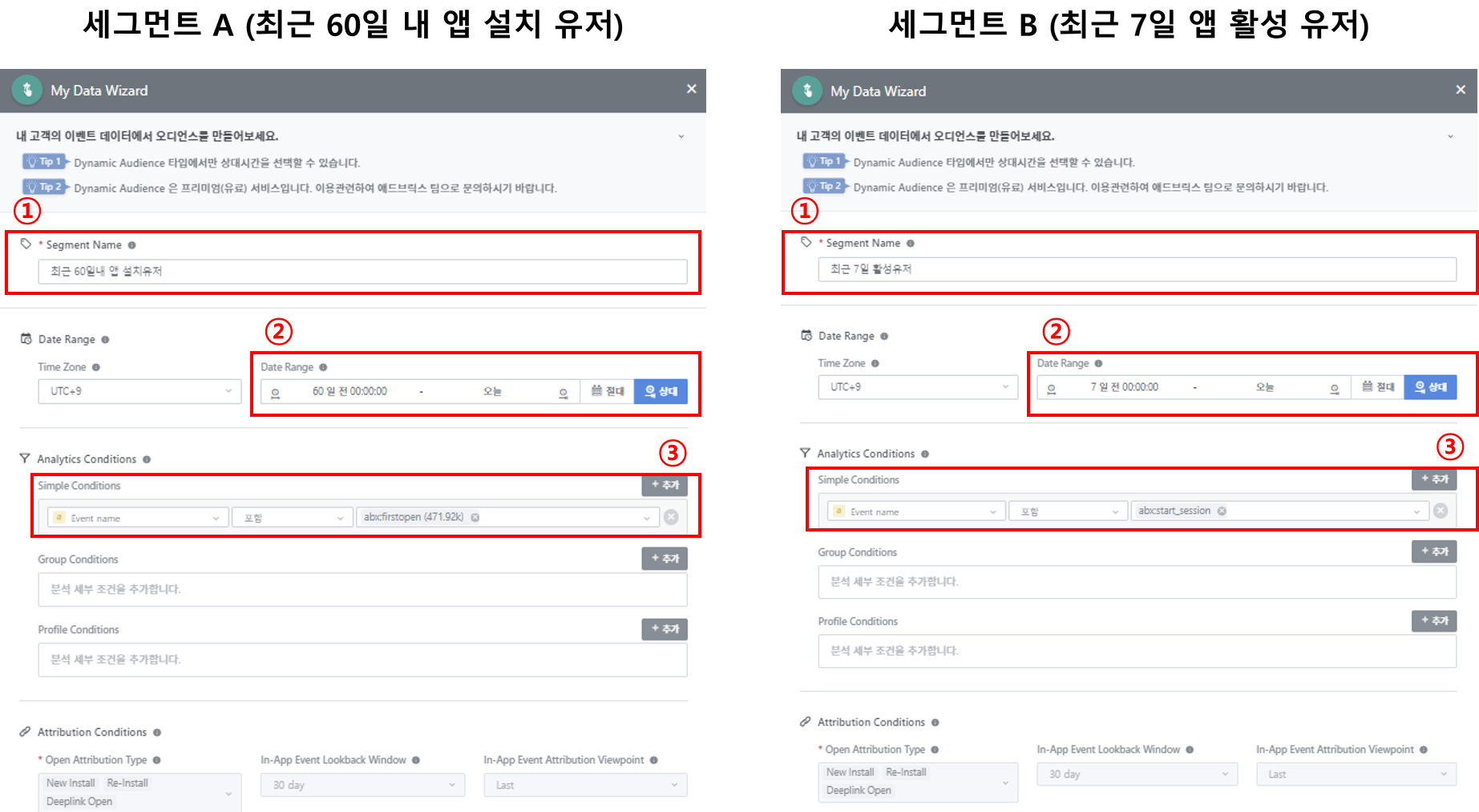

STEP 1. Create a segment
item | explanation |
① Segment Name | Set segment name |
② Date Range | Set audience extraction period |
③ Simple Conditions |
Event Name > Include > abx:firstopen: Includes only performances where app install events (new install + re install) occurred. Event Name > Include > abx:start_session: Includes only the results where the app launch event occurred. |
[[Quote: Guide: Small]] To set “Date Range - Relative Time”, you must select the Dynamic audience type. (Add on function)

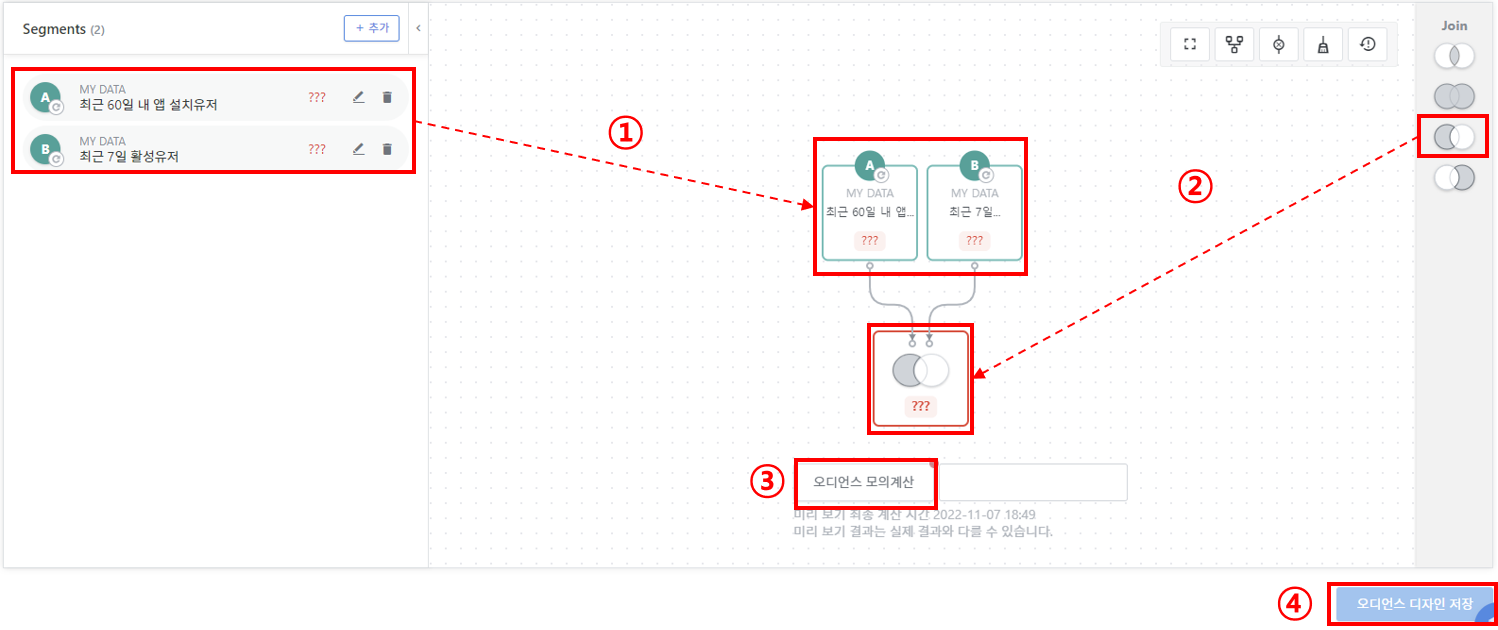

STEP 2. Segment Combination
Combination order |
① Drag & drop the segment created on the left onto the canvas. |
② Drag & drop ‘Difference’ from the JOIN conditions on the right to the canvas. |
③ Click the ‘Audience Mock Calculation’ button |
④ Click the ‘Save Audience Design’ button at the bottom right. |
User profile data
[[Quote: Instructions: Small]] User profile data can only be used when selecting a user audience type.

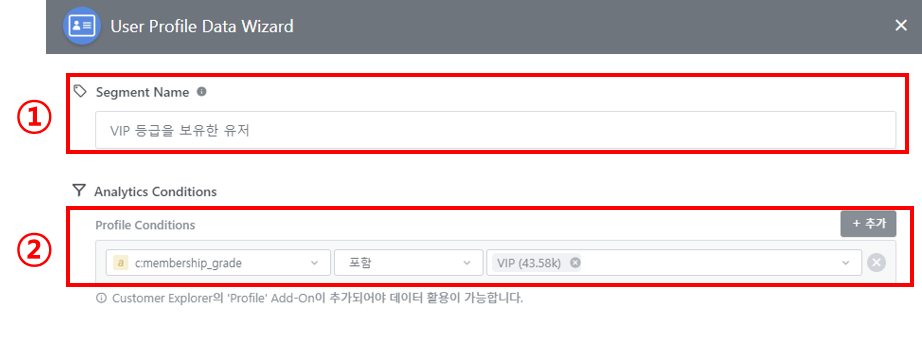

#5. Users with a specific membership level
STEP 1. Create a segment
item | explanation |
① Segment Name | Set segment name |
② Profile Conditions | c:membership_grade > include > VIP : Includes only achievements with a membership grade of VIP. |

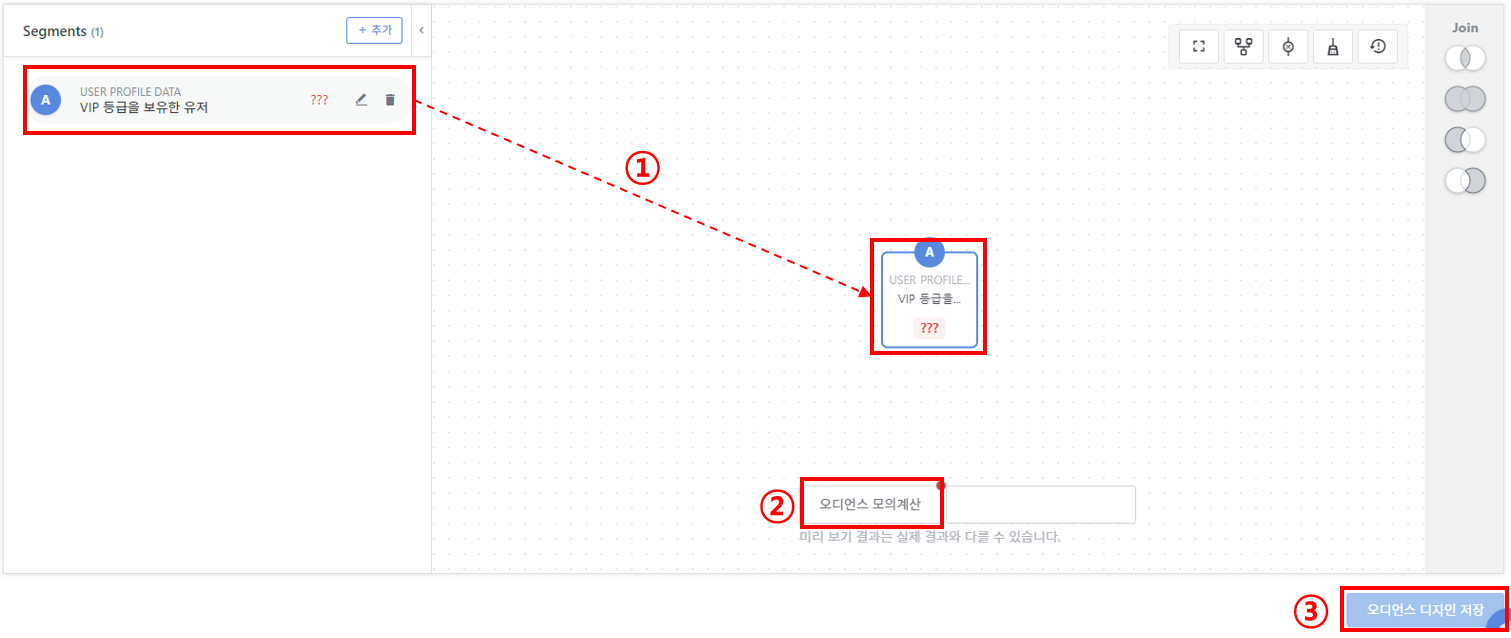

STEP 2. Segment Combination
Combination order |
① Drag & drop the segment created on the left onto the canvas. |
② Click the ‘Audience Mock Calculation’ button |
③ Click the ‘Save Audience Design’ button at the bottom right. |
#6. Married male user in his early 30s

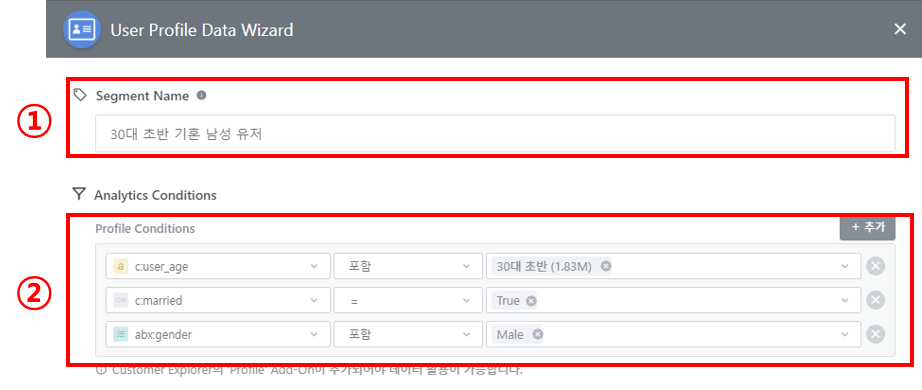

STEP 1. Create a segment
item | explanation |
① Segment Name | Set segment name |
② Profile Conditions |
c:user_age> includes > early 30s: includes only users in their early 30s c:married > include > True : Include only married users abx:gender > include > Male : Include only male users |
STEP 2. Segment Combination
Combination order |
① Drag & drop the segment created on the left onto the canvas. |
② Click the ‘Audience Mock Calculation’ button |
③ Click the ‘Save Audience Design’ button at the bottom right. |
Data Table
[[Quote:Information:Small]] The data table can only be used when selecting the user audience type.
#7. Users participating in offline campaigns

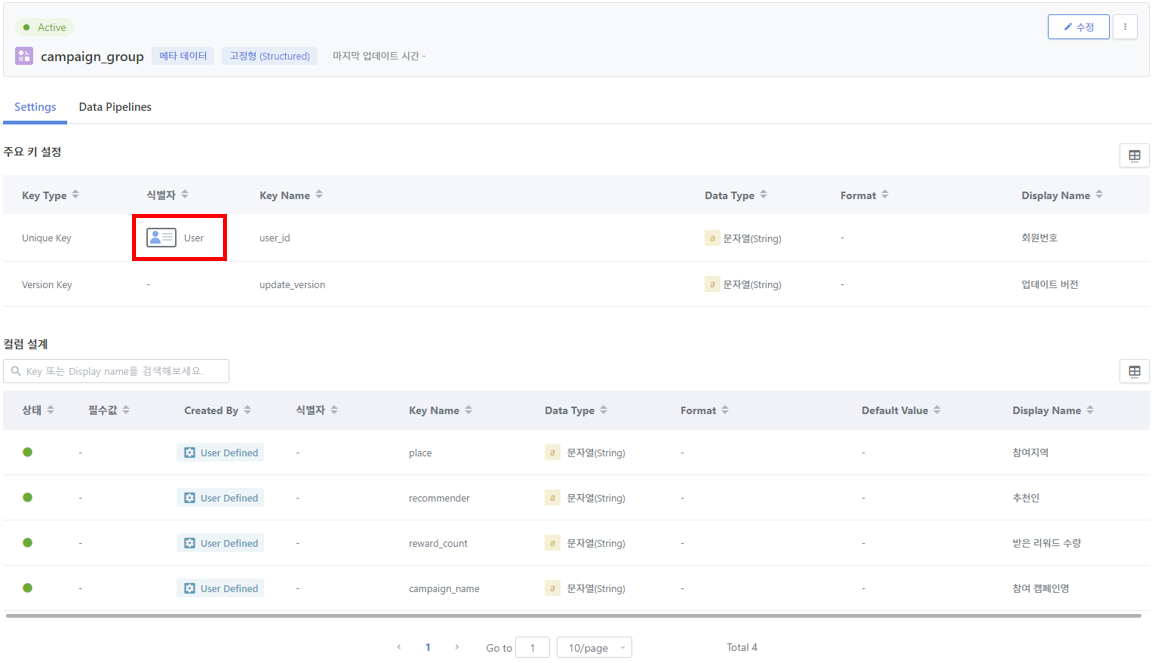

STEP 1. Create a data table
- Upload the user DB that participated in the offline campaign to the data table. ( Learn more about the data house function )
[[Quote: Guide: Small]] In order to use the data table for audience, you must set an “identifier”.

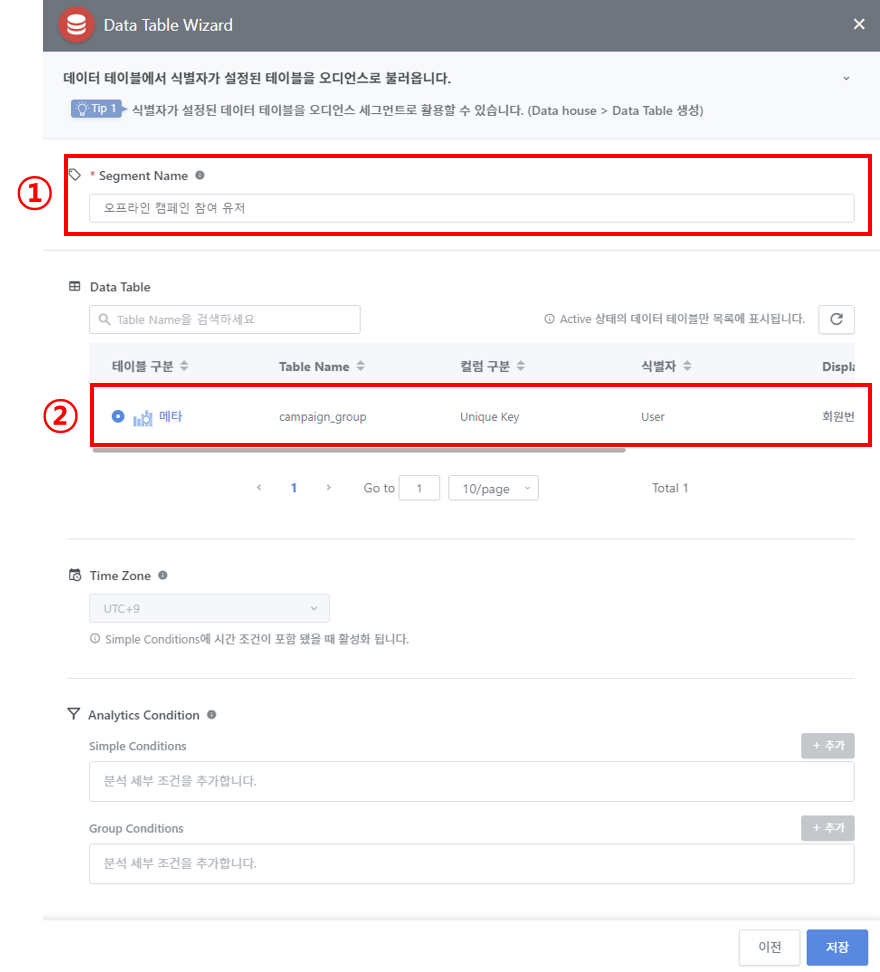

STEP 2. Create a segment
item | explanation |
① Segment Name | Set segment name |
② Data Table | Setting up the data table to use for the segment |

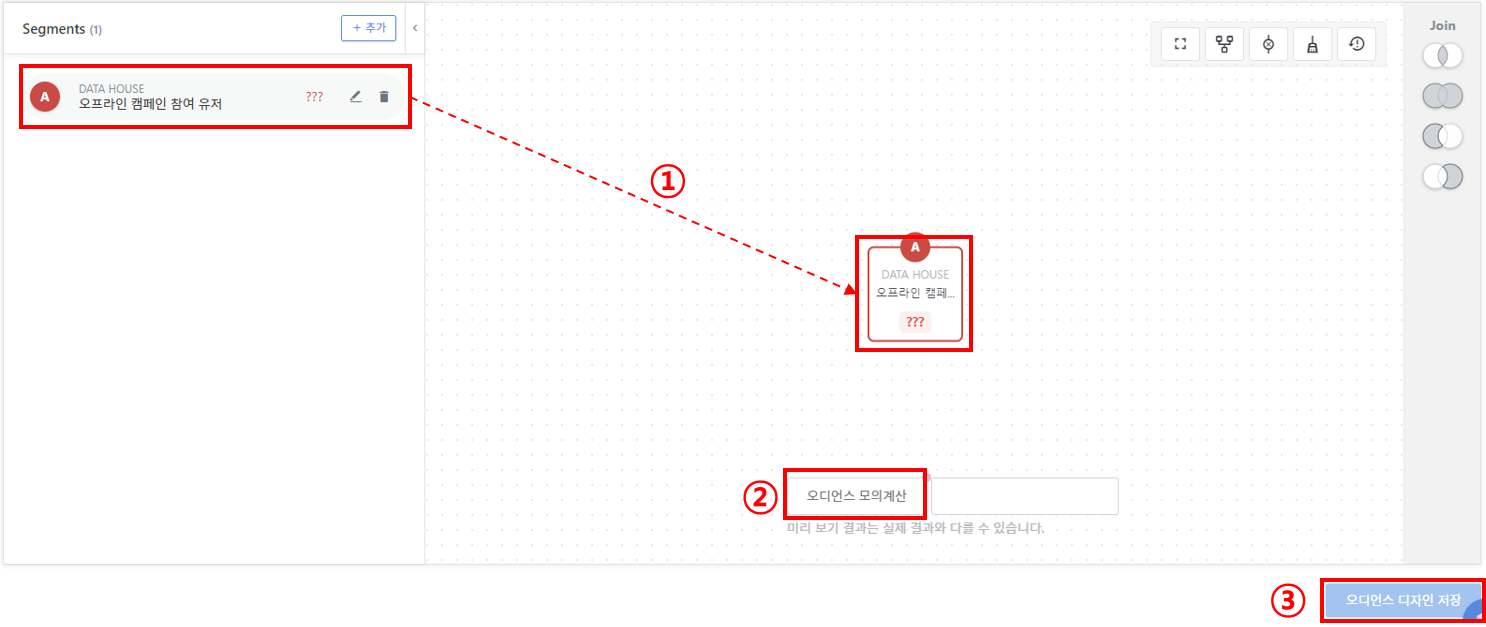

STEP 3. Segment Combination
Combination order |
① Drag & drop the segment created on the left onto the canvas. |
② Click the ‘Audience Mock Calculation’ button |
③ Click the ‘Save Audience Design’ button at the bottom right. |
Defined Audience
#8. Users who completed membership registration among dormant users (example #4 audience)

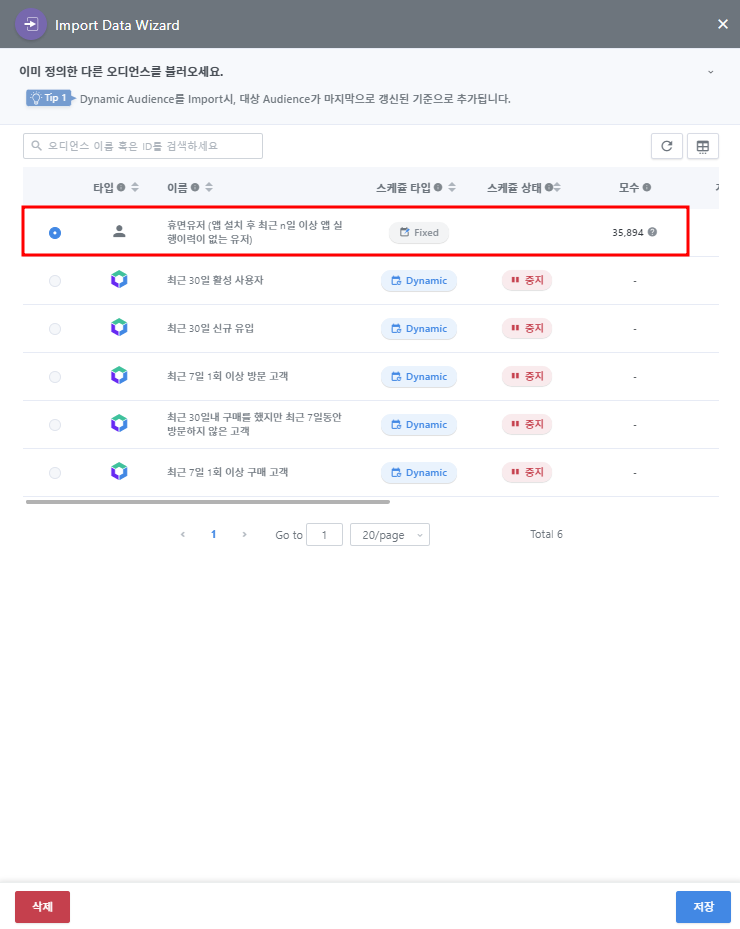

STEP 1. Create a segment
① Click the “+ Add” button in the left Segment area and select “Defined Audience”
② Select the “dormant user (user who has no history of running the app for more than n days after installing the app)” created in Example #4.

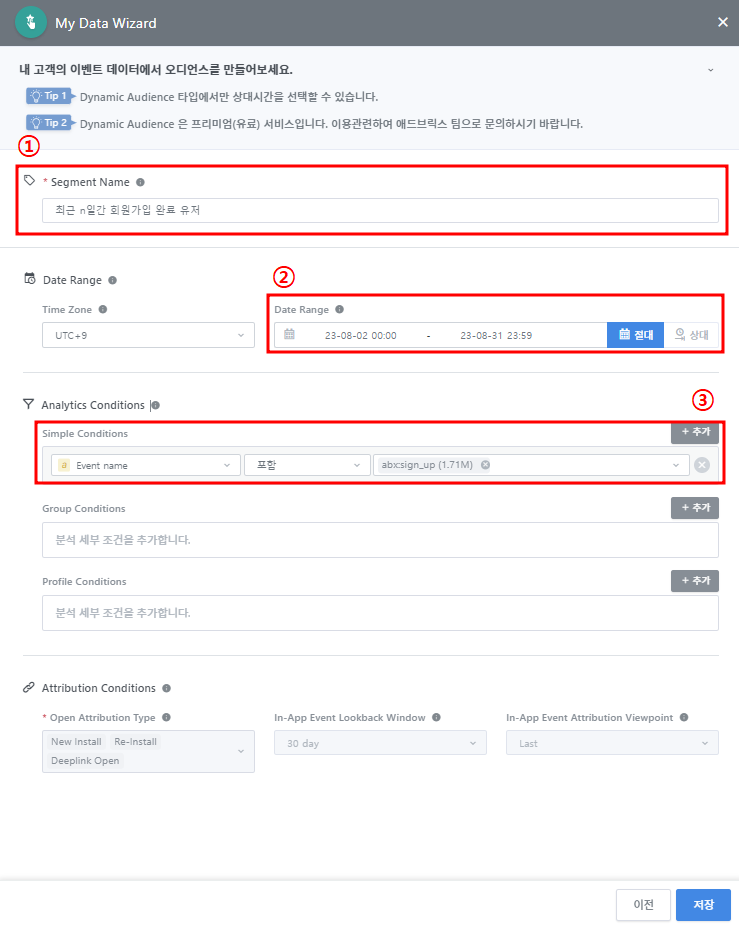

STEP 2. Create a new segment
item | explanation |
① Segment Name | Set segment name |
② Date Range | Set audience extraction period |
③ Simple Conditions |
Event Name > Include > abx:sign_up : Include only the results of the member sign-up event |

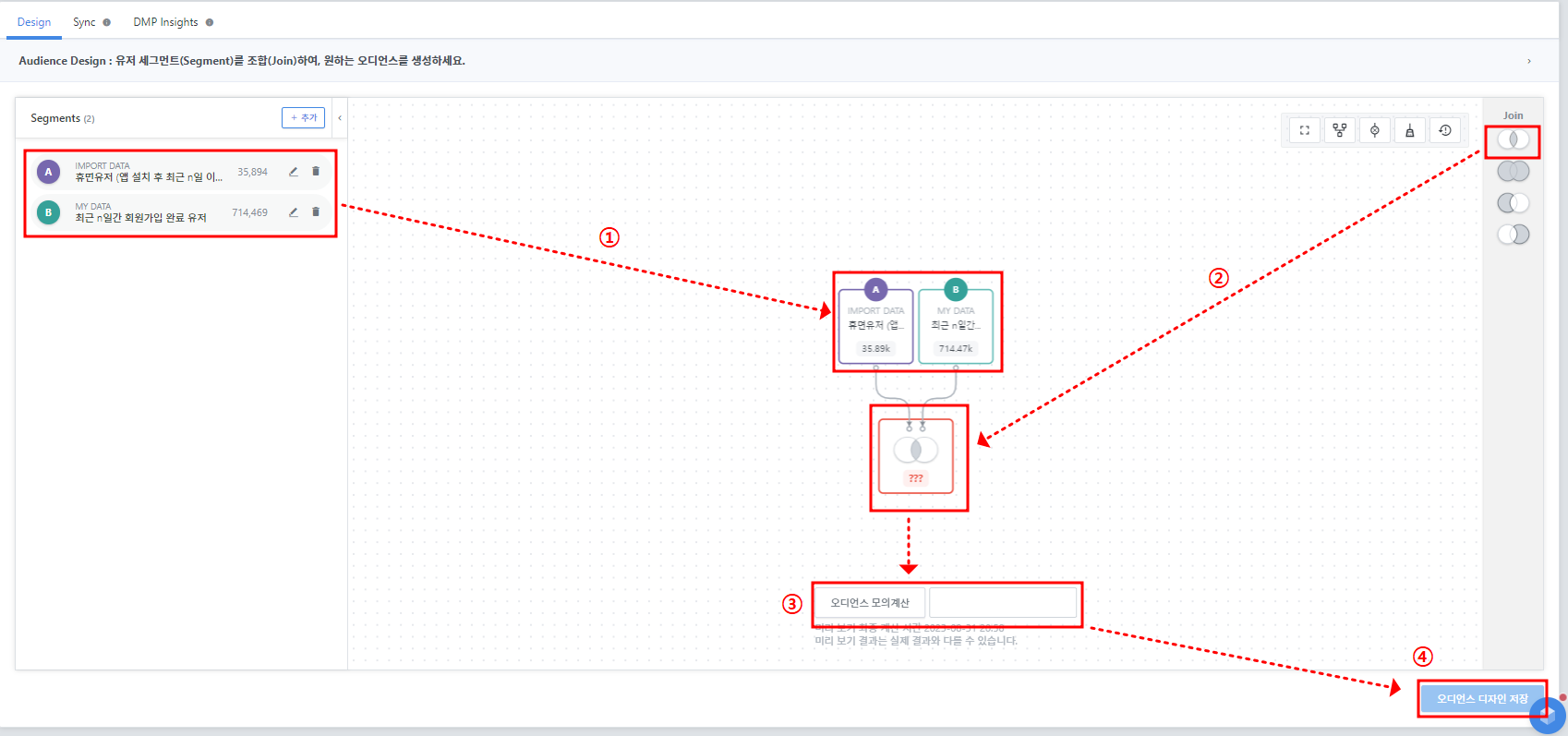

STEP 3. Segment Combination
Combination order |
① Drag & drop the segment created on the left onto the canvas. |
② Drag & drop ‘intersection’ from the JOIN conditions on the right to the canvas. |
③ Click the ‘Audience Mock Calculation’ button |
④ Click the ‘Save Audience Design’ button at the bottom right. |
Push message
#9. Users who opened a specific push message but did not make a purchase

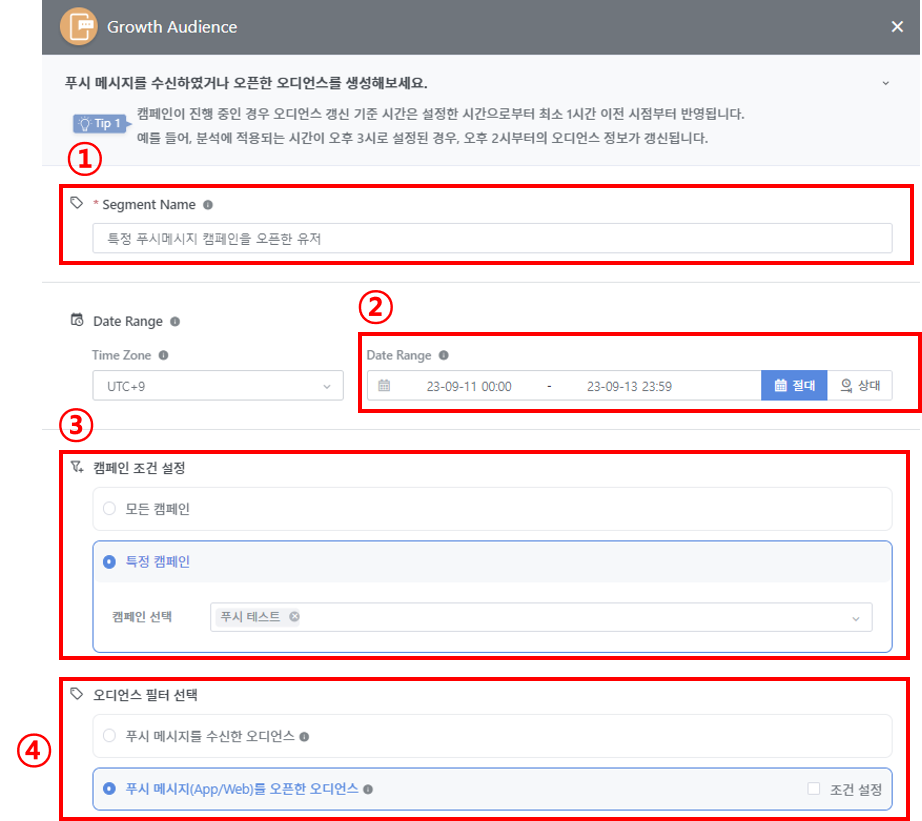

STEP 1-1. Create a segment (users who opened a specific push message)
item | explanation |
Segment Type | Push message |
① Segment Name | Set segment name |
② Date Range | Set audience extraction period |
③ Setting campaign conditions |
Select a specific campaign > Push message campaign name |
④ Select audience filter |
Select 'Push message (audience that opened App/Web)' |
[[Quote: Guide: Small]]
[Only audiences who have opened the push message channel “APP/WEB” can be checked]
To check whether APP/WEB push is open, DFINERY SDK must be linked.However, because Kakao Channel sends pushes through a separate API, the push open rate cannot be checked.

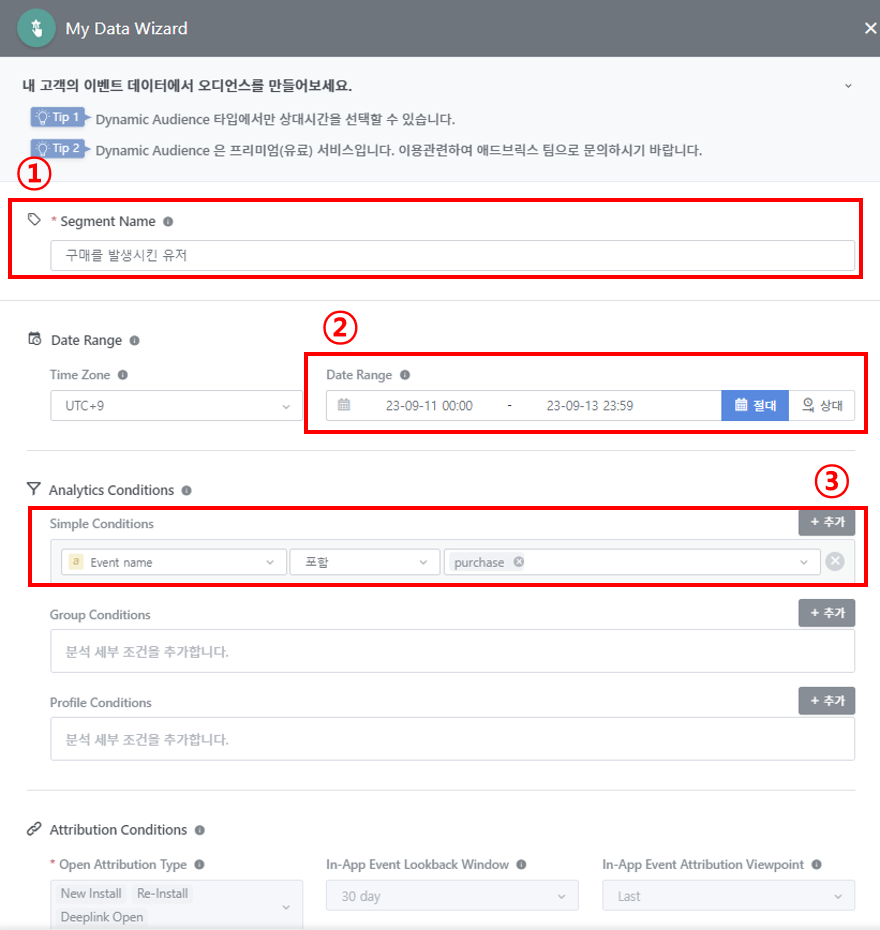

STEP 1-2. Create segment (users who triggered purchase events)
item | explanation |
Segment Type | Event data |
① Segment Name | Set segment name |
② Date Range | Set audience extraction period |
③ Simple Conditions |
Event Name > Include > abx:purchase: Include only the results that resulted in a purchase event. |

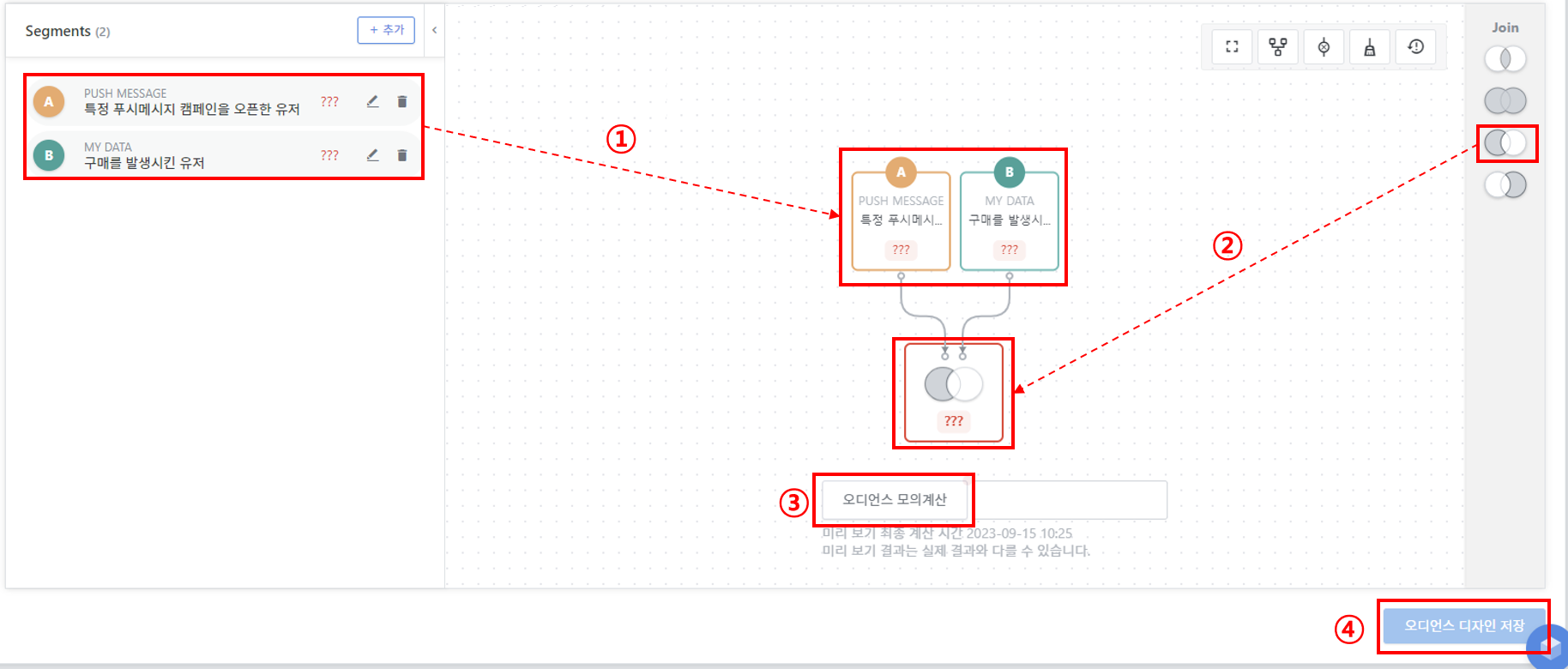

STEP 2. Segment Combination
Combination order |
① Drag & drop the segment created on the left onto the canvas. |
② Drag & drop ‘Difference’ from the JOIN conditions on the right to the canvas. |
③ Click the ‘Audience Mock Calculation’ button |
④ Click the ‘Save Audience Design’ button at the bottom right. |
Pop-up message
#10. AOS user who clicked the A button of a specific pop-up message

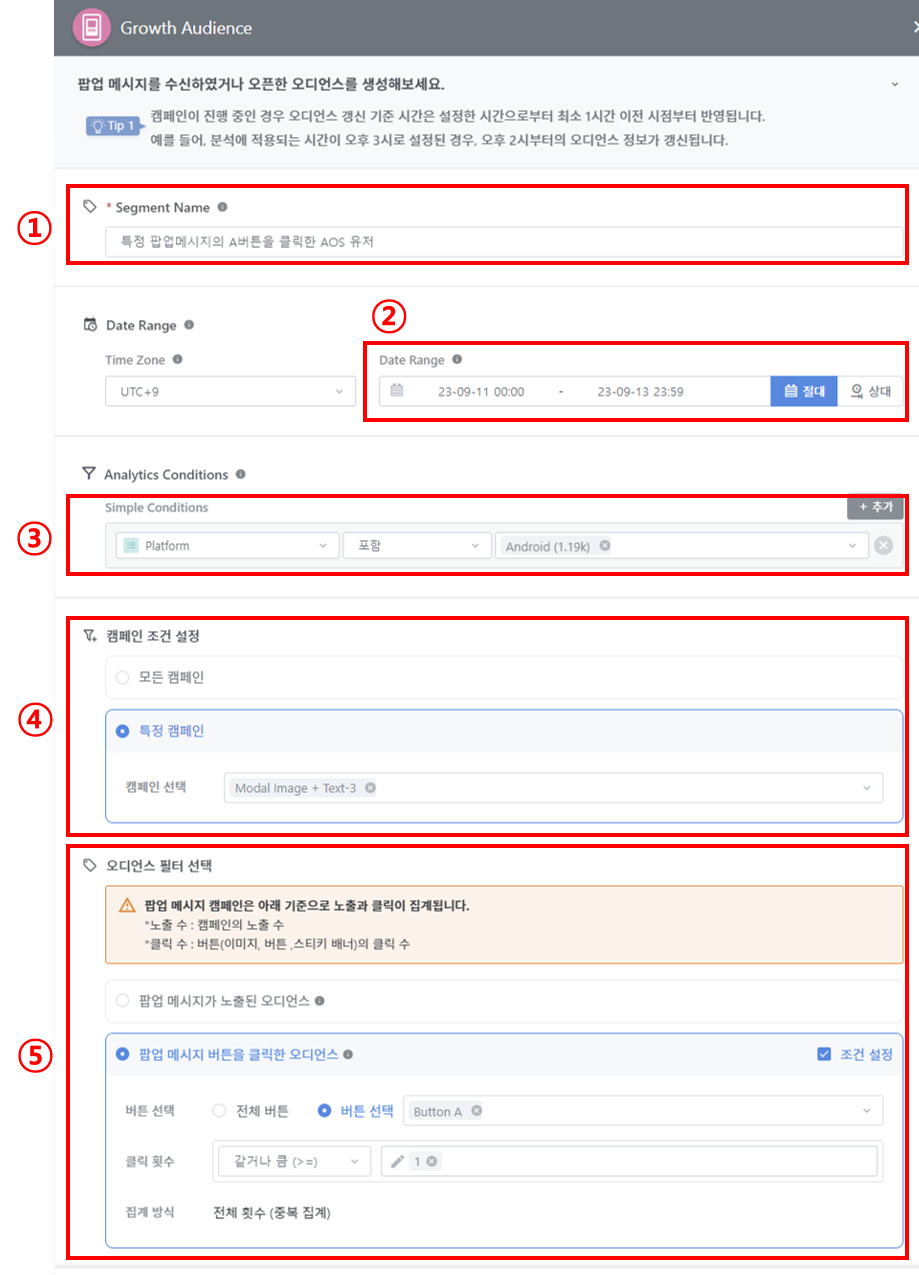

STEP 1. Create a segment
item | explanation |
① Segment Name | Set segment name |
② Date Range | Set audience extraction period |
③ Simple Conditions | Platform > Include > Android: Includes only performance generated on AOS |
③ Setting campaign conditions |
Select a specific campaign > Pop-up message campaign name |
④ Select audience filter |
'Audiences who clicked the pop-up message button' - Button selection > Button A: Only includes results of clicking Button A set when setting the pop-up message. - Click count > greater than or equal to (≥) > 1: Includes only results where Button A was clicked at least once. |

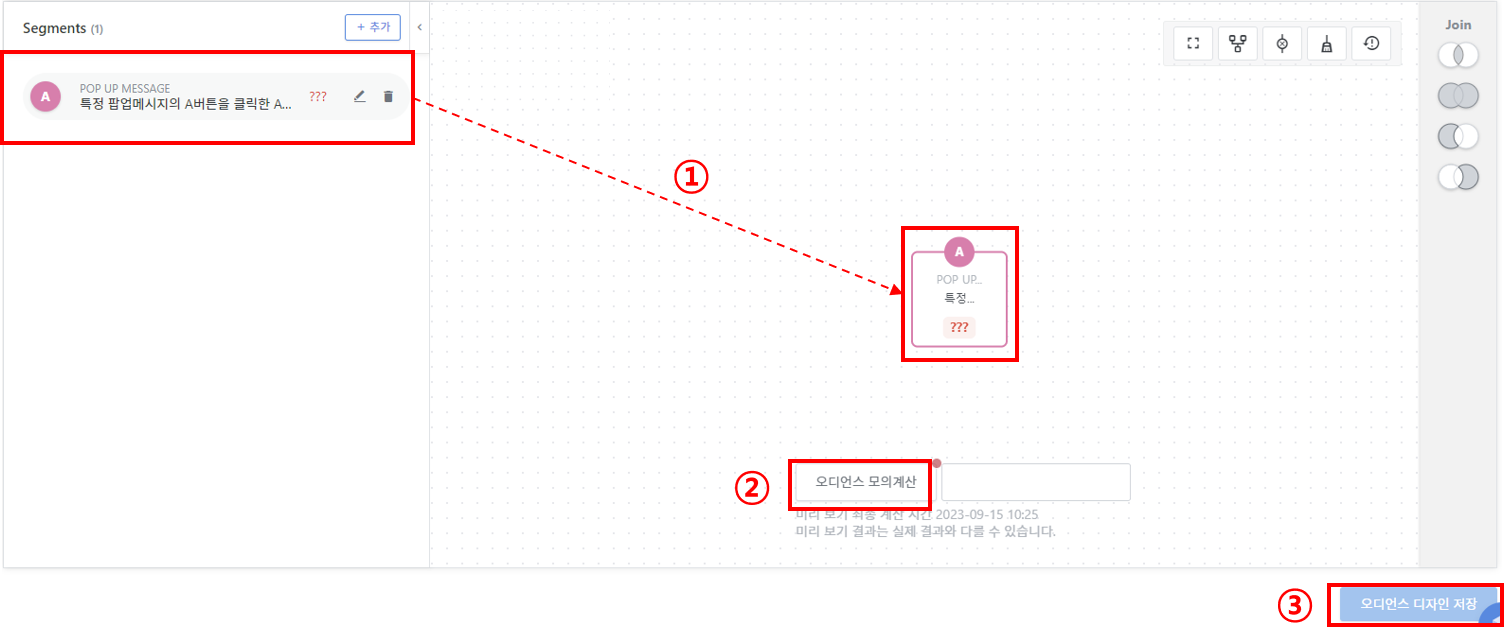

STEP 2. Segment Combination
Combination order |
① Drag & drop the segment created on the left onto the canvas. |
② Click the ‘Audience Mock Calculation’ button |
③ Click the ‘Save Audience Design’ button at the bottom right. |
