Integrating Growth Action [Android]

Getting Started

DFINERY Growth Action provides functions to help customers engage with their engagement marketing activities.

[Learn about the Growth Action service]

Using the functions provided by DFINERY, you can create audience groups and conduct personalized marketing targeting each audience.

[[Quote: Guide: Normal]] To use Growth Action, you must use the DFINERY paid plan.[ Contact Us ]

Notification subscription and opt-out settings

Definery To integrate the growth action feature, you need to set up subscription settings for notifications. The SDK allows subscription and unsubscription settings not only for push notifications but also for other channels, and it also provides the ability to retrieve the currently set values.

Subscribe and Unsubscribe Notifications

After setting subscription information using SubscriptionStatus.Builder, pass the set information to the server with the setSubscriptionStatus method.

[[Quote:Risk:Moderate]] Precautions
Consent to receive informational notifications is a higher-level item that includes consent to receive promotional notifications. Therefore, if the consent to receive informational notifications is UNSUBSCRIBED, promotional push notifications will not be sent even if consent to receive promotional notifications and nighttime promotional notifications is SUBSCRIBED.

[[Citation: Risk: Moderate]] Notice
Notifications may be sent if there is no setting history according to the sending logic, so please be sure to set items for which you do not wish to receive notifications to UNSUBSCRIBED.

[[Quote:Risk:Moderate]] Note
If you use this API without calling the login(String user_Id) API, only informational notifications can be used, and it will be classified as a device-based audience. To use user-based audiences and promotional notifications, the login(String user_Id) call must be made first.

• Create Subscription Information
  • SubscriptionStatus.Builder
    • setInformativeNotificationFlag() : Set consent for receiving informative notifications
    • setMarketingNotificationFlag() : Set consent for receiving marketing notifications
    • setMarketingNotificationFlagForPushChannel() : Set consent for receiving marketing notifications (Push Channel)
    • setMarketingNotificationFlagForSmsChannel() : Set consent for receiving marketing notifications (SMS Channel)
    • setMarketingNotificationFlagForKakaoChannel() : Set consent for receiving marketing notifications (KakaoTalk Channel)
    • setMarketingNotificationAtNightFlag() : Set consent for receiving marketing notifications at night
    • setMarketingNotificationAtNightFlagForPushChannel() : Set consent for receiving marketing notifications at night (Push Channel)
    • setMarketingNotificationAtNightFlagForSmsChannel() : Set consent for receiving marketing notifications at night (SMS Channel)
    • setMarketingNotificationAtNightFlagForKakaoChannel() : Set consent for receiving marketing notifications at night (KakaoTalk Channel)
  • SubscriptionStatus.Type
    • SUBSCRIBED : Consented
    • UNSUBSCRIBED : Not Consented
  • SetSubscriptionStatusResult
    • isSuccess() : Whether it was successfully applied on the server
    • getResultCode() : Get result code
    • getResultMessage() : Get result message

SubscriptionStatus subscriptionStatus = new SubscriptionStatus.Builder()
  .setInformativeNotificationFlag(SubscriptionStatus.Type.SUBSCRIBED)
  .setMarketingNotificationFlag(SubscriptionStatus.Type.SUBSCRIBED)
  .setMarketingNotificationFlagForPushChannel(SubscriptionStatus.Type.UNSUBSCRIBED)
  .setMarketingNotificationFlagForSmsChannel(SubscriptionStatus.Type.SUBSCRIBED)
  .setMarketingNotificationFlagForKakaoChannel(SubscriptionStatus.Type.SUBSCRIBED)
  .setMarketingNotificationAtNightFlag(SubscriptionStatus.Type.UNSUBSCRIBED)
  .setMarketingNotificationAtNightFlagForPushChannel(SubscriptionStatus.Type.UNSUBSCRIBED)
  .setMarketingNotificationAtNightFlagForSmsChannel(SubscriptionStatus.Type.UNSUBSCRIBED)
  .setMarketingNotificationAtNightFlagForKakaoChannel(SubscriptionStatus.Type.SUBSCRIBED)
  .build();

val subscriptionStatus = SubscriptionStatus.Builder()
  .setInformativeNotificationFlag(SubscriptionStatus.Type.SUBSCRIBED)
  .setMarketingNotificationFlag(SubscriptionStatus.Type.SUBSCRIBED)
  .setMarketingNotificationFlagForPushChannel(SubscriptionStatus.Type.UNSUBSCRIBED)
  .setMarketingNotificationFlagForSmsChannel(SubscriptionStatus.Type.SUBSCRIBED)
  .setMarketingNotificationFlagForKakaoChannel(SubscriptionStatus.Type.SUBSCRIBED)
  .setMarketingNotificationAtNightFlag(SubscriptionStatus.Type.UNSUBSCRIBED)
  .setMarketingNotificationAtNightFlagForPushChannel(SubscriptionStatus.Type.UNSUBSCRIBED)
  .setMarketingNotificationAtNightFlagForSmsChannel(SubscriptionStatus.Type.UNSUBSCRIBED)
  .setMarketingNotificationAtNightFlagForKakaoChannel(SubscriptionStatus.Type.SUBSCRIBED)
  .build()

• Reflect Subscription Information
  • SubscriptionStatus.Type
    • SUBSCRIBED : Agreed
    • UNSUBSCRIBED : Not Agreed
    • UNDEFINED : No Setting History
  • GetSubscriptionStatusResult
    • isSuccess() : Whether it was applied correctly on the server
    • getResultCode() : Get result code
    • getResultMessage() : Get result message
    • getInformativeNotificationFlag() : Get consent value for receiving informational notifications
    • getMarketingNotificationFlag() : Get consent value for receiving marketing notifications
    • getMarketingNotificationFlagForPushChannel() : Get consent value for receiving marketing notifications (Push Channel)
    • getMarketingNotificationFlagForSmsChannel() : Get consent value for receiving marketing notifications (SMS Channel)
    • getMarketingNotificationFlagForKakaoChannel() : Get consent value for receiving marketing notifications (KakaoTalk Channel)
    • getMarketingNotificationAtNightFlag() : Get consent value for receiving marketing notifications at night
    • getMarketingNotificationAtNightFlagForPushChannel() : Get consent value for receiving marketing notifications at night (Push Channel)
    • getMarketingNotificationAtNightFlagForSmsChannel() : Get consent value for receiving marketing notifications at night (SMS Channel)
    • getMarketingNotificationAtNightFlagForKakaoChannel() : Get consent value for receiving marketing notifications at night (KakaoTalk Channel)

AdBrixRm.setSubscriptionStatus(subscriptionStatus, new AdBrixRm.SetSubscriptionStatusCallback() {
    @Override
    public void onCallback(SetSubscriptionStatusResult result) {
        if(result.isSuccess()){
            ...
        }
    }
});

AdBrixRm.setSubscriptionStatus(subscriptionStatus, AdBrixRm.SetSubscriptionStatusCallback {
    if(it.isSuccess){
        ...
    }
})

[[Quote:Warning:Normal]] Push on/off confirmation
For the notification push channel, it is separate from the device's Push on/off settings, so please refer to the Push on/off section below and set Push to On if you wish to use push notifications.

Get notification settings value

The getSubscriptionStatus method retrieves the information set on the server.

AdBrixRm.getSubscriptionStatus(new AdBrixRm.GetSubscriptionStatusCallback() {
    @Override
    public void onCallback(GetSubscriptionStatusResult result) {
	if(result.isSuccess()){
	    SubscriptionStatus.Type infoFlag = result.getInformativeNotificationFlag();
	    SubscriptionStatus.Type mktFlag = result.getMarketingNotificationFlag();
	    SubscriptionStatus.Type mktPushFlag = result.getMarketingNotificationFlagForPushChannel();
	    SubscriptionStatus.Type mktSmsFlag = result.getMarketingNotificationFlagForSmsChannel();
	    SubscriptionStatus.Type mktKakaoFlag = result.getMarketingNotificationFlagForKakaoChannel();
	    SubscriptionStatus.Type nightFlag = result.getMarketingNotificationAtNightFlag();
	    SubscriptionStatus.Type nightPushFlag = result.getMarketingNotificationAtNightFlagForPushChannel();
	    SubscriptionStatus.Type nightSmsFlag = result.getMarketingNotificationAtNightFlagForSmsChannel();
	    SubscriptionStatus.Type nightKakaoFlag = result.getMarketingNotificationAtNightFlagForKakaoChannel();
	}
    }
});

AdBrixRm.getSubscriptionStatus {
    if(it.isSuccess){
        val infoFlag = it.informativeNotificationFlag;
        val mktFlag = it.marketingNotificationFlag
        val mktPushFlag = it.marketingNotificationFlagForPushChannel
        val mktSmsFlag = it.marketingNotificationAtNightFlagForSmsChannel
        val mktKakaoFlag = it.marketingNotificationFlagForKakaoChannel
        val nightFlag = it.marketingNotificationAtNightFlag
        val nightPushFlag = it.marketingNotificationAtNightFlagForPushChannel
        val nightSmsFlag = it.marketingNotificationAtNightFlagForSmsChannel
        val nightKakaoFlag = it.marketingNotificationAtNightFlagForKakaoChannel
    }
}

Push Service Default Settings

Required

In order to integrate the push function, the DFINERY (Adbrix) basic SDK and Firebase Cloud Messaging SDK (hereinafter referred to as FCM) are required.
You must complete the basic adbrix integration steps to be able to integrate with Growth Action.

• DFINERY (Adbrix) basic SDK - Integrating DFINERY [Android]
• FCM SDK - Setting up Firebase Cloud Messaging Client App on Android

[[Caution: Risk: Moderate]]NoticeThe sending method using Firebase Server Key and Sender ID will no longer be supported after June 13, 2024, due to the discontinuation of support for the existing Firebase HTTP API. Please integrate according to the Firebase certificate issuance and registration guide introduced below.

Issuing a Firebase Certificate

1. Access the service account .

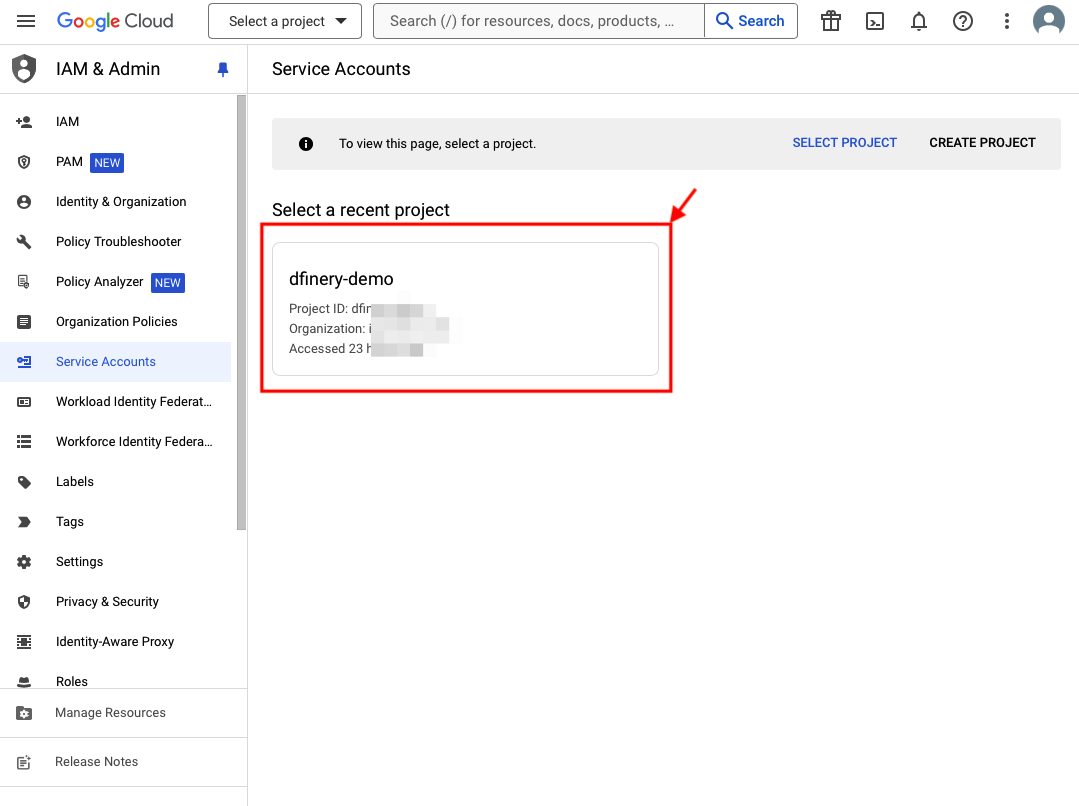

2. Select the project for which you want to issue a key.

If there is no project, it means that the Firebase project has not been created, so refer to Adding Firebase to your Android project to create a Firebase project.

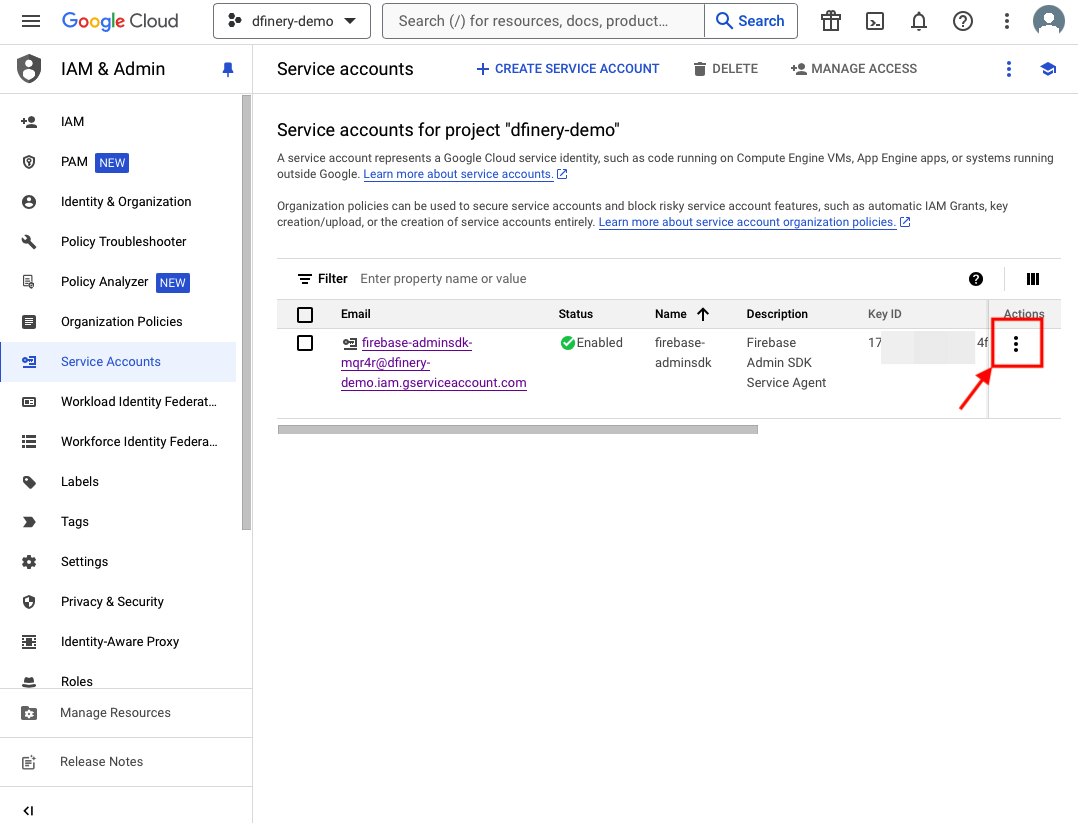

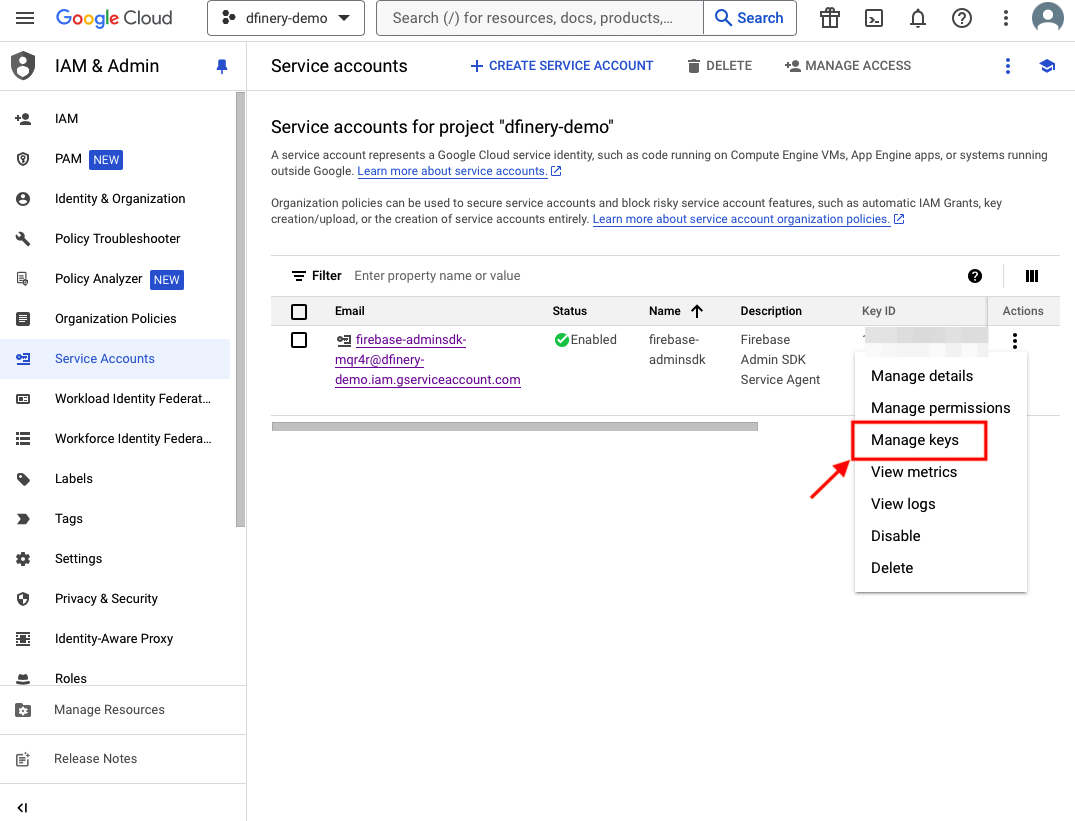

3. Click on ⋮ in the task at the bottom right.

4. Click on Key Management from the dropdown.

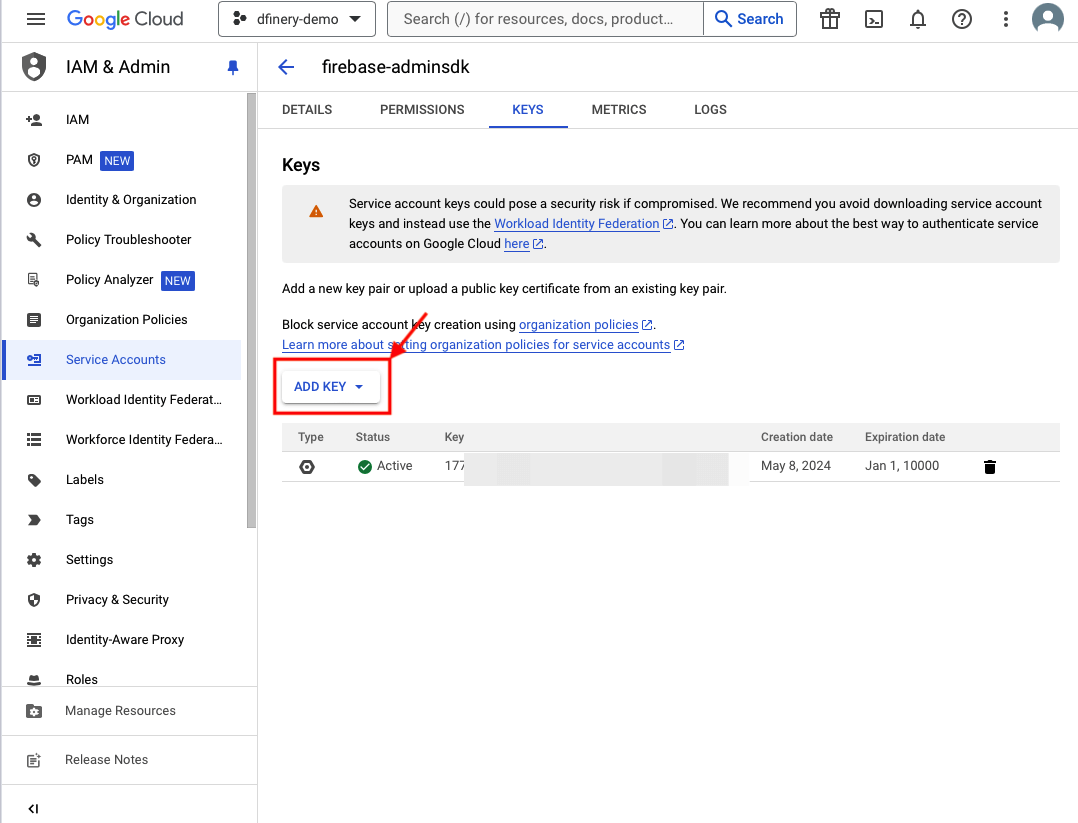

5. Select Add Key.

If a key has already been generated, it means there is a history of a previously generated key, and you can use that key. If the key cannot be found, please generate a new key.

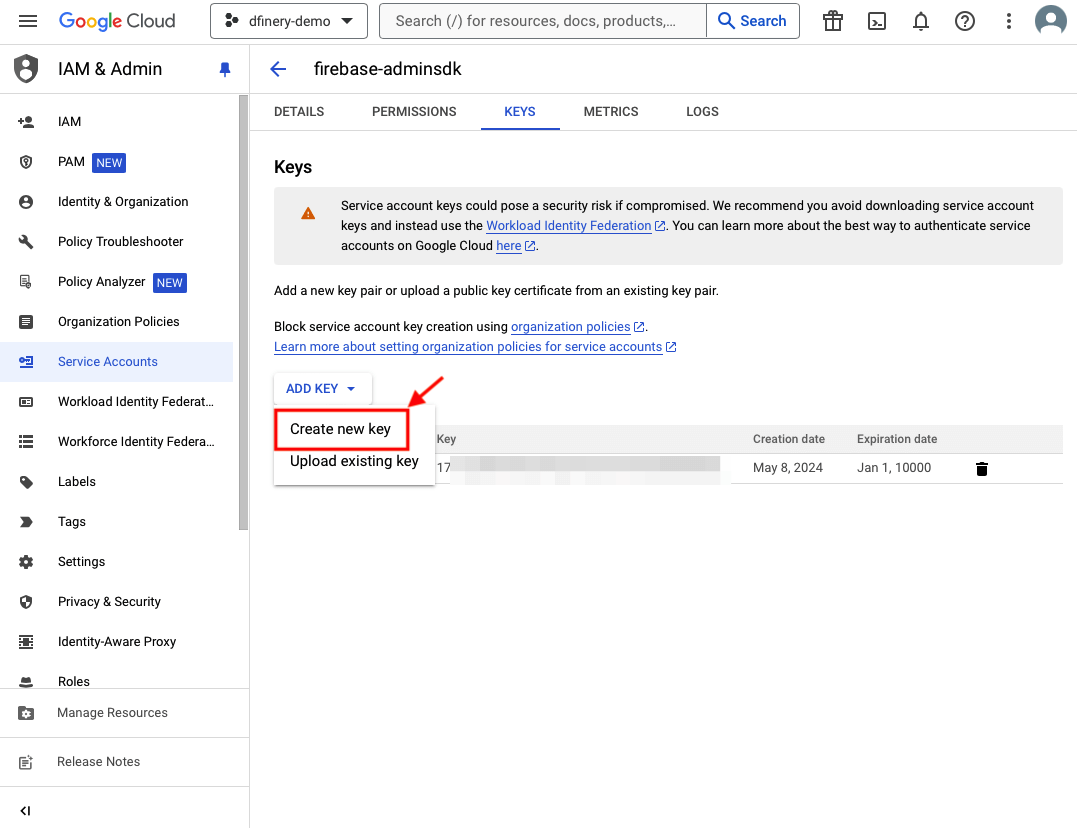

6. Click Create New Key from the dropdown.

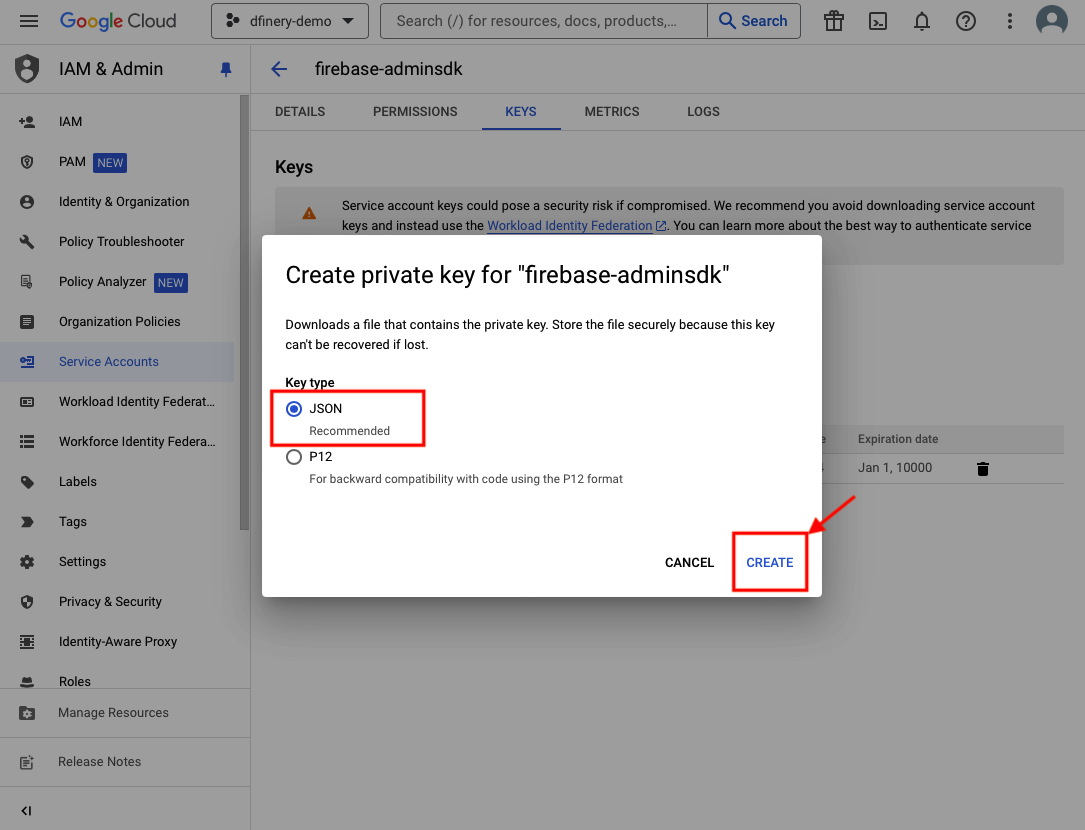

7. Select JSON and click create.

8. The key issuance has been completed.

Register Firebase certificate in console

[[Citation:Warning:Normal]] Console setup opening date
The feature to register Firebase certificates in the console is scheduled to open on June 13th.

1.Access the console .

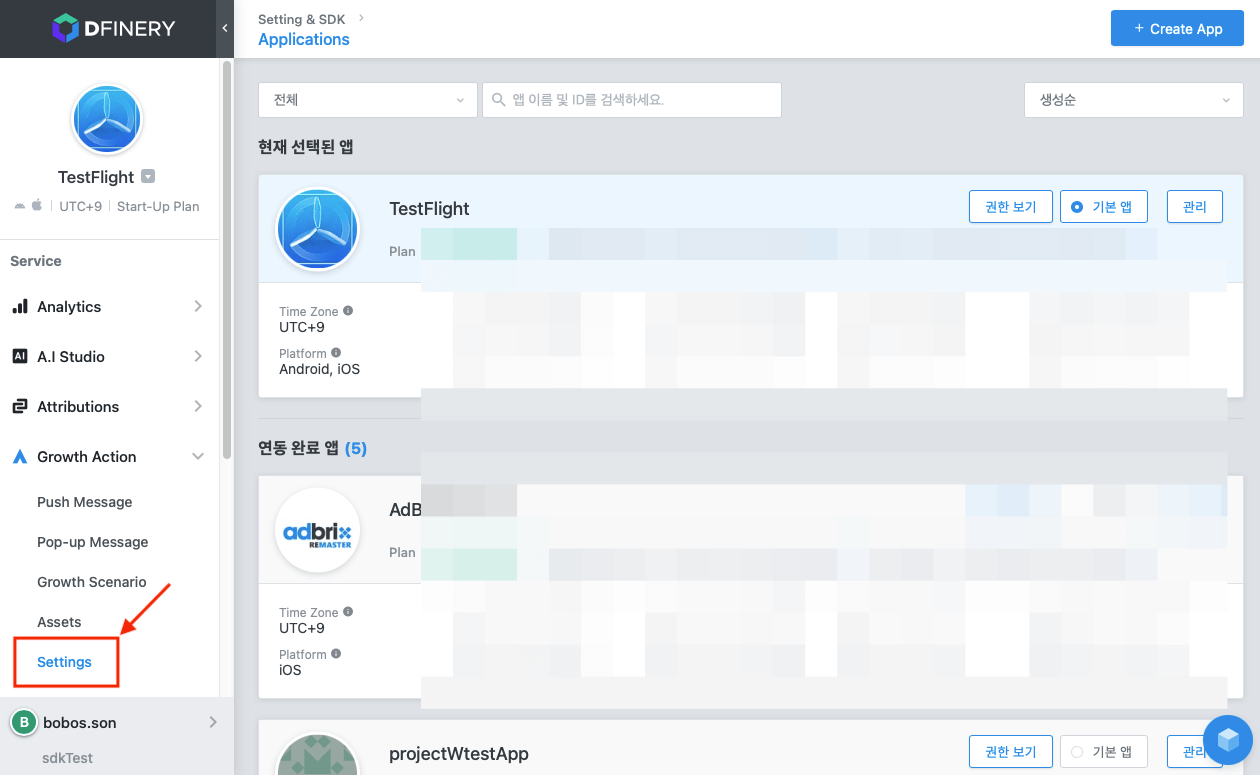

2. Click on Settings of GrowthAction in the left panel.

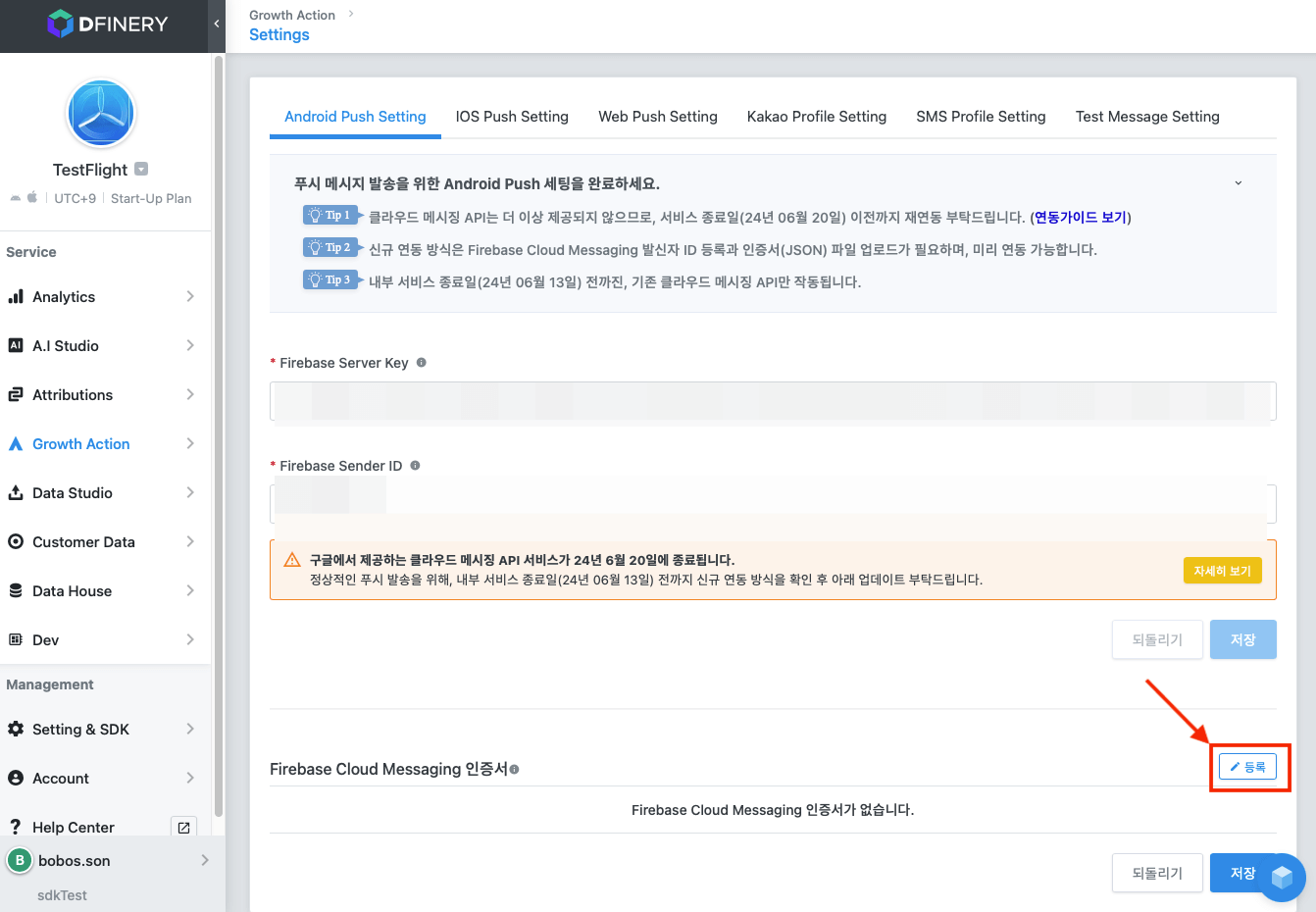

3. In the Android Push Setting tab, click Register in the Firebase Cloud Messaging certificate.

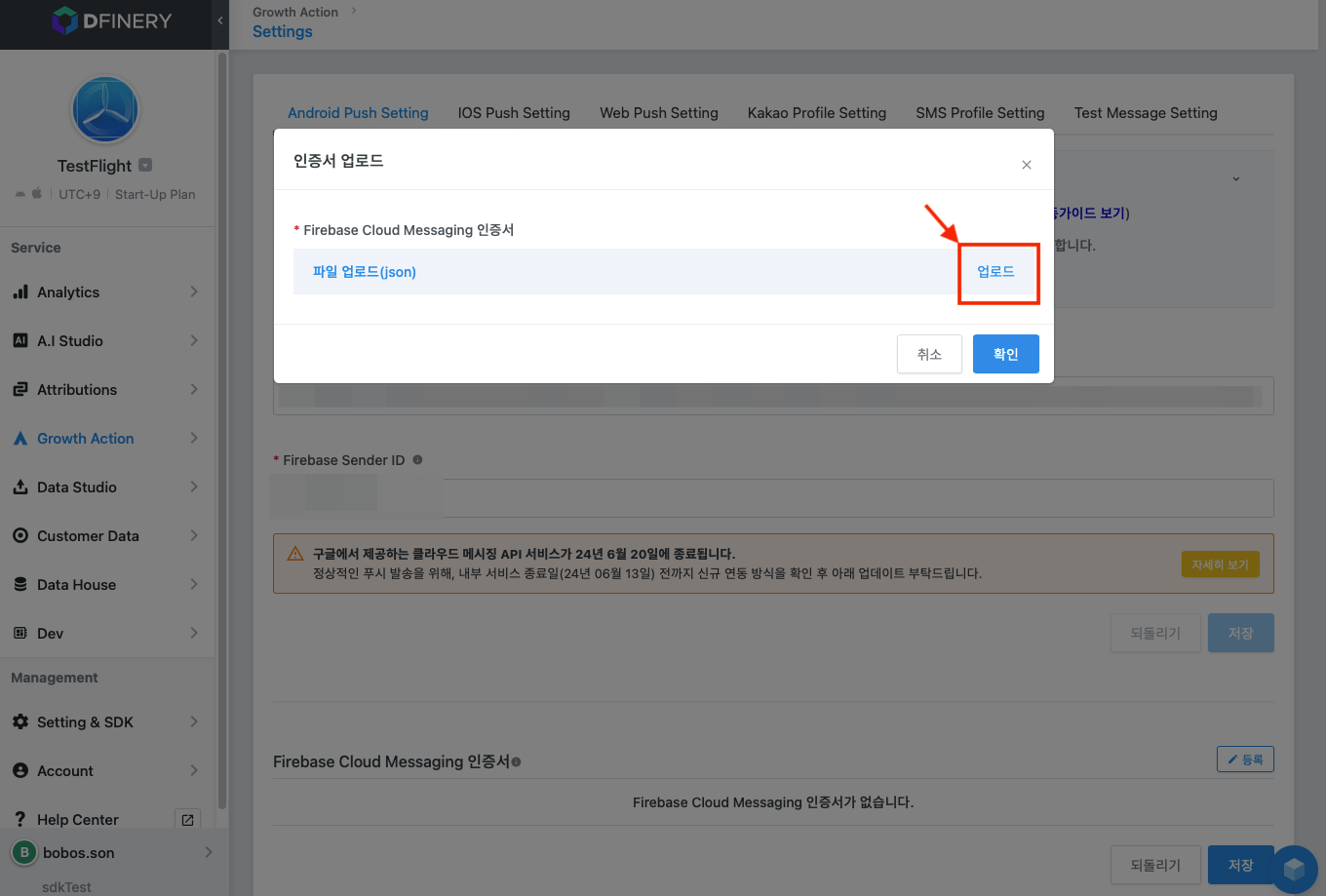

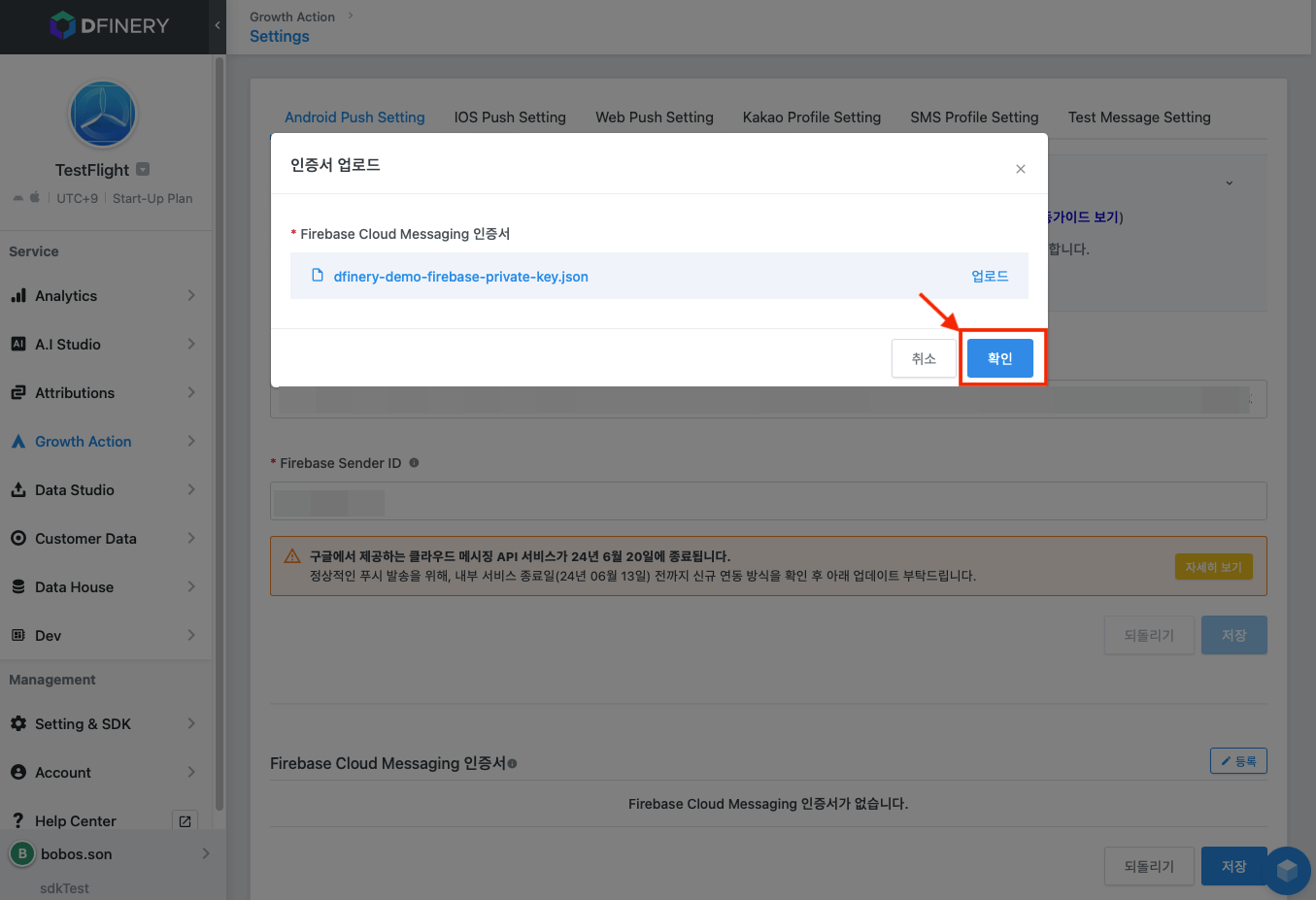

4. Click the upload button to upload the key.

5. After completing the upload, click the confirm button.

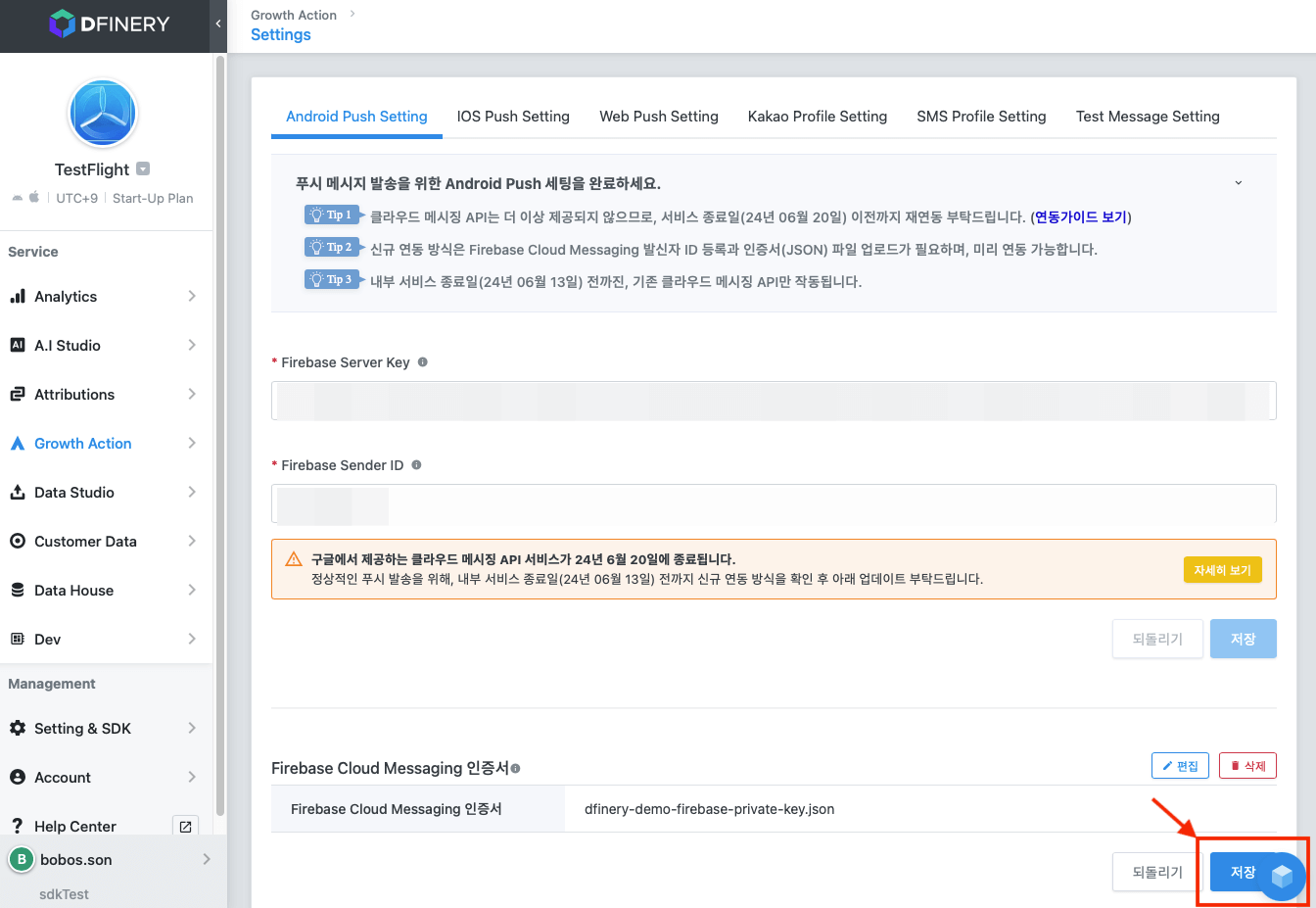

6. Click Save to apply the certificate.

7. The certificate has been registered in the console.

Push notification settings

Register the following receiver in AndroidManifest.xml.

<receiver android:name="com.igaworks.v2.core.push.notification.AbxPushReceiver"
        android:exported="true"
        android:permission="com.google.android.c2dm.permission.SEND">
    <intent-filter>
        <action android:name="com.google.android.c2dm.intent.RECEIVE"/>;
        <action android:name="com.igaworks.v2.core.pushServiceImplement.CLIENT_PUSH_RECEIVE"/>
    </intent-filter>
</receiver>

In the onMessageReceived of the FirebaseMessagingService you wrote, set up push reception using AdBrixRm.onMessageReceived.

public class MyFirebaseMessagingService extends FirebaseMessagingService {
    @Override
    public void onMessageReceived(@NonNull RemoteMessage remoteMessage) {
        super.onMessageReceived(remoteMessage);
        AdBrixRm.onMessageReceived(getApplicationContext(), remoteMessage);
    }
}

class MyFirebaseMessagingService :FirebaseMessagingService() {

    override fun onMessageReceived(message: RemoteMessage) {
        super.onMessageReceived(message)
        AdBrixRm.onMessageReceived(applicationContext, message)
    }
}

Set Token Value

To set the Token value of Firebase in adbrix, add the Token value using AdBrixRm.setRegistrationId within onNewToken() of FirebaseMessagingService.

public class MyFirebaseMessagingService extends FirebaseMessagingService{

    @Override
    public void onNewToken(String token){
        //Example to check the registered push token value.
        Log.d(TAG, "Refreshed token: " + token);

        //Integrate the push token as follows.
        AdBrixRm.setRegistrationId(token);
    }

}

class MyFirebaseMessagingService : FirebaseMessagingService(){

    override
    fun onNewToken(token: String?) {
        //This is an example of checking the registered push token value.
        Log.d(TAG, "Refreshed token: $token")

        //Integrate the push token as follows.
        AdBrixRm.setRegistrationId(token)
    }
}

And add the following code so that the Token value can be updated in the Application you are using.

public class MyApplicationClass extends Application {
    @Override
    public void onCreate() {
        super.onCreate();
        refreshToken();
    }
    private void refreshToken(){
        FirebaseMessaging.getInstance().getToken()
            .addOnCompleteListener(new OnCompleteListener<String>() {
                @Override
                public void onComplete(@NonNull Task<String> task) {
                    if (!task.isSuccessful()) {
                        return;
                    }
                    String token = task.getResult();
                    AdBrixRm.setRegistrationId(token);
                }
            });
    }
}

class MyApplicationClass : Application() {
    override fun onCreate() {
        super.onCreate()
        refreshToken()
    }
    private fun refreshToken(){
        FirebaseMessaging.getInstance().token.addOnCompleteListener(OnCompleteListener { task ->
            if (!task.isSuccessful) {
                return@OnCompleteListener
            }
            val token = task.result
            AdBrixRm.setRegistrationId(token)
        })
    }
}

Push on / off

This is a mandatory API that must be integrated to use the adbrix Gross Action service. This API allows you to manage push services.

AdBrixRm.setPushEnable(true);   // Push On
AdBrixRm.setPushEnable(false);  // Push Off

AdBrixRm.setPushEnable(true)   // Push On
AdBrixRm.setPushEnable(false)  // Push Off

[[Quote:Warning:Normal]] Check Default Settings
The default setting of the dictionary is 'Push off'.
Therefore, after completing the growth action integration, you must call the Push On API after obtaining push reception consent from users.
For users who have previously given consent for push reception, you must also call the Push On API to receive pushes.

Push Notification Runtime Permission Request

On Android 13 and above, obtaining android.permission.POST_NOTIFICATIONS runtime permission is required to receive push notifications on the device.Please refer to the following guide to obtain runtime permissions in the app.

• Notification Runtime Permission

[[Quote:Guide:Normal]] Congratulations~!
Definery basic integration for Growth Action service has been completed.
From then on, you can receive server pushes, and please continue integration to set local push and other push message options.

Additional Push Service Settings

KakaoTalk Settings

Settings for using Kakao Notification Talk and Friend Talk. *KAKAOID: 10-digit Kakao ID received through Kakao Sync API

AdBrixRm.setKakaoId("KAKAOID", new SetCiProfileCallback() {
    @Override
    public void onCallback(SetCiProfileResult result) {
        if(result.isSuccess()){
            Log.d(TAG, "Success: " + result.getResultCode());
//If the format of kakaoId is incorrect, isSuccess will be false.
        } else {
            Log.d(TAG, "Failure: " + result.getResultMessage());
        }
    }
});

AdBrixRm.setKakaoId("KAKAOID", object : SetCiProfileCallback {
    override fun onCallback(result: SetCiProfileResult) {
        if(result.isSuccess) {
            println("Success: ${result.resultCode}")
//If the format of kakaoId is incorrect, isSuccess will be false.
        } else {
            println("Failure: ${result.resultMessage}")
        }
    }
})

[[Quote:Warning:Small]] This API is available after logging in.

SMS Settings

This is the setting for using SMS. *PHONE_NUMBER : Value excluding "+" from country code + number following E.164 (Example: 8210********)

AdBrixRm.setPhoneNumber("PHONE_NUMBER", new SetCiProfileCallback() {
    @Override
    public void onCallback(SetCiProfileResult result) {
        if(result.isSuccess()){
            Log.d(TAG, "Success: " + result.getResultCode());
//If the phoneNumber format is incorrect, isSuccess will be false.
        } else {
            Log.d(TAG, "Failure: " + result.getResultMessage());
        }
    }
});

AdBrixRm.sePhoneNumber("PHONE_NUMBER", object : SetCiProfileCallback {
    override fun onCallback(result: SetCiProfileResult) {
        if(result.isSuccess) {
            println("Success: ${result.resultCode}")
//If the format of phoneNumber is incorrect, isSuccess becomes false.
        } else {
            println("Failure: ${result.resultMessage}")
        }
    }
})

[[Quote:Warning:Small]] PHONE_NUMBER: Value excluding "+" from country code + number compliant with E.164 (Example: 8210********)

[[Quote:Warning:Small]] This API can be used after logging in.

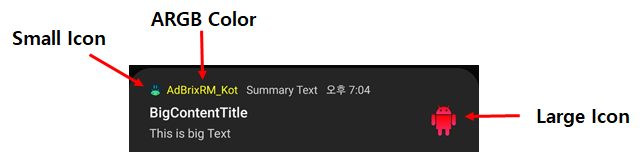

Push icon and color settings

Sets the color of the icon and app name displayed when receiving a push.

AdBrixRm.setPushIconStyle(this,"smallicon","largeicon",Color.argb(1,255,0,0));     //Using Color class ARGB
AdBrixRm.setPushIconStyle(this,"smallicon","largeicon",AdBrixRm.PushColor.Yellow); // Using AdBrixRm class

AdBrixRm.setPushIconStyle(this,"smallicon","largeicon",Color.argb(1,255,0,0))     //Using Color class ARGB
AdBrixRm.setPushIconStyle(this,"smallicon","largeicon",AdBrixRm.PushColor.Yellow) // Using AdBrixRm class

//channelName, channelDescription
AdBrixRm.createDefaultNotificationChannel("myPushChannelName", "my Channel description");

//channelName, channelDescription
 AdBrixRm.createDefaultNotificationChannel("myPushChannelName", "my Channel description")

AdBrixRm.setNotificationOption(this,NotificationCompat.PRIORITY_MIN,NotificationCompat.VISIBILITY_SECRET);

AdBrixRm.setNotificationOption(this,NotificationCompat.PRIORITY_MIN,NotificationCompat.VISIBILITY_SECRET)

public class MyApplication extends Application{

    @Override
    public void onCreate() {
        super.onCreate();

        //SDK init API must call first
        AbxActivityHelper.initializeSdk(MyApplicationClass.this, "your_adbrix_remastered_app_key", "your_adbrix_remastered_secret_key");


        AdBrixRm.setOnRemotePushClickListener(new AdBrixRm.onRemotePushClickListener() {
            @Override
            public void onClick(OnRemotePushClickResult result) {
                ...
            }
        });
        AdBrixRm.setOnLocalPushClickListener(new AdBrixRm.onLocalPushClickListener() {
            @Override
            public void onClick(OnLocalPushClickResult result) {
                ...
            }
        });
    }
}

class MyApplication: Application(){

    override fun onCreate() {
        super.onCreate()

        //SDK init API must call first
        AbxActivityHelper.initializeSdk(applicationContext , "your_adbrix_remastered_app_key", "your_adbrix_remastered_secret_key");

        AdBrixRm.setOnRemotePushClickListener {
            ...
        }
        AdBrixRm.setOnLocalPushClickListener {
            ...
        }
    }
}

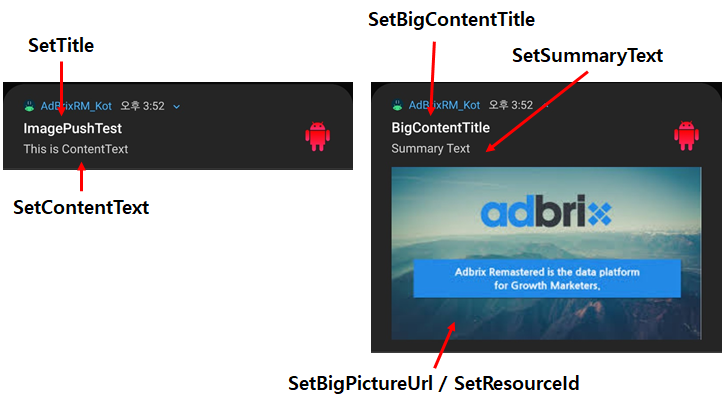

AdBrixRm.notifyLocalPushNotification("PushTest", "This is ContentText", "adbrixrm://main");

AdBrixRm.notifyLocalPushNotification("PushTest", "This is ContentText", "adbrixrm://main")

AdBrixRm.notifyLocalPushNotification("PushTest", "This is ContentText", "adbrixrm://main","http://myimage/image.png");

AdBrixRm.notifyLocalPushNotification("PushTest", "This is ContentText", "adbrixrm://main","http://myimage/image.png")

List<PushEvent> localPushList = AdBrixRm.getRegisteredLocalPushNotification();   // Current Local push List
AdBrixRm.cancelLocalPushNotificationAll(this);        // Cancel the Local Push

>val localPushList = AdBrixRm.getRegisteredLocalPushNotification()   // Current Local push List
AdBrixRm.cancelLocalPushNotificationAll(this)        // Cancel the Local Push

Dfinery.getInstance().setCustomInAppMessageParentView(findViewById(R.id.container));

Dfinery.getInstance().setCustomInAppMessageParentView(findViewById(R.id.container))

public class MainApplication extends Application implements AdBrixRm.InAppMessageClickListener{

    @Override
    public void onCreate() {
        AdBrixRm.setInAppMessageClickListener(this);
    }

    @Override
    public void onReceiveInAppMessageClick(String actionId, String actionType, String actionArg, boolean isClosed) {
        Log.d("abxrm", "onReceiveInAppMessageClick actionId = " + actionId);
        Log.d("abxrm", "onReceiveInAppMessageClick actionType = " + actionType);
        Log.d("abxrm", "onReceiveInAppMessageClick actionArg = " + actionArg);
        Log.d("abxrm", "onReceiveInAppMessageClick isClosed = " + isClosed);
    }

}

class MainApplication: Application(), AdBrixRm.InAppMessageClickListener {

    override fun onCreate() {
        super.onCreate()

        AdBrixRm.setInAppMessageClickListener(this)

    }

    override fun onReceiveInAppMessageClick(actionId: String, actionType: String, actionArg: String, isClosed: Boolean) {

        Log.d("abxrm", "onReceiveInAppMessageClick actionId = " + actionId);
        Log.d("abxrm", "onReceiveInAppMessageClick actionType = " + actionType);
        Log.d("abxrm", "onReceiveInAppMessageClick actionArg = " + actionArg);
        Log.d("abxrm", "onReceiveInAppMessageClick isClosed = " + isClosed);

    }
}

AdBrixRm.getSelfServeInAppMessages(new AdBrixRm.GetSelfServeInAppMessagesCallback() {
    @Override
    public void onCallback(List<SelfServeInAppMessage> list) {

    }
});


AdBrixRm.getSelfServeInAppMessages {

}

//Find one in-app message with the value of {keyWhatIFound}
AdBrixRm.getSelfServeInAppMessages(new AdBrixRm.GetSelfServeInAppMessagesCallback() {
    @Override
    public void onCallback(List<SelfServeInAppMessage> list) {
        SelfServeInAppMessage foundInAppMessage = null;
        for(SelfServeInAppMessage inAppMessage: list){
            if(inAppMessage.getExtAttr().has("{keyWhatIFound}")){
                foundInAppMessage = inAppMessage;
            }
        }
    }
});


//Find a single in-app message with the additional setting {keyWhatIFound} value
AdBrixRm.getSelfServeInAppMessages {
    var foundInAppMessage: SelfServeInAppMessage
    for (inAppMessage in it){
    val extAttr = inAppMessage.extAttr
    if(extAttr!=null){
        if(extAttr.has("keyWhatIFound")){
                foundInAppMessage = inAppMessage
            }
        }
    }
}


if(foundInAppMessage != null){
    AdBrixRm.openInAppMessage(foundInAppMessage.campaignId, new Completion() {
        @Override
        public void handle(Result emptyResult) {
            Log.d(TAG, emptyResult.toString());
        }
    });
}


if(foundInAppMessage != null){
  AdBrixRm.openInAppMessage(foundInAppMessage.campaignId, Completion {
 Log.d(TAG, it.toString())
 })
}
