Integrating DFINERY (Adbrix) [Android]
FollowQuick Start
We guide you through the minimum integration steps to use DFINERY (Adbrix).
If you follow the guide below and complete [ Gradle Settings -> Proguard Settings ],
- You can check basic indicators such as DAU in the DFINERY (Adbrix) console.
- You can track app install advertisements through tracking links.
[[인용:보통:위험]]
System Requirements
Definery (Adbrix) Android SDK operates in the following environments.
1. Build environment: Android Studio
2. Android Min SDK version: 14 or higher
Gradle settings
DFINERY (Adbrix) supports SDK download and installation through gradle.

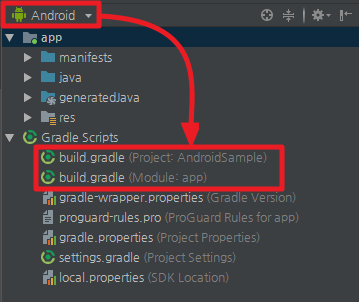

It is more convenient to change the View to Android type for Gradle settings.
Add the following content to the [ build.gradle (Project: ProjectName) ] file.
[[Quote:Risk:Moderate]] 2021.05.03 Bintray service has been terminated.
We are distributing the library using mavenCentral. Please modify the gradle settings as follows. Please delete the existing jcenter() as it is no longer used.
allprojects { repositories { google()
jcenter() //delete this. mavenCentral() } }
Add dependency to the [ build.gradle (Module: app) ] file as follows.
android { compileOptions { sourceCompatibility JavaVersion.VERSION_1_8 targetCompatibility JavaVersion.VERSION_1_8 } } dependencies { implementation 'com.google.android.gms:play-services-ads-identifier:18.0.1' implementation 'com.android.installreferrer:installreferrer:2.2' implementation 'io.dfinery:android-sdk:2.5.1.3' } //If jetifier cannot be used android { compileOptions { sourceCompatibility JavaVersion.VERSION_1_8 targetCompatibility JavaVersion.VERSION_1_8 } } dependencies { implementation 'com.google.android.gms:play-services-ads-identifier:18.0.1' implementation 'com.android.installreferrer:installreferrer:2.2' implementation ( 'io.dfinery:android-sdk:2.5.1.3' ) {
exclude group : "com.android.installreferrer"
} }
[[Quote:Risk:Moderate]] * To prevent fraudulent traffic, be sure to add
com.android.installreferrer:installreferrer
.
* To obtain Google Advertising ID and media advertising, you must add
com.google.android.gms:play-services-ads-identifier
.
# installreferrer If a Java class duplication error occurs, please set the definition library as follows.
implementation ( 'io.dfinery:android-sdk:2.5.1.3' ) {
exclude group : "com.android.installreferrer"
}

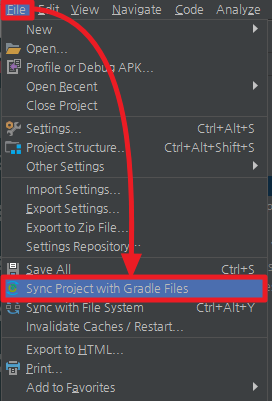

After writing all Gradle scripts, install the SDK through [File > Sync Project with Gradle Files] in Android Studio.
Required permission settings
DFINERY (Adbrix) SDK requires the following permissions.
Set in [ AndroidManifest.xml > manifest ] as follows.
<manifest> ... <uses-permission android:name="android.permission.INTERNET" /> <uses-permission android:name="android.permission.ACCESS_NETWORK_STATE" /> <uses-permission android:name="com.google.android.gms.permission.AD_ID" /> ... </manifest>
SDK initialization
There are two ways to initialize the DFINERY (Adbrix) SDK.
Initialize the SDK according to the development environment.
- Using DFINERY (Adbrix) application class
- Use your own application class
1.Use Definery (Adbrix) application class
If you do not have a self-implemented application, you can quickly and easily initialize the SDK using the application class provided by the DFINERY (Adbrix) SDK.
Set in [ AndroidManifest.xml > application ] as follows.
<application android:name="com.igaworks.v2.core.application.AbxApplication" ... >
<meta-data android:name="AdBrixRmAppKey" android:value="your_adbrix_remastered_app_key" />
<meta-data android:name="AdBrixRmSecretKey" android:value="your_adbrix_remastered_secret_key" /> </application>
2.Use your own application class
If you have a self-implemented application class, set onCreate() of that class as follows.
<application android:name=".MyApplicationClass" ... > </application>
public class MyApplicationClass extends Application { @Override public void onCreate() { super.onCreate(); AdBrixRm.init(this, "your_adbrix_remastered_app_key", "your_adbrix_remastered_secret_key"); } }
class MyApplicationClass : Application() { override fun onCreate() { super.onCreate() AdBrixRm.init(this, "your_adbrix_remastered_app_key", "your_adbrix_remastered_secret_key"); } }
[[Quote:Guide:Normal]]
Check App Key & Secret Key
App key and secret key are identifiers used by Definery (Adbricks) to distinguish apps.
This is a value absolutely necessary for SDK integration. You can check it after registering the app in the Definery (Adbrix) console.
_
How to check app key and secret key
_
Go to Adbricks console
[[Quote:Guide:Normal]]
Congratulations!!!
Basic integration to use DFINERY (Adbrix) has been completed.
The available features are as follows:
1. Reporting to check indicators such as DAU, MAU, and daily retention
2. App introduction campaigns such as NCPI
If you want to analyze events such as purchases that occur within the app, you can continue linking by referring to the guide below.
SDK obfuscation exception handling
To ensure that SDK operation and analysis proceed smoothly, we process obfuscation exceptions as follows.
proguard
Please add the code below to app/proguard-rule.pro.
-keep class com.google.android.gms.ads.identifier.AdvertisingIdClient {*;} -keep class com.google.android.gms.ads.identifier.AdvertisingIdClient$* {*;} -dontwarn com.android.installreferrer.**
-keep class com.igaworks.v2.** { *; }
-keep class abx.** { *; }
-keep class io.adbrix.sdk.** { *; }
Other obfuscation tools
When using an obfuscation tool other than proguard, please obfuscate the packages below.
com.igaworks.v2.**
abx.**
io.adbrix.sdk.**
Additional SDK settings
Event upload cycle settings
DFINERY (Adbrix) provides two standards for when to upload events to the DFINERY (Adbrix) server through SDK.
- Based on cumulative event count
- based on time
[[Quote:Information:Danger]] Of the two criteria, the upload will proceed according to the criteria that is satisfied first. It must be called immediately after AdBrixRm.init() in your application class.
1. Based on cumulative number of events
Set to upload event information to the DFINERY (Adbrix) server when the set number of events is accumulated.
Set using the values below predefined in the DFINERY (Adbrix) SDK.
- AdBrixRm.AdBrixEventUploadCountInterval.MIN: 10
- AdBrixRm.AdBrixEventUploadCountInterval.NORMAL: 30
- AdBrixRm.AdBrixEventUploadCountInterval.MAX: 60 cases
public class LauncherActivity extends Activity { @Override protected void onCreate(Bundle savedInstanceState) { super.onCreate(savedInstanceState); setContentView(R.layout.activity_launcher); // Event upload cycle setting: When the cumulative number of events is 10, events are uploaded to the AdBrix server. AdBrixRm.setEventUploadCountInterval(AdBrixRm.AdBrixEventUploadCountInterval.MIN); } }
class LauncherActivity : Activity() { override fun onCreate() { super.onCreate() // Event upload cycle setting: When the cumulative number of events is 10, events are uploaded to the AdBrix server. AdBrixRm.setEventUploadCountInterval(AdBrixRm.AdBrixEventUploadCountInterval.MIN) } }
2. Time standard
Set to upload event information to the DFINERY (Adbrix) server after a set time.
Set using the values below predefined in the DFINERY (Adbrix) SDK.
- AdBrixRm.AdBrixEventUploadTimeInterval.MIN: 30 seconds
- AdBrixRm.AdBrixEventUploadTimeInterval.NORMAL: 60 seconds
- AdBrixRm.AdBrixEventUploadTimeInterval.MAX: 120 seconds
public class LauncherActivity extends Activity { @Override protected void onCreate(Bundle savedInstanceState) { super.onCreate(savedInstanceState); setContentView(R.layout.activity_launcher); // Event upload cycle setting: Event upload to AdBrix server every 120 seconds AdBrixRm.setEventUploadTimeInterval(AdBrixRm.AdBrixEventUploadTimeInterval.MAX); } }
class LauncherActivity : Activity() { override fun onCreate() { super.onCreate() // Event upload cycle setting: Event upload to AdBrix server every 120 seconds AdBrixRm.setEventUploadTimeInterval(AdBrixRm.AdBrixEventUploadTimeInterval.MAX) } }
GDPR settings
You can use the GDPR request event to no longer collect any personal data associated with the data subject in response to a user request.
When this event is called, SDK operation is stopped and all event saving or transmission is not possible.
This feature cannot be restored until the user deletes and reinstalls the app.
void gdprForgetMeEvent() { AdBrixRm.gdprForgetMe(getApplicationContext()); }
fun gdprForgetMeEvent() { AdBrixRm.gdprForgetMe(applicationContext); }
[[Quote:Danger:Moderate]]
Danger!!!
Calling
the gdprForgetMe
API
will cause the SDK to stop immediately and analysis of all events will be disabled
.
This state will persist until the user reinstalls the app.
Tracking settings
The Android SDK tracks Google's Advertising Identifier by default. This value must be used in accordance with Advertising ID policy . If necessary, you can limit tracking of advertising identifiers using the following APIs:
[[Quote:Guide:Normal]] Warning
The corresponding API must be declared before calling the AdBrixRm.init() method.
//The method must be called before AdBrixRm.init(). AdBrixRm.setEnableAdIdTracking(false);
//The method must be called before AdBrixRm.init(). AdBrixRm.setEnableAdIdTracking(false);
Deep link/deferred deep link event analysis
Deep link analysis
Analyze the occurrence of deep link open events through tracking links.
Depending on the launchMode property of the activity opened with a deep link, the linking method varies as follows.
- When in singleTask mode
- When not in singleTask mode
[[Quote:Guide:Normal]]
How do I check launchMode???
Find the activity that will be opened by the deep link in the AndroidManifest.xml file.
Check the value of android:launchMode among the attributes that define the activity.
1. When in singleTask mode
When android:launchMode is singleTask, set as follows to analyze app open events through deep linking.
Set the following settings for all activities opened through deep links.
public class DeeplinkOpenedActivity extends Activity { @Override protected void onCreate(Bundle savedInstanceState) { super.onCreate(savedInstanceState); setContentView(R.layout.activity_main); } @Override protected void onNewIntent(Intent intent) { super.onNewIntent(intent); // Do something with Deeplink Intent Data setIntent(intent);
// 1. Call the deep link event. AdBrixRm.deeplinkEvent(DeeplinkOpenedActivity.this);
// 2. If you have configured the activity life cycle to handle the onResume callback so that the onResume callback does not occur, remove the comment in the code below.
//AdBrixRm.onResume(DeeplinkOpenedActivity.this); }
@Override
protected void onResume(){
super.onResume();
} }
class DeeplinkOpenedActivity : Activity() { override fun onCreate(savedInstanceState: Bundle?) { super.onCreate(savedInstanceState) setContentView(R.layout.deeplink_activity) } override fun onNewIntent(intent: Intent) { super.onNewIntent(intent) setIntent(intent)
// 1. Call the deep link event. AdBrixRm.deeplinkEvent(this)
// 2. If you have configured the activity life cycle to handle the onResume callback so that the onResume callback does not occur, remove the comment in the code below.
//AdBrixRm.onResume(this) }
override fun onResume() {
super.onResume()
} }
[[인용:보통:위험]] * Both setIntent() and deeplinkEvent() functions must be set in the same order as the example above.
[[Quote:Warning]]
Handling the Android Activity Lifecycle?
The SDK handles deep link open events using the onResume callback of the Android activity lifecycle.
If your app is terminating the activity before the onResume callback occurs, you must call the AdBrixRm.onResume function and
pass the SDK onResume callback.
In order to process app opening through deep linking, deep linking must be set up in the app.
Set the deep link to the activity registered in [ AndroidManifest.xml > manifest > application ] as follows.
<intent-filter> <action android:name="android.intent.action.VIEW" /> <category android:name="android.intent.category.DEFAULT" /> <category android:name="android.intent.category.BROWSABLE" /> <data android:scheme="your_scheme" android:host="your_host" /> </intent-filter>
When using Android AppLink, set the activity registered in [ AndroidManifest.xml > manifest > application ] as follows. Applink is an optional feature, so please connect only if you use Applink.
<intent-filter android:autoVerify="true"> <action android:name="android.intent.action.VIEW" /> <category android:name="android.intent.category.DEFAULT" /> <category android:name="android.intent.category.BROWSABLE" /> <data android:scheme="https" android:host="your_appkey.adtouch.adbrix.io" /> </intent-filter>
[[Quote:Warning:Normal]] In the your_appkey field, you must enter the Appkey you use when linking, and please enter it in lowercase.
[[Quote:Risk:Medium]] Please check before connecting Applink!
1. In order to use Applink, you must set the deep link path method to "dynamic path" when creating a tracking link, and then enter the deep link path to move to in the deeplink_custom_path value, a parameter attached to the created tracking link, and pass it to Applink.
2. If you arbitrarily modify "is_used_abx_applink=true", which is automatically added to the value passed as intent of the activity opened with Applink, accurate advertising performance measurement will not be possible.
3. Applink is an optional feature. If you do not use Applink, this task is not required.
2. When not in singleTask mode
When android:launchMode is a mode other than singleTask, set as follows to analyze app open events through deep linking.
Configure the deep link open activity provided by AdBrix SDK in the AndroidManifest.xml file as follows.
<activity
android:name="com.igaworks.v2.core.application.AbxDefaultDeeplinkActivity"
android:label="@string/app_name"
android:launchMode="singleTask"
android:noHistory="true">
<intent-filter android:label="@string/app_name">
<action android:name="android.intent.action.VIEW" />
<category android:name="android.intent.category.DEFAULT" />
<category android:name="android.intent.category.BROWSABLE" />
<!--Enter the deep link schema and host. -->
<data android:scheme="your_scheme" android:host="your_host" />
</intent-filter>
<!-- Set the path of the actual deep link activity to be opened by AbxDefaultDeeplinkActivity in android:value. -->
<meta-data android:name="AbxRedirectActivity" android:value="com.exampleunity.UnityPlayerActivity"/>
</activity>
Deferred deep linking
A deferred deep link is responsible for delivering the relevant information from the server so that it can land on a specific screen after installing the app.
[[Quote:Guide:General]] The value transmitted from a deferred deep link is transmitted as a string type as follows.
yes; myscheme://host?key=value
1. When using Custom Application Class
When using Custom Application Class in the app, it is integrated as follows.
public class MyApplication extends Application { @Override public void onCreate(Bundle savedInstanceState) { super.onCreate(savedInstanceState); AdBrixRm.init(this,"your_appKey","your_secretKey"); AdBrixRm.setOnDeferredDeeplinkListener(new AdBrixRm.onDeferredDeeplinkListener() { @Override public void onReceive(OnDeferredDeeplinkResult result) { // AdbrixRm SDk returns deferred deeplink url as string. // Use this string value and send your user to certin activity. Log.d("abxrm", "Deferred Deeplink : "+ result.getDeeplink()); } }); } }
class MyApplication:Application(){ override fun onCreate() { super.onCreate() AdBrixRm.init(this, "your_appKey", "your_secretKey"); AdBrixRm.setOnDeferredDeeplinkListener { // AdbrixRm SDk returns deferred deeplink url as string. // Use this string value and send your user to certin activity. Log.d("abxrm", "Deferred Deeplink : " + it.getDeeplink()) } } }
2. When using AdbrixRM Application Class
When using the Application Class provided by DFINERY (Adbrix), it is linked to an activity that lands with a deep link.
public class MainActivity extends Activity{ @Override protected void onCreate(Bundle savedInstanceState) { super.onCreate(savedInstanceState); setContentView(R.layout.activity_main); // To get deferred deeplink url, set this listener. AdBrixRm.setOnDeferredDeeplinkListener(new AdBrixRm.onDeferredDeeplinkListener() { @Override public void onReceive(OnDeferredDeeplinkResult result) { // AdbrixRm SDk returns deferred deeplink url as string. // Use this string value and send your user to certin activity. Log.d("abxrm", "Deferred Deeplink : "+ result.getDeeplink()); } }); } }
class MainActivity: Activity(){ override fun onCreate(savedInstanceState: Bundle?) { super.onCreate(savedInstanceState) setContentView(R.layout.activity_main) // To get deferred deeplink url, set this listener. AdBrixRm.setOnDeferredDeeplinkListener { // AdbrixRm SDk returns deferred deeplink url as string. // Use this string value and send your user to certin activity. Log.d("abxrm", "Deferred Deeplink : " + it.getDeeplink()) } } }
[[Quote:Warning:Normal]]
Listener is not called!!!
If deferred deep link information is not delivered to the listener you implemented, please check the following:
1. No conversion occurred through the tracking link.
2. Deep linking is not set up in the tracking link.
[[Quote:Warning:Normal]]
The app opens twice!!!
When you install/run an app from Google Play through a tracking link with deep linking set up,
Deferred deep linking provided by Google Play Store works.
We recommend that you handle exceptions through the listener you implement to avoid duplicate processing.
[[Quote:Danger:Small]]
An operation is not implemented: Not yet implemented error is reported.
Regardless of the SDK, this error may occur when using the TODO annotation within a callback method.
If there is a TODO in the callback method, please remove it.
[[Quote:Danger:Small]]
fetchDeferredAppLinkData API from Facebook SDK is not available
Our DeferredDeeplink API takes over the role of fetchDeferredApplinkData used in Facebook advertising, so it cannot be used repeatedly. If you are using it, please delete it.
Event Analysis
By analyzing events that occur in the app, you can construct reports and send postbacks.
To analyze an event, you must insert an event analysis code at the time an event occurs and deliver appropriate event information.
DFINERY (Adbrix) provides four major types of event analysis.
-
User analysis
- Login/logout events
- User information~
- Custom event analysis
-
Common (general) event analysis
- join the membership
- app updates
- user invitation
- credit usage
- purchase
-
Commerce event analysis
- Enter the home (main) screen
- Enter category (special exhibition)
- View product details
- Put in a shopping cart
- Add product of interest
- Confirm your order
- Cancel order
- Search for product
- Share product
- View product list
- View shopping cart list
- Payment information
-
Game event analysis
- Tutorial completed
- character generation
- Stage completed
- Level achieved
User analysis
Login/logout events
Analyze app users’ login/logout events.
When login is successful, the identification value (user ID) that identifies the user is passed as follows.
[[인용:보통:위험]]
Login Precautions
The user ID used for login is used for matching between users and devices when using the growth action function. If login is called again without logging out after logging in, correct matching may not occur.
Please be careful not to include personal information in your user ID. If the user ID includes personal information such as email or phone number, we recommend encrypting it.
API
//When User Login AdBrixRm.login(String user_id); //When user logout AdBrixRm.logout();
//When User Login AdBrixRm.login(String user_id) //When user logout AdBrixRm.logout();
Sample Code
void loginAndLogoutEvent() { if(isLogin){ // Login success with user_id "user_1234" AdBrixRm.login("user_1234"); }else{ //When user logs out AdBrixRm.logout(); } }
fun loginAndLogoutEvent() { if(isLogin){ // Login success with user_id "user_1234" AdBrixRm.login("user_1234") }else{ //When user logs out AdBrixRm.logout() }
}
User information
You can analyze the users age, gender, and other information.
[[인용:보통:위험]]
Precautions when setting user information
Please use the login, setAge, and setGender APIs for user ID, age, and gender, respectively.
API
//Set User Age AdBrixRm.setAge(int age); // Set User Gender AdBrixRm.setGender(AdBrixRm.AbxGender abxgender); //Set other User info // value types are only allowed with String, Long, Double, Boolean AdBrixRm.UserProperties userProperties = new AdBrixRm.UserProperties(); userProperties.setAttrs(String key1, String value1) .setAttrs(String key2, long value2) .setAttrs(String key3, double value3) setAttrs(String key4, boolean value4); AdBrixRm.saveUserProperties(userProperties);
//Set User Age AdBrixRm.setAge(int age) // Set User Gender AdBrixRm.setGender(AdBrixRm.AbxGender abxgender) //Set other User info // value types are only allowed with String, long, double, boolean val userProperties = AdBrixRm.UserProperties() .setAttrs(String key1, String value1) .setAttrs(String key2, long value2) .setAttrs(String key3, double value3) setAttrs(String key4, boolean value4) AdBrixRm.saveUserProperties(userProperties)
Sample Code
void userPropertyUpdate() { // set user age AdBrixRm.setAge(30); // set user gender AdBrixRm.setGender(AdBrixRm.AbxGender.MALE); //set other userinfo AdBrixRm.UserProperties userProperties = new AdBrixRm.UserProperties(); userProperties.setAttrs("user_nick", "peterPark") .setAttrs("place","Seoul") .setAttrs("height",180) .setAttrs("married",false); AdBrixRm.saveUserProperties(userProperties); }
fun userPropertyUpdate() { // set user age AdBrixRm.setAge(30); // set user gender AdBrixRm.setGender(AdBrixRm.AbxGender.MALE); //set other userinfo val userProperties = AdBrixRm.UserProperties() .setAttrs("user_nick", "peterPark") .setAttrs("place","Seoul") .setAttrs("height",180) .setAttrs("married",false); AdBrixRm.saveUserProperties(userProperties) }
[[Quote:Risk:Moderate]]
Things to keep in mind when setting UserProperty and AttrModel
1.100 or more pieces of information will not be processed.
2. The data type of the key value is string, cannot exceed 50 characters, and cannot use any characters other than lowercase English letters and numbers.
3. The data length of the Value value cannot exceed 1024 bytes in byte. Also, only Long, Double, Boolean, and String types can be used.
4. Null value cannot be used as Value value.
Custom event analysis
Analyzes all common user events within the app. (excluding purchase-related events)
You can freely analyze most actions within the app, such as button click, character creation, tutorial completion, and level up.
API
// Custom event with AttrModel AdBrixRm.event(String eventName, AdBrixRm.AttrModel attrmodel); // Custom event without AttrModel AdBrixRm.event(String eventName);
// Custom event with AttrModel AdBrixRm.event(String eventName, AdBrixRm.AttrModel attrmodel) // Custom event without AttrModel AdBrixRm.event(String eventName)
Sample Code
void userCustomEvent() { // Set additional event information AdBrixRm.AttrModel eventAttr = new AdBrixRm.AttrModel() .setAttrs("address","Dongan-gu, Anyang-si, Gyeonggi-do") .setAttrs("firsttime",true); // Click the “Invite Friends” button AdBrixRm.event("invite_button_click",eventAttr); // "Character Creation" completed AdBrixRm.event("create_character_complete",eventAttr); // "View Tutorial" completed AdBrixRm.event("tutorial_complete",eventAttr); // "Level 10 achieved" completed AdBrixRm.event("level_10",eventAttr); }
fun locationUpdate() { // Set additional event information val eventAttr = AdBrixRm.AttrModel() .setAttrs("address", "Dongan-gu, Anyang-si, Gyeonggi-do") .setAttrs("firsttime", true) // Click the “Invite Friends” button AdBrixRm.event("invite_button_click",eventAttr) // "Character Creation" completed AdBrixRm.event("create_character_complete",eventAttr) // "View Tutorial" completed AdBrixRm.event("tutorial_complete",eventAttr) // "Level 10 achieved" completed AdBrixRm.event("level_10",eventAttr) }
[[Quote:Risk:Medium]] Custom events can only be set to a maximum of 100, in the order they are called.
※ caution
As in the example below, do not set naturally increasing values as event names.
Too many events actually interfere with analysis.
AdBrixRm.event("Level-301-Achieved-at-01:23:45.1234567");
Therefore, in this case, please set additional event information (AdBrixRm.AttrModel) and set custom parameters to call the event.
// Set additional event information AdBrixRm.AttrModel eventAttr = new AdBrixRm.AttrModel() .setAttrs("level",37) .setAttrs("clear_time_mile", 39238); // Call custom event API with event parameters AdBrixRm.event("level_clear", eventAttr);
Common (general) event analysis
Among the events that occur in the app, we analyze the commonly occurring event (payment).
Common event types provided by DFINERY (Adbrix) are as follows.
- join the membership
- app updates
- user invitation
- credit usage
- Make payment
* If you want to view sales by advertising channel in DFINERY (Adbrix), you must perform the ‘Payment’ link.
join the membership
Analyze membership registration events that occurred in the app.
API
// SignUp event with Additional signUp info AdBrixRm.Common.signUp(AdBrixRm.CommonSignUpChannel signUpChannel, AdBrixRm.CommonProperties.SignUp signUpInfo); // SignUp event without Additional signUp info AdBrixRm.Common.signUp(AdBrixRm.CommonSignUpChannel signUpChannel);
// SignUp event with Additional signUp info AdBrixRm.Common.signUp(AdBrixRm.CommonSignUpChannel signUpChannel, AdBrixRm.CommonProperties.SignUp signUpInfo) // SignUp event without Additional signUp info AdBrixRm.Common.signUp(AdBrixRm.CommonSignUpChannel signUpChannel)
Sample Code
void userRegister() { try { // Set additional event information as membership registration event information. AdBrixRm.CommonProperties.SignUp signupUserInfo = new AdBrixRm.CommonProperties.SignUp(); //Membership registration API call AdBrixRm.Common.signUp(AdBrixRm.CommonSignUpChannel.Google,signupUserInfo); } catch (JSONException e) { e.printStackTrace(); } }
void userRegister() { try { // Set additional event information as membership registration event information. val signupUserInfo = AdBrixRm.CommonProperties.SignUp() //Membership registration API call AbxCommon.signUp(AdBrixRm.CommonSignUpChannel.Google, signupUserInfo) } catch (e: Exception) { e.printStackTrace() } }
app updates
Analyze app update events that occurred in the app.
API
AdBrixRm.Common.appUpdate(AdBrixRm.CommonProperties.AppUpdate appUpdate);
AdBrixRm.Common.appUpdate(AdBrixRm.CommonProperties.AppUpdate appUpdate)
Sample Code
void appUpdate() { try { AdBrixRm.CommonProperties.AppUpdate updateInfo = new AdBrixRm.CommonProperties.AppUpdate() .setPrevVersion("1.0.0a") .setCurrVersion("1.0.1a"); //Call app update API AdBrixRm.Common.appUpdate(updateInfo); } catch (JSONException e){ e.printStackTrace(); } }
void appUpdate() { try { // Set app update event information. val updateInfo = AdBrixRm.CommonProperties.AppUpdate() .setCurrVersion("1.2.0") .setPrevVersion("1.1.0") //Call app update API AbxCommon.appUpdate(updateInfo) } catch (e: Exception) { e.printStackTrace() } }
user invitation
Analyze app invitation events that occurred in the app.
API
// UserInvite event with Additional event info AdBrixRm.Common.invite(AdBrixRm.CommonInviteChannel inviteChannel, AdBrixRm.CommonProperties.Invite inviteInfo); // UserInvite event without Additional event info AdBrixRm.Common.invite(AdBrixRm.CommonInviteChannel inviteChannel);
// UserInvite event with Additional event info AdBrixRm.Common.invite(AdBrixRm.CommonInviteChannel inviteChannel, AdBrixRm.CommonProperties.Invite inviteInfo) // UserInvite event without Additional event info AdBrixRm.Common.invite(AdBrixRm.CommonInviteChannel inviteChannel)
Sample Code
void userInvite() { try { AdBrixRm.CommonProperties.Invite inviteInfo = new AdBrixRm.CommonProperties.Invite(); //Call user invitation API AdBrixRm.Common.invite(AdBrixRm.CommonInviteChannel.Facebook,inviteInfo); } catch (JSONException e){ e.printStackTrace(); } }
void userInvite() { try { val properties = AdBrixRm.CommonProperties.Invite(); //Call user invitation API AbxCommon.invite(AdBrixRm.CommonInviteChannel.Facebook, properties) } catch (e: Exception) { e.printStackTrace() } }
credit usage
Analyze events related to the use of cash currency within the app.
API
AdBrixRm.Common.useCredit(AdBrixRm.CommonProperties.UseCredit userCreditInfo);
AdBrixRm.Common.useCredit(AdBrixRm.CommonProperties.UseCredit userCreditInfo)
Sample Code
void usingCredit() { try { // User cash currency usage information AdBrixRm.AttrModel commonAttr = new AdBrixRm.AttrModel() .setAttrs("credit", 10000); AdBrixRm.CommonProperties.UseCredit userCreditInfo = new AdBrixRm.CommonProperties.UseCredit() .setAttrModel(commonAttr); //Call credit usage API AdBrixRm.Common.useCredit(userCreditInfo); } catch (JSONException e){ e.printStackTrace(); } }
void usingCredit() { try { // Additional information on currency usage event val useCreaditAttr = AdBrixRm.AttrModel() .setAttrs("money", 1000.00) //Call credit usage API AbxCommon.useCredit(properties) } catch (e: Exception) { e.printStackTrace() } }
Make payment
[[인용:보통:위험]] Add total order amount parameter!!! (sdk ver: 1.1.2200)
A parameter has been added to enter the total sales amount of the order. Just enter the amount based on the order total amount calculation criteria.
API
AdBrixRm.Common.purchase( String orderId, List productModelList, double orderSale, // Optional double discount, double deliveryCharge, AdBrixRm.CommercePaymentMethod paymentMethod; AdBrixRm.AttrModel attrModel // Optional );
AdBrixRm.Common.purchase( String orderId, List productModelList, double orderSale, //Optional double discount, double deliveryCharge, AdBrixRm.CommercePaymentMethod paymentMethod, AdBrixRm.AttrModel attrModel //Optional )
Sample Code
void purchaseEvent() { try { // Set product category AdBrixRm.CommerceCategoriesModel productCategory = new AdBrixRm.CommerceCategoriesModel() .setCategory("Category 1") .setCategory("Category 2") .setCategory("Category 3") .setCategory("Category 4") .setCategory("Category 5"); //Setting additional product information AdBrixRm.AttrModel productAttr1 = new AdBrixRm.AttrModel() .setAttrs("size", 25) .setAttrs("color", "blue") .setAttrs("vip", false); AdBrixRm.AttrModel productAttr2 = new AdBrixRm.AttrModel() .setAttrs("size", 33) .setAttrs("color", "black") .setAttrs("vip", true); // Additional event information AdBrixRm.AttrModel purchaseAttr = new AdBrixRm.AttrModel() .setAttrs("grade", "vip") .setAttrs("howmany_buy", 36) .setAttrs("discount", true); AdBrixRm.CommonProperties.Purchase purchaseat = new AdBrixRm.CommonProperties.Purchase() .setAttrModel(purchaseAttr); // Create product information model AdBrixRm.CommerceProductModel productModel_1 = new AdBrixRm.CommerceProductModel().setProductID("5385487400") .setProductName("Special price on 10 types of slacks") .setPrice(10000.00) .setQuantity(1) .setDiscount(1000.00) .setCurrency(AdBrixRm.Currency.KR_KRW) .setCategory(productCategory) .setAttrModel(productAttr1); // Create product information model AdBrixRm.CommerceProductModel productModel_2 = new AdBrixRm.CommerceProductModel().setProductID("145099811") .setProductName("[Carryover Special Price] Printed Sweatshirt") .setPrice(15500.00) .setQuantity(1) .setDiscount(1200.00) .setCurrency(AdBrixRm.Currency.KR_KRW) .setCategory(productCategory) .setAttrModel(productAttr2); // Create product information model ArrayList ArrayList productModelArrayList = new ArrayList<>(); productModelArrayList.add(productModel_1); productModelArrayList.add(productModel_2); // Product payment - mobile payment AdBrixRm.Common.purchase("290192012", productModelArrayList, 22500.0,0.00, 3500.00, AdBrixRm.CommercePaymentMethod.MobilePayment,purchaseat); } catch (JSONException e) { e.printStackTrace(); } }
fun purchaseEvent() { try { // Set product category val productCategory = AdBrixRm.CommerceCategoriesModel() .setCategory("Category 1") .setCategory("Category 2") .setCategory("Category 3") .setCategory("Category 4") .setCategory("Category 5") //Setting additional product information val productAttr1 = AdBrixRm.AttrModel() .setAttrs("size", 25) .setAttrs("color", "blue") .setAttrs("vip", false) val productAttr2 = AdBrixRm.AttrModel() .setAttrs("size", 33) .setAttrs("color", "black") .setAttrs("vip", true) // event additional information val purchaseAttr = AdBrixRm.AttrModel() .setAttrs("grade", "vip") .setAttrs("howmany_buy", 36) .setAttrs("discount", true) val purchaseat = AdBrixRm.CommonProperties.Purchase() .setAttrModel(purchaseAttr) //Product information val productModel1 = AdBrixRm.CommerceProductModel() .setProductID("productid_1") .setProductName("Product Name1") .setCategory(productCategory) .setCurrency(AdBrixRm.Currency.KR_KRW) .setDiscount(5000.00) .setAttrModel(productAttr1) .setPrice(50000.00) .setQuantity(1) val productModel2 = AdBrixRm.CommerceProductModel() .setProductID("productid_2") .setProductName("Product Name2") .setCategory(productCategory) .setCurrency(AdBrixRm.Currency.KR_KRW) .setDiscount(10000.00) .setAttrModel(productAttr2) .setPrice(100000.00) .setQuantity(1) // Set product information arrayList val proList = mutableListOf<AdBrixRm.CommerceProductModel>() proList.add(productModel1) proList.add(productModel2) // call purchase event AbxCommon.purchase("orderid_1", proList,54000.00 0.00, 2500.00, AdBrixRm.CommercePaymentMethod.CreditCard, purchaseat) } catch (e: Exception) { e.printStackTrace() } }
Commerce event analysis
We analyze purchase-related events (viewing product details, adding to shopping cart, etc.) that occur in the app.
The types of commerce events provided by AdBrix are as follows.
- Enter the home (main) screen
- Enter category (special exhibition)
- View product details
- Put in a shopping cart
- Add wishlist (product of interest)
- Confirm your order
- Cancel order
- Search for product
- Share product
- View product list
- View shopping cart
- Enter payment information
Enter the home (main) screen
Analyzes events in which the user enters the apps home (main) screen.
void viewHomeEvent(){ // Home (main) screen entry event analysis AdBrixRm.Commerce.viewHome(); }
fun viewHomeEvent(){ // Home (main) screen entry event analysis AbxCommerce.viewHome() }
Enter category (special exhibition)
Analyze events in which users enter the category (special exhibition) screen.
The product information displayed when entering the category is delivered as follows.
API
AdBrixRm.Commerce.categoryView( AdBrixRm.CommerceCategoriesModel productCategory, List <AdBrixRm.CommerceProductModel> productModelList, AdBrixRm.AttrModel attrModel // Optional );
AdBrixRm.Commerce.categoryView( AdBrixRm.CommerceCategoriesModel productCategory, List <AdBrixRm.CommerceProductModel> productModelList, AdBrixRm.AttrModel attrModel //Optional )
Sample Code
void viewCategoryEvent(){ // Set product category AdBrixRm.CommerceCategoriesModel productCategory = new AdBrixRm.CommerceCategoriesModel() .setCategory("Category 1") .setCategory("Category 2") .setCategory("Category 3") .setCategory("Category 4") .setCategory("Category 5"); //Setting additional product information AdBrixRm.AttrModel productAttr1 = new AdBrixRm.AttrModel() .setAttrs("size", 25) .setAttrs("color", "blue") .setAttrs("vip", false); AdBrixRm.AttrModel productAttr2 = new AdBrixRm.AttrModel() .setAttrs("size", 33) .setAttrs("color", "black") .setAttrs("vip", true); // Additional event information AdBrixRm.AttrModel commmerceAttr = new AdBrixRm.AttrModel() .setAttrs("grade", "vip") .setAttrs("howmany_buy", 36) .setAttrs("discount", true); // Create product information model AdBrixRm.CommerceProductModel productModel_1 = new AdBrixRm.CommerceProductModel().setProductID("5385487400") .setProductName("Special price on 10 types of slacks") .setPrice(10000.00) .setQuantity(1) .setDiscount(1000.00) .setCurrency(AdBrixRm.Currency.KR_KRW) .setCategory(productCategory) .setAttrModel(productAttr1); // Create product information model AdBrixRm.CommerceProductModel productModel_2 = new AdBrixRm.CommerceProductModel().setProductID("145099811") .setProductName("[Carryover Special Price] Printed Sweatshirt") .setPrice(15500.00) .setQuantity(1) .setDiscount(1200.00) .setCurrency(AdBrixRm.Currency.KR_KRW) .setCategory(productCategory) .setAttrModel(productAttr2); // Create product information model ArrayList ArrayList productModelArrayList = new ArrayList<>(); productModelArrayList.add(productModel_1); productModelArrayList.add(productModel_2); // Analyze category view events AdBrixRm.Commerce.categoryView(productCategory, productModelArrayList,commmerceAttr); }
fun viewCategoryEvent(){ // Set product category val productCategory = AdBrixRm.CommerceCategoriesModel() .setCategory("Category 1") .setCategory("Category 2") .setCategory("Category 3") .setCategory("Category 4") .setCategory("Category 5") //Setting additional product information val productAttr1 = AdBrixRm.AttrModel() .setAttrs("size", 25) .setAttrs("color", "blue") .setAttrs("vip", false) val productAttr2 = AdBrixRm.AttrModel() .setAttrs("size", 33) .setAttrs("color", "black") .setAttrs("vip", true) // Additional event information val commerceAttr = AdBrixRm.AttrModel() .setAttrs("grade", "vip") .setAttrs("howmany_buy", 36) .setAttrs("discount", true) //Product information val productModel1 = AdBrixRm.CommerceProductModel() .setProductID("productid_1") .setProductName("Product Name1") .setCategory(productCategory) .setCurrency(AdBrixRm.Currency.KR_KRW) .setDiscount(5000.00) .setAttrModel(productAttr1) .setPrice(50000.00) .setQuantity(1) val productModel2 = AdBrixRm.CommerceProductModel() .setProductID("productid_2") .setProductName("Product Name2") .setCategory(productCategory) .setCurrency(AdBrixRm.Currency.KR_KRW) .setDiscount(10000.00) .setAttrModel(productAttr2) .setPrice(100000.00) .setQuantity(1) // Set product information arrayList val proList = mutableListOf<AdBrixRm.CommerceProductModel>() proList.add(productModel1) proList.add(productModel2) // Analyze category view events AbxCommerce.categoryView(productCategory, proList, commerceAttr) }
View product details
We analyze events where users view products in detail.
We convey information about the following products.
API
AdBrixRm.Commerce.productView( AdBrixRm.CommerceProductModel productMode; AdBrixRm.AttrModel attrModel // Optional );
AdBrixRm.Commerce.productView( AdBrixRm.CommerceProductModel productModel; AdBrixRm.AttrModel attrModel //Optional )
Sample Code
void viewProductDetailEvent(){ try { // Set product category AdBrixRm.CommerceCategoriesModel productCategory = new AdBrixRm.CommerceCategoriesModel() .setCategory("Category 1") .setCategory("Category 2") .setCategory("Category 3") .setCategory("Category 4") .setCategory("Category 5"); //Setting additional product information AdBrixRm.AttrModel productAttr1 = new AdBrixRm.AttrModel() .setAttrs("size", 25) .setAttrs("color", "blue") .setAttrs("vip", false); // Additional event information AdBrixRm.AttrModel commmerceAttr = new AdBrixRm.AttrModel() .setAttrs("grade", "vip") .setAttrs("howmany_buy", 36) .setAttrs("discount", true); // Create product information model AdBrixRm.CommerceProductModel productModel_1 = new AdBrixRm.CommerceProductModel().setProductID("5385487400") .setProductName("Special price on 10 types of slacks") .setPrice(10000.00) .setQuantity(1) .setDiscount(1000.00) .setCurrency(AdBrixRm.Currency.KR_KRW) .setCategory(productCategory) .setAttrModel(productAttr1); // Product details view event analysis AdBrixRm.Commerce.productView(productModel_1,commmerceAttr); }catch (JSONException e){ e.printStackTrace();; } }
fun viewProductDetailEvent(){ try { // Set product category val productCategory = AdBrixRm.CommerceCategoriesModel() .setCategory("Category 1") .setCategory("Category 2") .setCategory("Category 3") .setCategory("Category 4") .setCategory("Category 5") //Setting additional product information val productAttr1 = AdBrixRm.AttrModel() .setAttrs("size", 25) .setAttrs("color", "blue") .setAttrs("vip", false) // event additional information val commerceAttr = AdBrixRm.AttrModel() .setAttrs("grade", "vip") .setAttrs("howmany_buy", 36) .setAttrs("discount", true) //Product information val productModel1 = AdBrixRm.CommerceProductModel() .setProductID("productid_1") .setProductName("Product Name1") .setCategory(productCategory) .setCurrency(AdBrixRm.Currency.KR_KRW) .setDiscount(5000.00) .setAttrModel(productAttr1) .setPrice(50000.00) .setQuantity(1) // Product details view event analysis AbxCommerce.productView(productModel1, commerceAttr) } catch (e: Exception) { e.printStackTrace() } }
Put in a shopping cart
We analyze events in which users add products to their shopping carts.
We convey the following product information:
API
AdBrixRm.Commerce.addToCart( List <AdBrixRm.CommerceProductModel> productModelList, AdBrixRm.AttrModel attrModel // Optional );
AdBrixRm.Commerce.addToCart( List <AdBrixRm.CommerceProductModel> productModelList, AdBrixRm.AttrModel attrModel //Optional )
Sample Code
void addToCartEvent(){ try { // Set product category AdBrixRm.CommerceCategoriesModel productCategory = new AdBrixRm.CommerceCategoriesModel() .setCategory("Category 1") .setCategory("Category 2") .setCategory("Category 3") .setCategory("Category 4") .setCategory("Category 5"); //Setting additional product information AdBrixRm.AttrModel productAttr1 = new AdBrixRm.AttrModel() .setAttrs("size", 25) .setAttrs("color", "blue") .setAttrs("vip", false); AdBrixRm.AttrModel productAttr2 = new AdBrixRm.AttrModel() .setAttrs("size", 33) .setAttrs("color", "black") .setAttrs("vip", true); // Additional event information AdBrixRm.AttrModel commmerceAttr = new AdBrixRm.AttrModel() .setAttrs("grade", "vip") .setAttrs("howmany_buy", 36) .setAttrs("discount", true); // Create product information model AdBrixRm.CommerceProductModel productModel_1 = new AdBrixRm.CommerceProductModel().setProductID("5385487400") .setProductName("Special price on 10 types of slacks") .setPrice(10000.00) .setQuantity(1) .setDiscount(1000.00) .setCurrency(AdBrixRm.Currency.KR_KRW) .setCategory(productCategory) .setAttrModel(productAttr1); // Create product information model AdBrixRm.CommerceProductModel productModel_2 = new AdBrixRm.CommerceProductModel().setProductID("145099811") .setProductName("[Carryover Special Price] Printed Sweatshirt") .setPrice(15500.00) .setQuantity(1) .setDiscount(1200.00) .setCurrency(AdBrixRm.Currency.KR_KRW) .setCategory(productCategory) .setAttrModel(productAttr2); // Create product information model ArrayList ArrayList productModelArrayList = new ArrayList<>(); productModelArrayList.add(productModel_1); productModelArrayList.add(productModel_2); // Analysis of add to cart event AdBrixRm.Commerce.addToCart(productModelArrayList,commmerceAttr); }catch (JSONException e){ e.printStackTrace(); } }
fun addToCartEvent(){ try { // Set product category val productCategory = AdBrixRm.CommerceCategoriesModel() .setCategory("Category 1") .setCategory("Category 2") .setCategory("Category 3") .setCategory("Category 4") .setCategory("Category 5") //Setting additional product information val productAttr1 = AdBrixRm.AttrModel() .setAttrs("size", 25) .setAttrs("color", "blue") .setAttrs("vip", false) val productAttr2 = AdBrixRm.AttrModel() .setAttrs("size", 33) .setAttrs("color", "black") .setAttrs("vip", true) // Additional event information val commerceAttr = AdBrixRm.AttrModel() .setAttrs("grade", "vip") .setAttrs("howmany_buy", 36) .setAttrs("discount", true) //Product information val productModel1 = AdBrixRm.CommerceProductModel() .setProductID("productid_1") .setProductName("Product Name1") .setCategory(productCategory) .setCurrency(AdBrixRm.Currency.KR_KRW) .setDiscount(5000.00) .setAttrModel(productAttr1) .setPrice(50000.00) .setQuantity(1) val productModel2 = AdBrixRm.CommerceProductModel() .setProductID("productid_2") .setProductName("Product Name2") .setCategory(productCategory) .setCurrency(AdBrixRm.Currency.KR_KRW) .setDiscount(10000.00) .setAttrModel(productAttr2) .setPrice(100000.00) .setQuantity(1) // Set product information arrayList val proList = mutableListOf<AdBrixRm.CommerceProductModel>() proList.add(productModel1) proList.add(productModel2) // Analysis of add to cart event AbxCommerce.addToCart(proList, commerceAttr) } catch (e: Exception) { e.printStackTrace() } }
Add product of interest (wish list)
Analyze events in which a user adds a product to a product of interest (wishlist).
We convey the following product information:
API (when applying individual ProductModel)
AdBrixRm.Commerce.addToWishList( AdBrixRm.CommerceProductModel productModel; AdBrixRm.AttrModel attrModel // Optional );
AdBrixRm.Commerce.addToWishList( AdBrixRm.CommerceProductModel productModel; AdBrixRm.AttrModel attrModel //Optional )
Sample Code
void addToWishListEvent(){ try { // Set product category AdBrixRm.CommerceCategoriesModel productCategory = new AdBrixRm.CommerceCategoriesModel() .setCategory("Category 1") .setCategory("Category 2") .setCategory("Category 3") .setCategory("Category 4") .setCategory("Category 5"); //Setting additional product information AdBrixRm.AttrModel productAttr1 = new AdBrixRm.AttrModel() .setAttrs("size", 25) .setAttrs("color", "blue") .setAttrs("vip", false); // Additional event information AdBrixRm.AttrModel commmerceAttr = new AdBrixRm.AttrModel() .setAttrs("grade", "vip") .setAttrs("howmany_buy", 36) .setAttrs("discount", true); // Create product information model AdBrixRm.CommerceProductModel productModel_1 = new AdBrixRm.CommerceProductModel().setProductID("5385487400") .setProductName("Special price on 10 types of slacks") .setPrice(10000.00) .setQuantity(1) .setDiscount(1000.00) .setCurrency(AdBrixRm.Currency.KR_KRW) .setCategory(productCategory) .setAttrModel(productAttr1); // Analysis of product of interest (wish list) addition event AdBrixRm.Commerce.addToWishList(productModel_1,commmerceAttr); }catch (JSONException e){ e.printStackTrace(); } }
fun addToWishListEvent(){ try { // Set product category val productCategory = AdBrixRm.CommerceCategoriesModel() .setCategory("Category 1") .setCategory("Category 2") .setCategory("Category 3") .setCategory("Category 4") .setCategory("Category 5") //Setting additional product information val productAttr1 = AdBrixRm.AttrModel() .setAttrs("size", 25) .setAttrs("color", "blue") .setAttrs("vip", false) // Additional event information val commerceAttr = AdBrixRm.AttrModel() .setAttrs("grade", "vip") .setAttrs("howmany_buy", 36) .setAttrs("discount", true) //Product information val productModel1 = AdBrixRm.CommerceProductModel() .setProductID("productid_1") .setProductName("Product Name1") .setCategory(productCategory) .setCurrency(AdBrixRm.Currency.KR_KRW) .setDiscount(5000.00) .setAttrModel(productAttr1) .setPrice(50000.00) .setQuantity(1) //call addToWishList api AbxCommerce.addToWishList(productModel1, commerceAttr) } catch (e: Exception) { e.printStackTrace() } }
API (when applying multiple ProductModels)
[[인용:보통:위험]] This API applies from Android SDK 2.4.0.0.
AdBrixRm.Commerce.addToWishList( List <AdBrixRm.CommerceProductModel> productModelList, AdBrixRm.AttrModel attrModel // Optional );
AdBrixRm.Commerce.addToWishList( List <AdBrixRm.CommerceProductModel> productModelList, AdBrixRm.AttrModel attrModel //Optional )
Sample Code
void addToWishListEvent(){ try { // Set product category AdBrixRm.CommerceCategoriesModel productCategory = new AdBrixRm.CommerceCategoriesModel() .setCategory("Category 1") .setCategory("Category 2") .setCategory("Category 3") .setCategory("Category 4") .setCategory("Category 5"); //Setting additional product information AdBrixRm.AttrModel productAttr1 = new AdBrixRm.AttrModel() .setAttrs("size", 25) .setAttrs("color", "blue") .setAttrs("vip", false); AdBrixRm.AttrModel productAttr2 = new AdBrixRm.AttrModel() .setAttrs("size", 33) .setAttrs("color", "black") .setAttrs("vip", true); // Additional event information AdBrixRm.AttrModel commmerceAttr = new AdBrixRm.AttrModel() .setAttrs("grade", "vip") .setAttrs("howmany_buy", 36) .setAttrs("discount", true); // Create product information model AdBrixRm.CommerceProductModel productModel_1 = new AdBrixRm.CommerceProductModel().setProductID("5385487400") .setProductName("Special price on 10 types of slacks") .setPrice(10000.00) .setQuantity(1) .setDiscount(1000.00) .setCurrency(AdBrixRm.Currency.KR_KRW) .setCategory(productCategory) .setAttrModel(productAttr1); // Create product information model AdBrixRm.CommerceProductModel productModel_2 = new AdBrixRm.CommerceProductModel().setProductID("145099811") .setProductName("[Carryover Special Price] Printed Sweatshirt") .setPrice(15500.00) .setQuantity(1) .setDiscount(1200.00) .setCurrency(AdBrixRm.Currency.KR_KRW) .setCategory(productCategory) .setAttrModel(productAttr2); // Create product information model ArrayList ArrayList productModelArrayList = new ArrayList<>(); productModelArrayList.add(productModel_1); productModelArrayList.add(productModel_2); // Analysis of product of interest (wish list) addition event AdBrixRm.Commerce.addToWishList(productModelArrayList,commmerceAttr); }catch (JSONException e){ e.printStackTrace(); } }
fun addToWishListEvent(){ try { // Set product category val productCategory = AdBrixRm.CommerceCategoriesModel() .setCategory("Category 1") .setCategory("Category 2") .setCategory("Category 3") .setCategory("Category 4") .setCategory("Category 5") //Setting additional product information val productAttr1 = AdBrixRm.AttrModel() .setAttrs("size", 25) .setAttrs("color", "blue") .setAttrs("vip", false) val productAttr2 = AdBrixRm.AttrModel() .setAttrs("size", 33) .setAttrs("color", "black") .setAttrs("vip", true) // Additional event information val commerceAttr = AdBrixRm.AttrModel() .setAttrs("grade", "vip") .setAttrs("howmany_buy", 36) .setAttrs("discount", true) //Product information val productModel1 = AdBrixRm.CommerceProductModel() .setProductID("productid_1") .setProductName("Product Name1") .setCategory(productCategory) .setCurrency(AdBrixRm.Currency.KR_KRW) .setDiscount(5000.00) .setAttrModel(productAttr1) .setPrice(50000.00) .setQuantity(1) val productModel2 = AdBrixRm.CommerceProductModel() .setProductID("productid_2") .setProductName("Product Name2") .setCategory(productCategory) .setCurrency(AdBrixRm.Currency.KR_KRW) .setDiscount(10000.00) .setAttrModel(productAttr2) .setPrice(100000.00) .setQuantity(1) // Set product information arrayList val proList = mutableListOf<AdBrixRm.CommerceProductModel>() proList.add(productModel1) proList.add(productModel2) //call addToWishList api AbxCommerce.addToWishList(proList, commerceAttr) } catch (e: Exception) { e.printStackTrace() } }
Confirm your order
We analyze the final confirmation event that a user confirms before paying for a product.
We convey the following order and product information:
API
AdBrixRm.Commerce.reviewOrder( String orderId, List productModelList, double discount, double deliveryCharge, AdBrixRm.AttrModel attrModel // Optional );
AdBrixRm.Commerce.reviewOrder( String orderId, List productModelList, double discount, double deliveryCharge, AdBrixRm.AttrModel attrModel //Optional )
Sample Code
void reviewOrderEvent(){ try { // Set product category AdBrixRm.CommerceCategoriesModel productCategory = new AdBrixRm.CommerceCategoriesModel() .setCategory("Category 1") .setCategory("Category 2") .setCategory("Category 3") .setCategory("Category 4") .setCategory("Category 5"); //Setting additional product information AdBrixRm.AttrModel productAttr1 = new AdBrixRm.AttrModel() .setAttrs("size", 25) .setAttrs("color", "blue") .setAttrs("vip", false); AdBrixRm.AttrModel productAttr2 = new AdBrixRm.AttrModel() .setAttrs("size", 33) .setAttrs("color", "black") .setAttrs("vip", true); // Additional event information AdBrixRm.AttrModel commmerceAttr = new AdBrixRm.AttrModel() .setAttrs("grade", "vip") .setAttrs("howmany_buy", 36) .setAttrs("discount", true); // Create product information model AdBrixRm.CommerceProductModel productModel_1 = new AdBrixRm.CommerceProductModel().setProductID("5385487400") .setProductName("Special price on 10 types of slacks") .setPrice(10000.00) .setQuantity(1) .setDiscount(1000.00) .setCurrency(AdBrixRm.Currency.KR_KRW) .setCategory(productCategory) .setAttrModel(productAttr1); // Create product information model AdBrixRm.CommerceProductModel productModel_2 = new AdBrixRm.CommerceProductModel().setProductID("145099811") .setProductName("[Carryover Special Price] Printed Sweatshirt") .setPrice(15500.00) .setQuantity(1) .setDiscount(1200.00) .setCurrency(AdBrixRm.Currency.KR_KRW) .setCategory(productCategory) .setAttrModel(productAttr2); // Create product information model ArrayList ArrayList productModelArrayList = new ArrayList<>(); productModelArrayList.add(productModel_1); productModelArrayList.add(productModel_2); // Analyze order confirmation event AdBrixRm.Commerce.reviewOrder("290192012", productModelArrayList, 0.00, 3500.00,commmerceAttr); } catch (JSONException e) { e.printStackTrace(); } }
fun reviewOrderEvent(){ try { // Set product category val productCategory = AdBrixRm.CommerceCategoriesModel() .setCategory("Category 1") .setCategory("Category 2") .setCategory("Category 3") .setCategory("Category 4") .setCategory("Category 5") //Setting additional product information val productAttr1 = AdBrixRm.AttrModel() .setAttrs("size", 25) .setAttrs("color", "blue") .setAttrs("vip", false) val productAttr2 = AdBrixRm.AttrModel() .setAttrs("size", 33) .setAttrs("color", "black") .setAttrs("vip", true) // Additional event information val commerceAttr = AdBrixRm.AttrModel() .setAttrs("grade", "vip") .setAttrs("howmany_buy", 36) .setAttrs("discount", true) //Product information val productModel1 = AdBrixRm.CommerceProductModel() .setProductID("productid_1") .setProductName("Product Name1") .setCategory(productCategory) .setCurrency(AdBrixRm.Currency.KR_KRW) .setDiscount(5000.00) .setAttrModel(productAttr1) .setPrice(50000.00) .setQuantity(1) val productModel2 = AdBrixRm.CommerceProductModel() .setProductID("productid_2") .setProductName("Product Name2") .setCategory(productCategory) .setCurrency(AdBrixRm.Currency.KR_KRW) .setDiscount(10000.00) .setAttrModel(productAttr2) .setPrice(100000.00) .setQuantity(1) // Set product information arrayList val proList = mutableListOf<AdBrixRm.CommerceProductModel>() proList.add(productModel1) proList.add(productModel2) // Analyze order confirmation event AbxCommerce.reviewOrder("orderid_11", proList, 0.00, 2500.00, commerceAttr) } catch (e: Exception) { e.printStackTrace() } }
Cancel order (refund)
Analyze events in which a user canceled an order or issued a refund.
We convey the following product and order information:
API
AdBrixRm.Commerce.refund( String orderId, List <AdBrixRm.CommerceProductModel> productModelList, double penalty charge, AdBrixRm.AttrModel attrModel // Optional );
AdBrixRm.Commerce.refund( String orderId, List <AdBrixRm.CommerceProductModel> productModelList, double penalty charge, AdBrixRm.AttrModel attrModel //Optional )
Sample Code
void refundOrderEvent(){ try { // Set product category AdBrixRm.CommerceCategoriesModel productCategory = new AdBrixRm.CommerceCategoriesModel() .setCategory("Category 1") .setCategory("Category 2") .setCategory("Category 3") .setCategory("Category 4") .setCategory("Category 5"); //Setting additional product information AdBrixRm.AttrModel productAttr1 = new AdBrixRm.AttrModel() .setAttrs("size", 25) .setAttrs("color", "blue") .setAttrs("vip", false); AdBrixRm.AttrModel productAttr2 = new AdBrixRm.AttrModel() .setAttrs("size", 33) .setAttrs("color", "black") .setAttrs("vip", true); // Additional event information AdBrixRm.AttrModel commmerceAttr = new AdBrixRm.AttrModel() .setAttrs("grade", "vip") .setAttrs("howmany_buy", 36) .setAttrs("discount", true); // Create product information model AdBrixRm.CommerceProductModel productModel_1 = new AdBrixRm.CommerceProductModel().setProductID("5385487400") .setProductName("Special price on 10 types of slacks") .setPrice(10000.00) .setQuantity(1) .setDiscount(1000.00) .setCurrency(AdBrixRm.Currency.KR_KRW) .setCategory(productCategory) .setAttrModel(productAttr1); // Create product information model AdBrixRm.CommerceProductModel productModel_2 = new AdBrixRm.CommerceProductModel().setProductID("145099811") .setProductName("[Carryover Special Price] Printed Sweatshirt") .setPrice(15500.00) .setQuantity(1) .setDiscount(1200.00) .setCurrency(AdBrixRm.Currency.KR_KRW) .setCategory(productCategory) .setAttrModel(productAttr2); // Create product information model ArrayList ArrayList productModelArrayList = new ArrayList<>(); productModelArrayList.add(productModel_1); productModelArrayList.add(productModel_2); // Order cancellation (refund) event analysis AdBrixRm.Commerce.refund("290192012", productModelArrayList, 0.00,commmerceAttr); } catch (JSONException e) { e.printStackTrace(); } }
fun refundOrderEvent(){ try { // Set product category val productCategory = AdBrixRm.CommerceCategoriesModel() .setCategory("Category 1") .setCategory("Category 2") .setCategory("Category 3") .setCategory("Category 4") .setCategory("Category 5") //Setting additional product information val productAttr1 = AdBrixRm.AttrModel() .setAttrs("size", 25) .setAttrs("color", "blue") .setAttrs("vip", false) val productAttr2 = AdBrixRm.AttrModel() .setAttrs("size", 33) .setAttrs("color", "black") .setAttrs("vip", true) // Additional event information val commerceAttr = AdBrixRm.AttrModel() .setAttrs("grade", "vip") .setAttrs("howmany_buy", 36) .setAttrs("discount", true) //Product information val productModel1 = AdBrixRm.CommerceProductModel() .setProductID("productid_1") .setProductName("Product Name1") .setCategory(productCategory) .setCurrency(AdBrixRm.Currency.KR_KRW) .setDiscount(5000.00) .setAttrModel(productAttr1) .setPrice(50000.00) .setQuantity(1) val productModel2 = AdBrixRm.CommerceProductModel() .setProductID("productid_2") .setProductName("Product Name2") .setCategory(productCategory) .setCurrency(AdBrixRm.Currency.KR_KRW) .setDiscount(10000.00) .setAttrModel(productAttr2) .setPrice(100000.00) .setQuantity(1) // Set product information arrayList val proList = mutableListOf<AdBrixRm.CommerceProductModel>() proList.add(productModel1) proList.add(productModel2) // Order cancellation (refund) event analysis AbxCommerce.refund("orderid_22", proList, 19000.00, commerceAttr) } catch (e: Exception) { e.printStackTrace() } }
Search for products
Analyze events in which users search for products.
We deliver product information included in the following search results.
API
AdBrixRm.Commerce.search( String searchKeyword, List <AdBrixRm.CommerceProductModel> productModelList, AdBrixRm.AttrModel attrModel // Optional );
AdBrixRm.Commerce.search( String searchKeyword, List <AdBrixRm.CommerceProductModel> productModelList, AdBrixRm.AttrModel attrModel //Optional )
Sample Code
void searchProductEvent(){ // Set product category AdBrixRm.CommerceCategoriesModel productCategory = new AdBrixRm.CommerceCategoriesModel() .setCategory("Category 1") .setCategory("Category 2") .setCategory("Category 3") .setCategory("Category 4") .setCategory("Category 5"); //Setting additional product information AdBrixRm.AttrModel productAttr1 = new AdBrixRm.AttrModel() .setAttrs("size", 25) .setAttrs("color", "blue") .setAttrs("vip", false); AdBrixRm.AttrModel productAttr2 = new AdBrixRm.AttrModel() .setAttrs("size", 33) .setAttrs("color", "black") .setAttrs("vip", true); // Additional event information AdBrixRm.AttrModel commmerceAttr = new AdBrixRm.AttrModel() .setAttrs("grade", "vip") .setAttrs("howmany_buy", 36) .setAttrs("discount", true); // Create product information model AdBrixRm.CommerceProductModel productModel_1 = new AdBrixRm.CommerceProductModel().setProductID("5385487400") .setProductName("Special price on 10 types of slacks") .setPrice(10000.00) .setQuantity(1) .setDiscount(1000.00) .setCurrency(AdBrixRm.Currency.KR_KRW) .setCategory(productCategory) .setAttrModel(productAttr1); // Create product information model AdBrixRm.CommerceProductModel productModel_2 = new AdBrixRm.CommerceProductModel().setProductID("145099811") .setProductName("[Carryover Special Price] Printed Sweatshirt") .setPrice(15500.00) .setQuantity(1) .setDiscount(1200.00) .setCurrency(AdBrixRm.Currency.KR_KRW) .setCategory(productCategory) .setAttrModel(productAttr2); // Create product information model ArrayList ArrayList productModelArrayList = new ArrayList<>(); productModelArrayList.add(productModel_1); productModelArrayList.add(productModel_2); // Product search event analysis AdBrixRm.Commerce.search("Casual Pants", productModelArrayList,commmerceAttr); }
fun searchProductEvent(){ // Set product category val productCategory = AdBrixRm.CommerceCategoriesModel() .setCategory("Category 1") .setCategory("Category 2") .setCategory("Category 3") .setCategory("Category 4") .setCategory("Category 5") //Setting additional product information val productAttr1 = AdBrixRm.AttrModel() .setAttrs("size", 25) .setAttrs("color", "blue") .setAttrs("vip", false) val productAttr2 = AdBrixRm.AttrModel() .setAttrs("size", 33) .setAttrs("color", "black") .setAttrs("vip", true) // Additional event information val commerceAttr = AdBrixRm.AttrModel() .setAttrs("grade", "vip") .setAttrs("howmany_buy", 36) .setAttrs("discount", true) //Product information val productModel1 = AdBrixRm.CommerceProductModel() .setProductID("productid_1") .setProductName("Product Name1") .setCategory(productCategory) .setCurrency(AdBrixRm.Currency.KR_KRW) .setDiscount(5000.00) .setAttrModel(productAttr1) .setPrice(50000.00) .setQuantity(1) val productModel2 = AdBrixRm.CommerceProductModel() .setProductID("productid_2") .setProductName("Product Name2") .setCategory(productCategory) .setCurrency(AdBrixRm.Currency.KR_KRW) .setDiscount(10000.00) .setAttrModel(productAttr2) .setPrice(100000.00) .setQuantity(1) // Set product information arrayList val proList = mutableListOf<AdBrixRm.CommerceProductModel>() proList.add(productModel1) proList.add(productModel2) // Product search event analysis AbxCommerce.search("Search term", proList, commerceAttr) }
Share product
Analyze events in which users share product information.
We communicate shared product information such as:
API
AdBrixRm.Commerce.share( AdBrixRm.CommerceSharingChannel SharingChannel, AdBrixRm.CommerceProductModel productModel; AdBrixRm.AttrModel attrModel // Optional );
AdBrixRm.Commerce.share( AdBrixRm.CommerceSharingChannel SharingChannel, AdBrixRm.CommerceProductModel productModel; AdBrixRm.AttrModel attrModel //Optional )
Sample Code
void shareProductEvent(){ // Set product category AdBrixRm.CommerceCategoriesModel productCategory = new AdBrixRm.CommerceCategoriesModel() .setCategory("Category 1") .setCategory("Category 2") .setCategory("Category 3") .setCategory("Category 4") .setCategory("Category 5"); //Setting additional product information AdBrixRm.AttrModel productAttr1 = new AdBrixRm.AttrModel() .setAttrs("size", 25) .setAttrs("color", "blue") .setAttrs("vip", false); // Additional event information AdBrixRm.AttrModel commmerceAttr = new AdBrixRm.AttrModel() .setAttrs("grade", "vip") .setAttrs("howmany_buy", 36) .setAttrs("discount", true); // Create product information model AdBrixRm.CommerceProductModel productModel_1 = new AdBrixRm.CommerceProductModel().setProductID("5385487400") .setProductName("Special price on 10 types of slacks") .setPrice(10000.00) .setQuantity(1) .setDiscount(1000.00) .setCurrency(AdBrixRm.Currency.KR_KRW) .setCategory(productCategory) .setAttrModel(productAttr1); // Analyze product information sharing event AdBrixRm.Commerce.share(AdBrixRm.CommerceSharingChannel.KakaoTalk, productModel_1, commmerceAttr); }
fun shareProductEvent(){ // Set product category val productCategory = AdBrixRm.CommerceCategoriesModel() .setCategory("Category 1") .setCategory("Category 2") .setCategory("Category 3") .setCategory("Category 4") .setCategory("Category 5") //Setting additional product information val productAttr1 = AdBrixRm.AttrModel() .setAttrs("size", 25) .setAttrs("color", "blue") .setAttrs("vip", false) // Additional event information val commerceAttr = AdBrixRm.AttrModel() .setAttrs("grade", "vip") .setAttrs("howmany_buy", 36) .setAttrs("discount", true) //Product information val productModel1 = AdBrixRm.CommerceProductModel() .setProductID("productid_1") .setProductName("Product Name1") .setCategory(productCategory) .setCurrency(AdBrixRm.Currency.KR_KRW) .setDiscount(5000.00) .setAttrModel(productAttr1) .setPrice(50000.00) .setQuantity(1) // Analyze product information sharing event AbxCommerce.share(AdBrixRm.CommerceSharingChannel.KakaoStory, productModel1, commerceAttr) }
API (when applying multiple ProductModels)
[[인용:보통:위험]] This API applies from Android SDK 2.4.0.0.
AdBrixRm.Commerce.share( AdBrixRm.CommerceSharingChannel SharingChannel, List <AdBrixRm.CommerceProductModel> productModelList, AdBrixRm.AttrModel attrModel // Optional );
AdBrixRm.Commerce.share( AdBrixRm.CommerceSharingChannel SharingChannel, List <AdBrixRm.CommerceProductModel> productModelList, AdBrixRm.AttrModel attrModel //Optional )
Sample Code
void addToWishListEvent(){ try { // Set product category AdBrixRm.CommerceCategoriesModel productCategory = new AdBrixRm.CommerceCategoriesModel() .setCategory("Category 1") .setCategory("Category 2") .setCategory("Category 3") .setCategory("Category 4") .setCategory("Category 5"); //Setting additional product information AdBrixRm.AttrModel productAttr1 = new AdBrixRm.AttrModel() .setAttrs("size", 25) .setAttrs("color", "blue") .setAttrs("vip", false); AdBrixRm.AttrModel productAttr2 = new AdBrixRm.AttrModel() .setAttrs("size", 33) .setAttrs("color", "black") .setAttrs("vip", true); // Additional event information AdBrixRm.AttrModel commmerceAttr = new AdBrixRm.AttrModel() .setAttrs("grade", "vip") .setAttrs("howmany_buy", 36) .setAttrs("discount", true); // Create product information model AdBrixRm.CommerceProductModel productModel_1 = new AdBrixRm.CommerceProductModel().setProductID("5385487400") .setProductName("Special price on 10 types of slacks") .setPrice(10000.00) .setQuantity(1) .setDiscount(1000.00) .setCurrency(AdBrixRm.Currency.KR_KRW) .setCategory(productCategory) .setAttrModel(productAttr1); // Create product information model AdBrixRm.CommerceProductModel productModel_2 = new AdBrixRm.CommerceProductModel().setProductID("145099811") .setProductName("[Carryover Special Price] Printed Sweatshirt") .setPrice(15500.00) .setQuantity(1) .setDiscount(1200.00) .setCurrency(AdBrixRm.Currency.KR_KRW) .setCategory(productCategory) .setAttrModel(productAttr2); // Create product information model ArrayList ArrayList productModelArrayList = new ArrayList<>(); productModelArrayList.add(productModel_1); productModelArrayList.add(productModel_2); // share event analysis AdBrixRm.Commerce.share(AdBrixRm.CommerceSharingChannel.KakaoTalk, productModelArrayList, commmerceAttr); }catch (JSONException e){ e.printStackTrace(); } }
fun addToWishListEvent(){ try { // Set product category val productCategory = AdBrixRm.CommerceCategoriesModel() .setCategory("Category 1") .setCategory("Category 2") .setCategory("Category 3") .setCategory("Category 4") .setCategory("Category 5") //Setting additional product information val productAttr1 = AdBrixRm.AttrModel() .setAttrs("size", 25) .setAttrs("color", "blue") .setAttrs("vip", false) val productAttr2 = AdBrixRm.AttrModel() .setAttrs("size", 33) .setAttrs("color", "black") .setAttrs("vip", true) // Additional event information val commerceAttr = AdBrixRm.AttrModel() .setAttrs("grade", "vip") .setAttrs("howmany_buy", 36) .setAttrs("discount", true) //Product information val productModel1 = AdBrixRm.CommerceProductModel() .setProductID("productid_1") .setProductName("Product Name1") .setCategory(productCategory) .setCurrency(AdBrixRm.Currency.KR_KRW) .setDiscount(5000.00) .setAttrModel(productAttr1) .setPrice(50000.00) .setQuantity(1) val productModel2 = AdBrixRm.CommerceProductModel() .setProductID("productid_2") .setProductName("Product Name2") .setCategory(productCategory) .setCurrency(AdBrixRm.Currency.KR_KRW) .setDiscount(10000.00) .setAttrModel(productAttr2) .setPrice(100000.00) .setQuantity(1) // Set product information arrayList val proList = mutableListOf<AdBrixRm.CommerceProductModel>() proList.add(productModel1) proList.add(productModel2) //call share api AbxCommerce.share(AdBrixRm.CommerceSharingChannel.KakaoStory, proList, commerceAttr) } catch (e: Exception) { e.printStackTrace() } }
View product list
Analyze events in which users view product lists.
We deliver the following product information you have viewed.
API
AdBrixRm.Commerce.listView( List <AdBrixRm.CommerceProductModel> productModelList, AdBrixRm.AttrModel attrModel // Optional );
AdBrixRm.Commerce.listView( List <AdBrixRm.CommerceProductModel> productModelList, AdBrixRm.AttrModel attrModel //Optional )
Sample Code
void listViewProductsEvent(){ // Set product category AdBrixRm.CommerceCategoriesModel productCategory = new AdBrixRm.CommerceCategoriesModel() .setCategory("Category 1") .setCategory("Category 2") .setCategory("Category 3") .setCategory("Category 4") .setCategory("Category 5"); //Setting additional product information AdBrixRm.AttrModel productAttr1 = new AdBrixRm.AttrModel() .setAttrs("size", 25) .setAttrs("color", "blue") .setAttrs("vip", false); AdBrixRm.AttrModel productAttr2 = new AdBrixRm.AttrModel() .setAttrs("size", 33) .setAttrs("color", "black") .setAttrs("vip", true); // Additional event information AdBrixRm.AttrModel commmerceAttr = new AdBrixRm.AttrModel() .setAttrs("grade", "vip") .setAttrs("howmany_buy", 36) .setAttrs("discount", true); // Create product information model AdBrixRm.CommerceProductModel productModel_1 = new AdBrixRm.CommerceProductModel().setProductID("5385487400") .setProductName("Special price on 10 types of slacks") .setPrice(10000.00) .setQuantity(1) .setDiscount(1000.00) .setCurrency(AdBrixRm.Currency.KR_KRW) .setCategory(productCategory) .setAttrModel(productAttr1); // Create product information model AdBrixRm.CommerceProductModel productModel_2 = new AdBrixRm.CommerceProductModel().setProductID("145099811") .setProductName("[Carryover Special Price] Printed Sweatshirt") .setPrice(15500.00) .setQuantity(1) .setDiscount(1200.00) .setCurrency(AdBrixRm.Currency.KR_KRW) .setCategory(productCategory) .setAttrModel(productAttr2); // Create product information model ArrayList ArrayList productModelArrayList = new ArrayList<>(); productModelArrayList.add(productModel_1); productModelArrayList.add(productModel_2); //Analysis of product list search event AdBrixRm.Commerce.listView(productModelArrayList,commmerceAttr); }
fun listViewProductsEvent(){ // Set product category val productCategory = AdBrixRm.CommerceCategoriesModel() .setCategory("Category 1") .setCategory("Category 2") .setCategory("Category 3") .setCategory("Category 4") .setCategory("Category 5") //Setting additional product information val productAttr1 = AdBrixRm.AttrModel() .setAttrs("size", 25) .setAttrs("color", "blue") .setAttrs("vip", false) val productAttr2 = AdBrixRm.AttrModel() .setAttrs("size", 33) .setAttrs("color", "black") .setAttrs("vip", true) // Additional event information val commerceAttr = AdBrixRm.AttrModel() .setAttrs("grade", "vip") .setAttrs("howmany_buy", 36) .setAttrs("discount", true) //Product information val productModel1 = AdBrixRm.CommerceProductModel() .setProductID("productid_1") .setProductName("Product Name1") .setCategory(productCategory) .setCurrency(AdBrixRm.Currency.KR_KRW) .setDiscount(5000.00) .setAttrModel(productAttr1) .setPrice(50000.00) .setQuantity(1) val productModel2 = AdBrixRm.CommerceProductModel() .setProductID("productid_2") .setProductName("Product Name2") .setCategory(productCategory) .setCurrency(AdBrixRm.Currency.KR_KRW) .setDiscount(10000.00) .setAttrModel(productAttr2) .setPrice(100000.00) .setQuantity(1) // Set product information arrayList val proList = mutableListOf<AdBrixRm.CommerceProductModel>() proList.add(productModel1) proList.add(productModel2) //Analysis of product list search event AbxCommerce.listView(proList, commerceAttr) }
View shopping cart
Analyze events in which users view their shopping carts.
We deliver the following product information you have viewed.
API
AdBrixRm.Commerce.cartView( List <AdBrixRm.CommerceProductModel> productModelList, AdBrixRm.AttrModel attrModel // Optional );
AdBrixRm.Commerce.cartView( List <AdBrixRm.CommerceProductModel> productModelList, AdBrixRm.AttrModel attrModel //Optional )
Sample Code
void cartViewProductsEvent(){ // Set product category AdBrixRm.CommerceCategoriesModel productCategory = new AdBrixRm.CommerceCategoriesModel() .setCategory("Category 1") .setCategory("Category 2") .setCategory("Category 3") .setCategory("Category 4") .setCategory("Category 5"); //Setting additional product information AdBrixRm.AttrModel productAttr1 = new AdBrixRm.AttrModel() .setAttrs("size", 25) .setAttrs("color", "blue") .setAttrs("vip", false); AdBrixRm.AttrModel productAttr2 = new AdBrixRm.AttrModel() .setAttrs("size", 33) .setAttrs("color", "black") .setAttrs("vip", true); // Additional event information AdBrixRm.AttrModel commmerceAttr = new AdBrixRm.AttrModel() .setAttrs("grade", "vip") .setAttrs("howmany_buy", 36) .setAttrs("discount", true); // Create product information model AdBrixRm.CommerceProductModel productModel_1 = new AdBrixRm.CommerceProductModel().setProductID("5385487400") .setProductName("Special price on 10 types of slacks") .setPrice(10000.00) .setQuantity(1) .setDiscount(1000.00) .setCurrency(AdBrixRm.Currency.KR_KRW) .setCategory(productCategory) .setAttrModel(productAttr1); // Create product information model AdBrixRm.CommerceProductModel productModel_2 = new AdBrixRm.CommerceProductModel().setProductID("145099811") .setProductName("[Carryover Special Price] Printed Sweatshirt") .setPrice(15500.00) .setQuantity(1) .setDiscount(1200.00) .setCurrency(AdBrixRm.Currency.KR_KRW) .setCategory(productCategory) .setAttrModel(productAttr2); // Create product information model ArrayList ArrayList productModelArrayList = new ArrayList<>(); productModelArrayList.add(productModel_1); productModelArrayList.add(productModel_2); //Analysis of shopping cart view event AdBrixRm.Commerce.cartView(productModelArrayList,commmerceAttr); }
fun cartViewProductsEvent(){ // Set product category val productCategory = AdBrixRm.CommerceCategoriesModel() .setCategory("Category 1") .setCategory("Category 2") .setCategory("Category 3") .setCategory("Category 4") .setCategory("Category 5") //Setting additional product information val productAttr1 = AdBrixRm.AttrModel() .setAttrs("size", 25) .setAttrs("color", "blue") .setAttrs("vip", false) val productAttr2 = AdBrixRm.AttrModel() .setAttrs("size", 33) .setAttrs("color", "black") .setAttrs("vip", true) // Additional event information val commerceAttr = AdBrixRm.AttrModel() .setAttrs("grade", "vip") .setAttrs("howmany_buy", 36) .setAttrs("discount", true) //Product information val productModel1 = AdBrixRm.CommerceProductModel() .setProductID("productid_1") .setProductName("Product Name1") .setCategory(productCategory) .setCurrency(AdBrixRm.Currency.KR_KRW) .setDiscount(5000.00) .setAttrModel(productAttr1) .setPrice(50000.00) .setQuantity(1) val productModel2 = AdBrixRm.CommerceProductModel() .setProductID("productid_2") .setProductName("Product Name2") .setCategory(productCategory) .setCurrency(AdBrixRm.Currency.KR_KRW) .setDiscount(10000.00) .setAttrModel(productAttr2) .setPrice(100000.00) .setQuantity(1) // Set product information arrayList val proList = mutableListOf<AdBrixRm.CommerceProductModel>() proList.add(productModel1) proList.add(productModel2) //Analysis of shopping cart view event AbxCommerce.cartView(proList, commerceAttr) }
Enter payment information
Analyze events where users enter payment information.
API
AdBrixRm.Commerce.paymentInfoAdded(AdBrixRm.AttrModel attrModel);
AdBrixRm.Commerce.paymentInfoAdded(AdBrixRm.AttrModel attrModel)
Sample Code
void paymentInfoAddedEvent(){ AdBrixRm.AttrModel commmerceAttr = new AdBrixRm.AttrModel() .setAttrs("grade", "vip") .setAttrs("card", "kbcard") .setAttrs("discount", true); //Payment information input event AdBrixRm.Commerce.paymentInfoAdded(commmerceAttr); }
fun paymentInfoAddedEvent(){ //Payment information input event val commerceAttr = AdBrixRm.AttrModel() .setAttrs("grade", "vip") .setAttrs("card","kcard") .setAttrs("discount", true) AbxCommerce.paymentInfoAdded(commerceAttr) }
Game event analysis
Analyze game-related events (tutorials, stages, etc.) that occur in the app.
The types of game events provided by DFINERY (Adbrix) are as follows.
- Tutorial completed
- character generation
- Stage completed
- Level achieved
Tutorial completed
Analyze tutorial completion events that occur in the app.
The following tutorial completion information is passed by configuring the value of GameProperies.TutorialComplete.
API
AdBrixRm.Game.tutorialComplete(AdBrixRm.GameProperties.TutorialComplete gameProperties);
AdBrixRm.Game.tutorialComplete(AdBrixRm.GameProperties.TutorialComplete gameProperties)
Sample Code
void tutorialCompleteEvent(){ AdBrixRm.AttrModel gameAttr = new AdBrixRm.AttrModel() .setAttrs("grade", "vip") .setAttrs("level", 36) .setAttrs("google_vip", true); AdBrixRm.GameProperties.TutorialComplete gameProperties = new AdBrixRm.GameProperties.TutorialComplete() .setIsSkip(true) .setAttrModel(gameAttr); //Call tutorial completion event AdBrixRm.Game.tutorialComplete(gameProperties); }
fun tutorialCompleteEvent(){ val gameAttr = AdBrixRm.AttrModel() .setAttrs("grade", "vip") .setAttrs("level", 36) .setAttrs("google_vip", true) val tutorialProperties = AdBrixRm.GameProperties.TutorialComplete() .setIsSkip(false) .setAttrModel(gameAttr) //Call tutorial completion event AbxGame.tutorialComplete(tutorialProperties) }
character generation
Analyze character creation events that occurred in the app.
The following character creation information is passed by configuring the value of GameProperies.CharacterCreated.
API
AdBrixRm.Game.characterCreated(AdBrixRm.GameProperties.CharacterCreated gameProperties);
AdBrixRm.Game.characterCreated(AdBrixRm.GameProperties.CharacterCreated gameProperties)
Sample Code
void characterCreatedEvent(){ AdBrixRm.AttrModel gameAttr = new AdBrixRm.AttrModel() .setAttrs("grade", "vip") .setAttrs("level", 36) .setAttrs("google_vip", true); AdBrixRm.GameProperties.CharacterCreated gameProperties = new AdBrixRm.GameProperties.CharacterCreated() .setAttrModel(gameAttr); //Call character creation event AdBrixRm.Game.characterCreated(gameProperties); }
fun characterCreatedEvent(){ val gameAttr = AdBrixRm.AttrModel() .setAttrs("grade", "vip") .setAttrs("level", 36) .setAttrs("google_vip", true) val characterProperties = AdBrixRm.GameProperties.CharacterCreated() .setAttrModel(gameAttr) //Call character creation event AbxGame.characterCreated(characterProperties) }
Stage completed
Analyze stage completion events that occur in the app.
The following stage completion information is passed by configuring the value of GameProperies.StageCleared.
API
AdBrixRm.Game.stageCleared(AdBrixRm.GameProperties.StageCleared gameProperties);
AdBrixRm.Game.stageCleared(AdBrixRm.GameProperties.StageCleared gameProperties)
Sample Code
void stageClearedEvent(){ AdBrixRm.AttrModel gameAttr = new AdBrixRm.AttrModel() .setAttrs("grade", "vip") .setAttrs("level", 36) .setAttrs("google_vip", true); AdBrixRm.GameProperties.StageClearedgameProperties = new AdBrixRm.GameProperties.StageCleared() .setStageName("1-1") .setAttrModel(gameAttr); //Call stage completion completion event AdBrixRm.Game.stageCleared(gameProperties); }
fun stageClearedEvent(){ val gameAttr = AdBrixRm.AttrModel() .setAttrs("grade", "vip") .setAttrs("level", 36) .setAttrs("google_vip", true) val stageProperties = AdBrixRm.GameProperties.StageCleared() .setStageName("stage111") .setAttrModel(gameAttr) AbxGame.stageCleared(stageProperties) }
Level achieved
Analyze level achievement events that occurred in the app.
The following level achievement information is passed by configuring the value of GameProperies.LevelAchieved.
API
AdBrixRm.Game.levelAchieved(AdBrixRm.GameProperties.LevelAchieved gameProperties);
AdBrixRm.Game.levelAchieved(AdBrixRm.GameProperties.LevelAchieved gameProperties)
Sample Code
void levelAchievedEvent(){ AdBrixRm.AttrModel gameAttr = new AdBrixRm.AttrModel() .setAttrs("grade", "vip") .setAttrs("level", 36) .setAttrs("google_vip", true); AdBrixRm.GameProperties.LevelAchievedgameProperties = new AdBrixRm.GameProperties.LevelAchieved() .setLevel(1) .setAttrModel(gameAttr); //Call level achievement event AdBrixRm.Game.levelAchieved(gameProperties); }
fun levelAchievedEvent(){ val gameAttr = AdBrixRm.AttrModel() .setAttrs("grade", "vip") .setAttrs("level", 36) .setAttrs("google_vip", true) val levelProperties = AdBrixRm.GameProperties.LevelAchieved() .setLevel(12) .setAttrModel(gameAttr) //Call level achievement event AbxGame.levelAchieved(levelProperties) }
