Configuring Growth Action Push UI Directly [iOS]
Follow
Getting Started
This guide provides instructions for directly configuring the growth action push UI.
Push Basic Integration and Setup
Before configuring the push UI directly, the basic integration and settings for sending push notifications must be completed.
Please proceed with the basic integration and setup by referring to the guide below.
[[Quote: Guide: Normal]]
Unless you configure the push UI yourself!!!
If you would like to use the template provided by DFINERY without configuring the Push UI yourself, please refer to the guide in the link above rather than this guide.
Parsing push data
You can obtain a modeled defined push payload by passing the push payload received through the push receiver configured in the app to the SDKs parsePushData API.
ParsePushData API
This API inspects the delivered payload and returns data converted to AdBrixRm.AbxRemotePushModel.
The sample code below shows how to obtain a growth action push payload using the ParsePushData API within Firebases push reception receiver function.
do {
let abxRemotePushModel = try AdBrixRM.getInstance.parsePushData(userInfo)
print("ParsePushData :: \\(abxRemotePushModel.toString())")
} catch {
print(error)
}
[[Quote:Guide:General]]
Please refer to this!
If the payload passed to the API is not a push from the DFINERY, a JSON exception is raised.

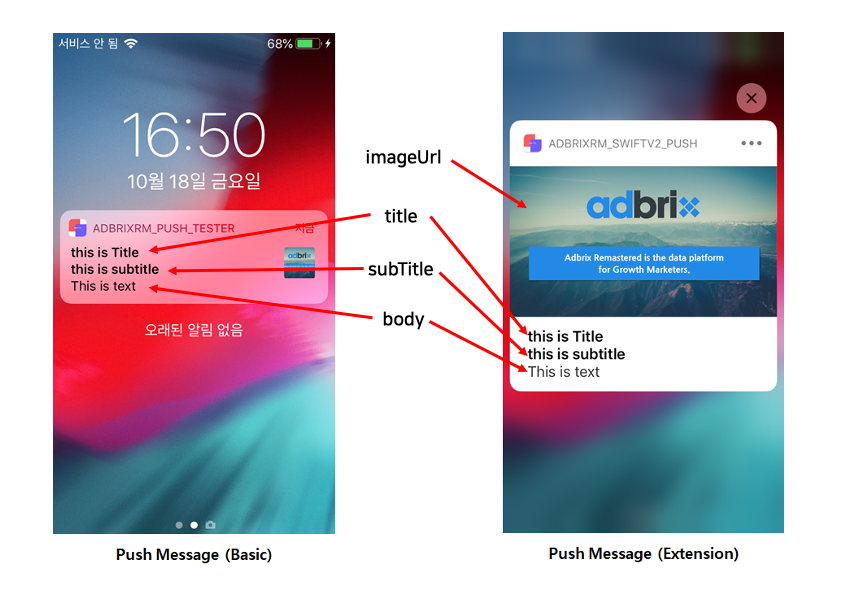

Push Payload Model Definition
The items of the push payload model are as follows.
Item | explanation | Note |
---|---|---|
제목 | This is the title of the push. | |
subTitle | This is the subtitle of the push. | |
body | This is the content of the push message. | |
imageUrl | This is the image URL of the push. | |
genVibe | This is whether to set vibration when receiving a push. | |
genSound | This is whether the sound is set when receiving a push. | |
campaignId | This is the Growth Action Push Campaign ID. | For push open tracking |
campaignRevisionNo | This is the revision number of the growth scenario. | For push open tracking |
stepId | This is the step ID of the growth scenario. | For push open tracking |
cycleTime | This is the cycle time of the growth scenario. | For push open tracking |
deeplinkUrl | This is the deep link URL set in the push campaign. |
Push payload model sample
This is sample data for the push payload model.You can use the following data to pre-configure the look and feel.
AbxRemotePushModel{
title='default-title',
body='default-body',
subTitle='default-subtitle',
imageUrl='https://c.files.bbci.co.uk/12A9B/production/_111434467_gettyimages-1143489763.jpg',
campaignId='12345',
campaignRevisionNo=2,
stepId='b2',
cycleTime='2019092008',
deeplinkUrl='scheme://host?key=value'
}
Push Open Event Analysis
If you configure the push UI yourself, you must forward the push open event to the DFINERY.
At the moment the user clicks the push, the openPush API is called as follows.
override open func didReceive(_ request: UNNotificationRequest, withContentHandler contentHandler: @escaping (UNNotificationContent) -> Void){
let userInfo = response.notification.request.content.userInfo
do {
let trackPushModel = try AdBrixRM.getInstance.parsePushData(userInfo)
AdBrixRM.getInstance.openPush(trackPushModel)
} catch {
print(error)
}
}
[[Quote:Risk:Moderate]]
Be Careful!!!
If the openPush API is not properly integrated, you may not be able to check reports such as push open rates.
